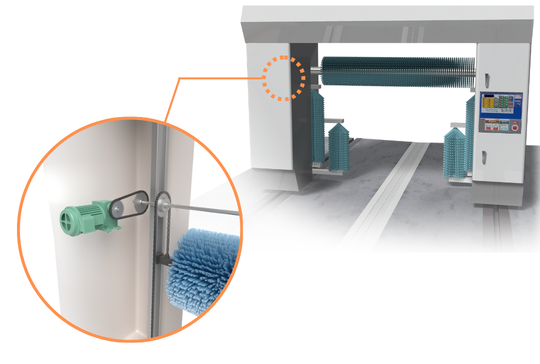

Chemical-resistant and waterproof worm gear reducer for car wash brush lifting mechanism, ensuring stability and quiet operation.
Croise Motor CSMA/CSMR/HCMA/HCMR series
overview
Car wash machines operate in close proximity to users and workers, so low-noise operation is required. Furthermore, because they are in an environment where detergents, waxes, and water are scattered, the motors must also be chemically resistant and waterproof.
By adopting a combination of chemical-resistant and waterproof specifications for Croise Motor, quiet operation is achieved while ensuring durability even in the harsh operating environment of car wash machines.
It supports the stable operation of the equipment.
Problem
Because car wash machines operate close to users and workers, quiet operation with reduced noise during operation is required.
Furthermore, because the area around the equipment is prone to splashes of cleaning agents, waxes, and water, there are concerns about paint deterioration due to chemicals and malfunctions due to water ingress in standard indoor motors.
The challenge was selecting a motor that could withstand the harsh operating conditions of car wash machines while also possessing low noise, chemical resistance, and waterproofing.
Adopted products
Croise Motor CSMA/CSMR/HCMA/HCMR Series
A compact, lightweight, quietly operating right-angle shaft worm reducer with motor.
Croise Motor uses a worm gear, has right-angle shaft and high reduction ratio, and achieves space saving in the equipment layout.
The output shaft can be selected from hollow or solid types.
Because it uses a worm gear, it operates much more smoothly and quietly compared to other gear mechanisms.
In addition, the brake is a silent type, so there is no harsh metallic sound when suctioning.
Our lineup includes three-phase motor capacities from 0.1kW to 5.5kW, and reduction ratios from 1/10 to 1/300.
*This case study showcases the use of a specially designed product. Please contact us for details on available specifications and conditions.
Benefits of adopting the product
Because Croise Motor operates with low noise, it enables comfortable operation even in environments where workers or users are nearby.
Furthermore, by combining chemical-resistant and waterproof specifications, durability is ensured while reducing the risk of deterioration due to chemicals and water ingress, even in environments where cleaning agents, waxes, and water are splashed.
Even in the operating environment of car wash machines, we have achieved stable equipment operation that combines quietness and durability.
Tsubaki will do its utmost to support you in solving any problems you may have.
Please feel free to contact us with any concerns you may have.
