Eliminates grease leakage from couplings and prevents contamination of workpieces
ATRAFLEX
overview
As the workpiece is located near the gear coupling in use, there was a risk of defective products being produced due to oil and grease.
By replacing the coupling with ATRAFLEX, lubrication is no longer necessary, eliminating the risk of defective products. Furthermore, the resin insert absorbs vibrations, reducing the load on other parts and extending their lifespan.
Problem
During maintenance of gear couplings, there was a risk of defective products being produced if lubricating grease leaked and oil adhered to the workpiece.
In addition, metal couplings do not absorb vibrations well, so vibrations from the driven and driving machines are transmitted to other parts such as bearings, shortening the lifespan of those parts.
Adopted products

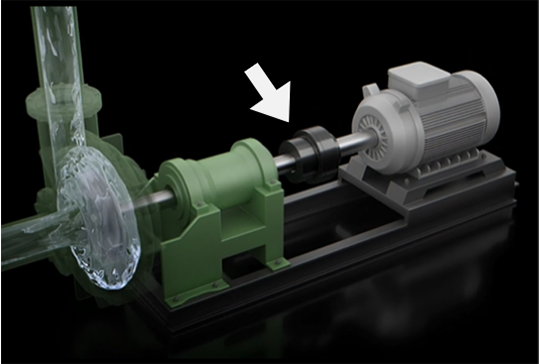

ATRAFLEX Coupling AFT Series
A wrap-around type coupling that uses a resin insert.
The insert can be easily replaced by splitting the notched insert.
The structure prevents metal from sliding against metal, so no lubrication is required and it can be used without replacing the hub.
It is compatible with large torque (up to 29380N・m) and shaft hole diameter (up to 184mm), making it ideal for use in medium to large equipment.
Benefits of adopting the product
By replacing it with ATRAFLEX, which has a structure where there is no sliding between metals, lubrication is no longer necessary, and there is no longer any need to worry about defective products due to oil or grease leaks.
In addition, the use of a resin insert absorbs vibrations and shocks better than metal couplings, reducing the burden on bearings and other components.
Tsubaki will do its utmost to support you in solving any problems you may have.
Please feel free to contact us with any concerns you may have.
Click here for details on the adopted products
Click here for consultation
Solution Case Study in the same industry
-
Eliminated derailment and stoppages under dusty conditions. Stable operation with TKHP-R.
ProblemLong travel length, maintenanceIndustryPaper, cement, woodworkingPurposeSupport and guideproductCable Carrier (CABLEVEYOR) -
Replacing jig-attached chains in overseas-made equipment reduces costs and man-hours
ProblemothersIndustryPaper, cement, woodworkingPurposeTransportproductSmall size conveyor chain -
The use of abrasion-resistant, specially hardened chains improves the lifespan of conveyor chains on wood processing lines
ProblemMaintenance, lifespanIndustryPaper, cement, woodworkingPurposeTransportproductSmall size conveyor chain -
Improved corrosion resistance of the coupling that connects the cooling tower fan and motor
ProblemcorrosionIndustryPaper, cement, woodworkingPurposeConnectproductCoupling -
The hydraulic jack has been electrified to stabilize the rod's forward movement.
ProblemQuit air/hydraulicIndustryPaper, cement, woodworkingPurposeMove linearlyproductLinear Actuator
Solution Case Study for the same problem
-
Replacement of gear coupling reduces maintenance man-hours by 95%
ProblemReduced labor costs and maintenanceIndustryWater Treatment/PumpsPurposeConnectproductCoupling -
The use of abrasion-resistant, specially hardened chains improves the lifespan of conveyor chains on wood processing lines
ProblemMaintenance, lifespanIndustryPaper, cement, woodworkingPurposeTransportproductSmall size conveyor chain -
Stabilizes hopper opening and closing by preventing sticking of the sliding part of the electric cylinder
ProblemMaintenance, Quit air/hydraulicIndustryenvironmentPurposeMove linearlyproductLinear Actuator -
Electric hydraulic cylinders reduce maintenance and energy consumption, and ensure stable operation even in the high-temperature environments of steelmaking equipment.
ProblemQuit air/hydraulic, lifeIndustrySteel and non-ferrous metalsPurposeMove linearlyproductLinear Actuator -
Replacing belt conveyors extends life and prevents conveyed goods from slipping.
ProblemReduced labor costs and maintenanceIndustryAutomotive industryPurposeTransportproductPlastic modular chain -
A conveyor is installed on top of the AGV to automate transfer and make maintenance easier.
ProblemMaintenance, automationIndustryRobots, AGVs, and industrial vehiclesPurposeTransportproductPlastic modular chain -

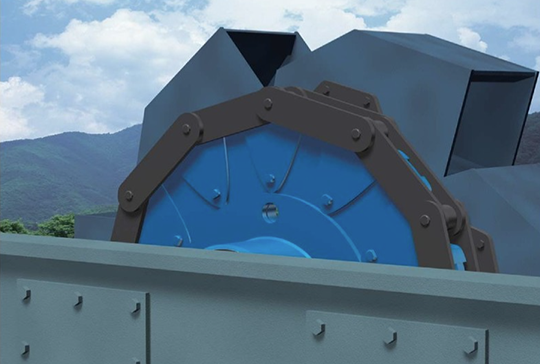

Special sprocket design proposals extend life and reduce replacement man-hours
