Feeder

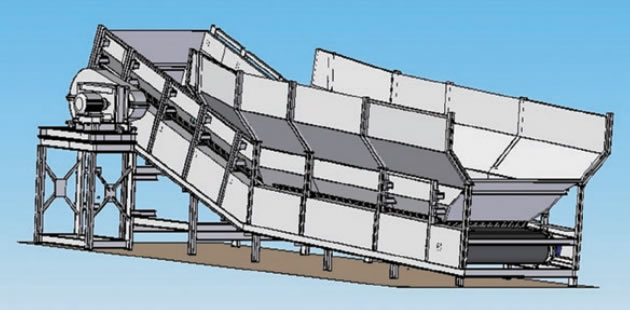

Tsubaki BSF Feeder

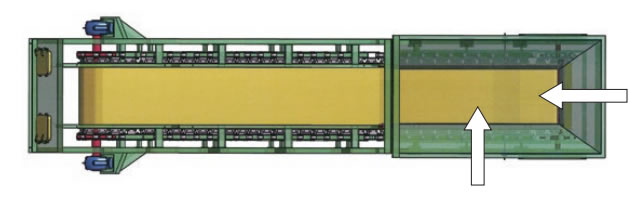

It can be inserted from either side.

The Tsubaki BSF feeder is a robust and simple feeder that utilizes the advantages of both belt conveyors and conveyor chains to directly receive and stably supply raw materials.

Main Features

1. The receiving height is low, so a pit is not required.
2. It is economical because a spillage conveyor is not required.
3. This single unit can handle everything from loading to inclined transport.
4. Because it combines a conveyor chain and slat plates with Synchronous Belt belt, it is easier to maintain and more durable than a belt feeder.
5. Because it is driven by a conveyor chain, it does not slip and the tension can be easily adjusted.

capacity

95m³ - 690m³

Reclaimer

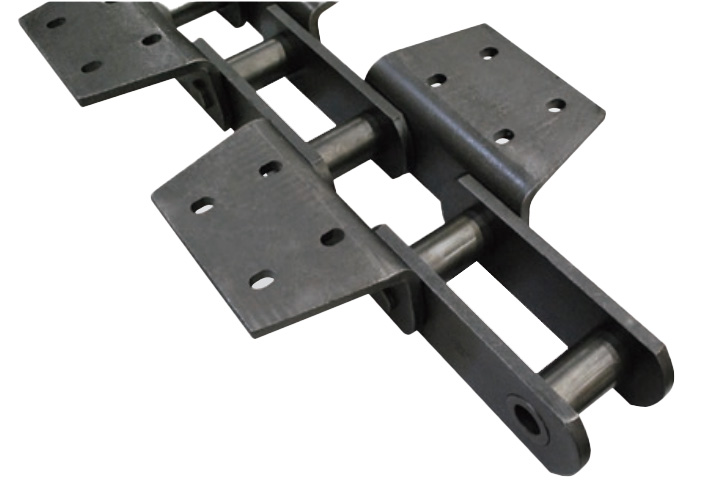

Reclaimer Chain

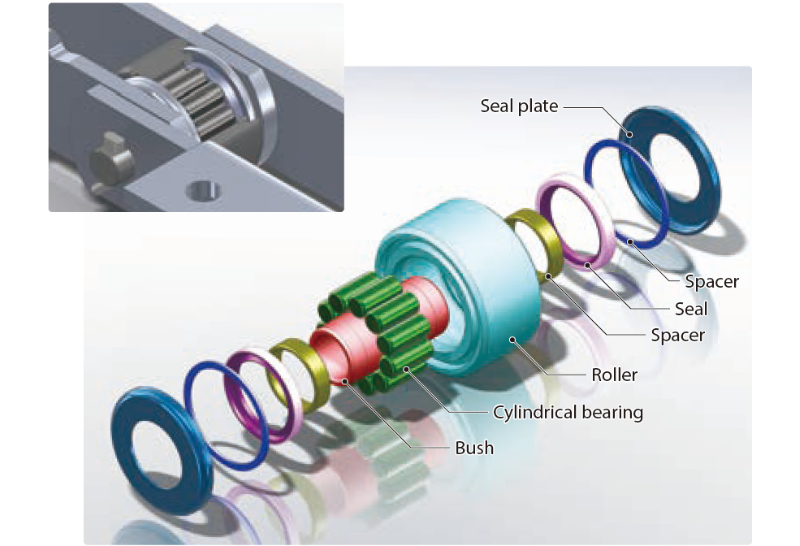

If highly abrasive dust or raw materials enter the space between the bushing and the roller, as well as the outer roller, the roller's rotation will be hindered, and wear between the bushing and the roller will accelerate rapidly. As a result, the chain will reach its wear limit prematurely. By using dustproof bearing rollers, the lifespan of the reclaimer chain can be significantly extended.

Main Features

1. Suppresses premature wear between bushings and rollers caused by dust.
2. Reduce costs through improved efficiency.
3. Suppresses the stick-slip phenomenon
4. Extend the lifespan of rollers and rails.

Drag conveyor

FC Flow

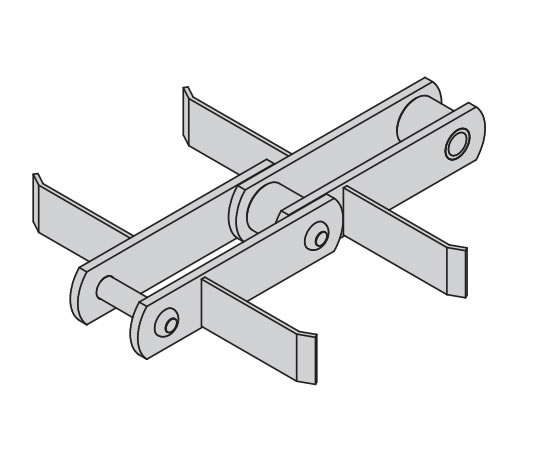

L att chain

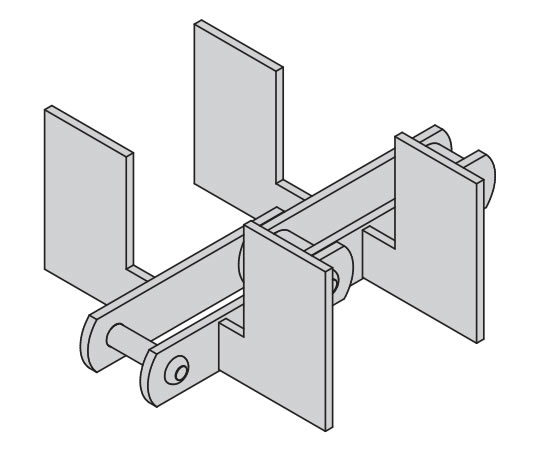

W att chain

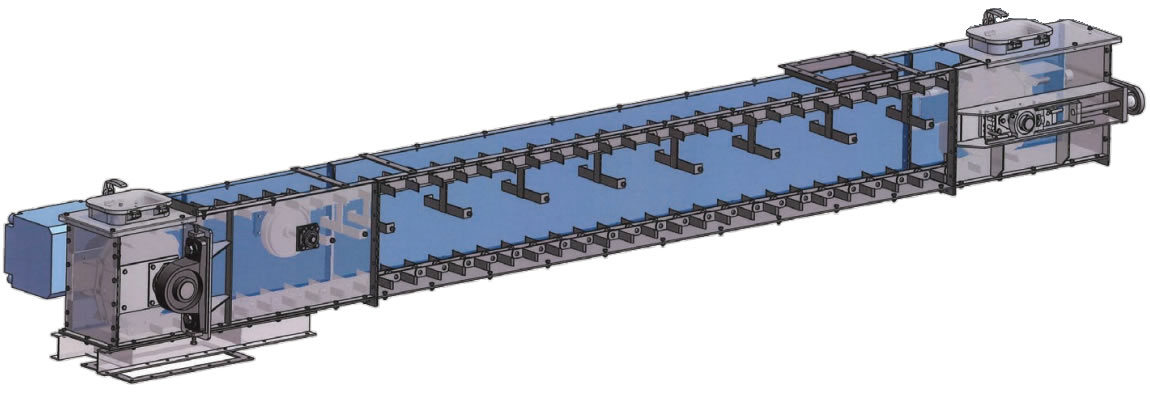

The Tsubaki FC Flow is a continuous drag conveyor suitable for powdered and granular raw materials such as cement, chemical products, and fertilizers.
The movement of the chain running inside the casing allows the raw material to be conveyed smoothly, like a flow of water, making it suitable for use in horizontal or gently sloping configurations.

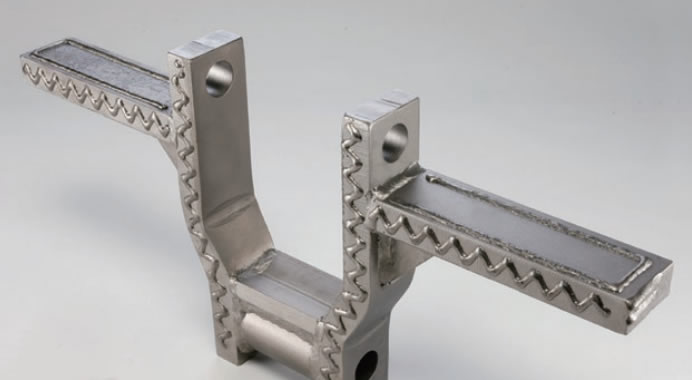

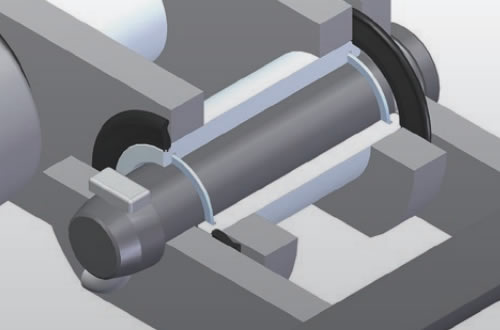

heavy duty cranked link chain WHX specification (manufactured by USTSUBAKI POWER TRANSMISSION, LLC)

Welded steel chains are designed and manufactured to provide high strength, precision, impact resistance, and wear resistance.
press fit structure and induction hardening pins enhance durability.
induction hardening pins achieve both high strength through full-cross-section hardening and high surface hardness that makes them highly resistant to wear.
This ensures that the pin has sufficient toughness even when subjected to impact loads, preventing fracture.
All heavy duty cranked link chain are heat-treated to maximize wear life.
Furthermore, the WHX heavy duty cranked link chain features hard-face welding on all sliding parts, achieving excellent wear resistance.
