paper mill
Drive unit
Applications in the drive unit
Tsubaki boasts the world's No. 1 market share in industrial chains for industrial use, and offers a wide variety of parts and units related to "power transmissions," including speed reducers and couplings.

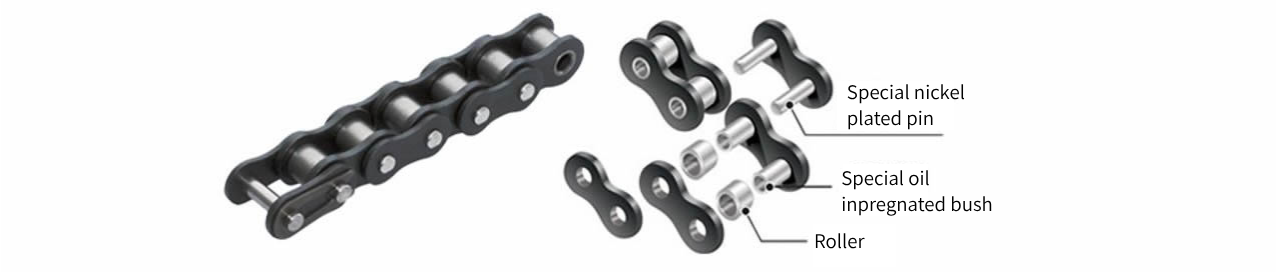

Lube-free chain -Lambda Chain-
In processes closer to the final product, lubricant from the roller chain can come into contact with the workpiece, potentially leading to defects.
Tsubaki's Lambda Chain, a Lube-free chain, uses special oil-impregnated bush, ensuring a long lifespan without the need for additional lubrication.
There are also long-life Lambda Chain available that offer even longer service life.
Advantages of adopting Lambda Chain
Under conditions of Lube-free operation, wear and elongation life is significantly improved compared to general-purpose chains, reducing maintenance and replacement costs.
Learn more about Lambda Chain
For questions about the product, please click here

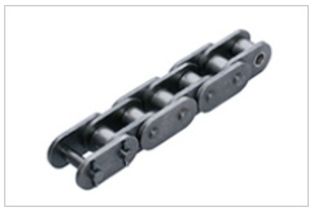

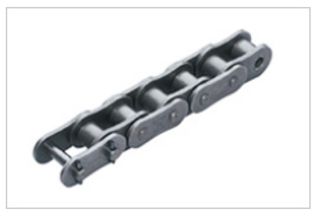

Heavy duty drive chain
By increasing the plate shape and thickness compared to general-purpose Drive chain, we have achieved excellent power transmission capacity and allowable load tensile strength while maintaining a compact design.

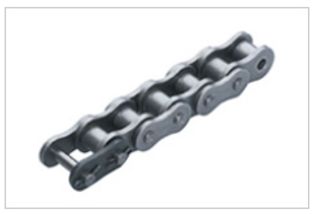

Super chain
By adjusting the amount of plate constriction, Maximum allowable load has been improved by approximately 30% compared to general-purpose roller chains.

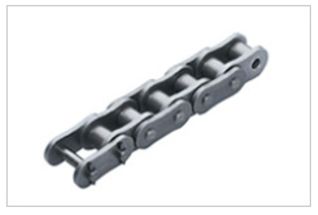

RS-HT chain
By increasing the plate thickness, the tensile strength has been improved by approximately 20% compared to general-purpose roller chains.
Super-H chain
This chain features plates with the same shape as Super chain but with increased thickness. It is suitable for use in conditions requiring higher allowable tension, tensile strength, and shock absorption.
Ultra Super chain
The plate shape is oval, and the thickness is increased. It has the highest level of allowable tension, tensile strength, and shock absorption, and a compact design is possible.
Learn more about Heavy duty drive chain
For product inquiries, please contact us here

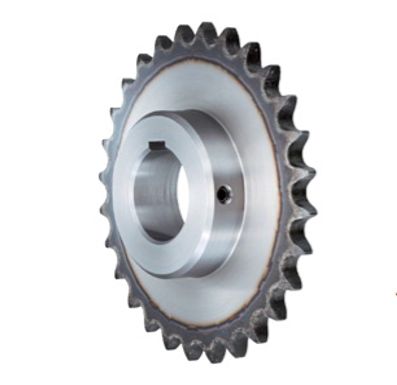

Drive sprocket
Tsubaki drive sprockets are manufactured with a deep hardened layer extending all the way to the root tooth root, resulting in superior wear resistance and a long service life.
We offer a wide variety of products, including those with different tooth counts, No. of strands, shapes, shaft bore finishes, and shaft fasteners.
Tsubaki Drive Sprocket
Company A
Company B
- Comparison of hardened layers
Click here for details on the drive sprocket.
For product inquiries, please contact us here

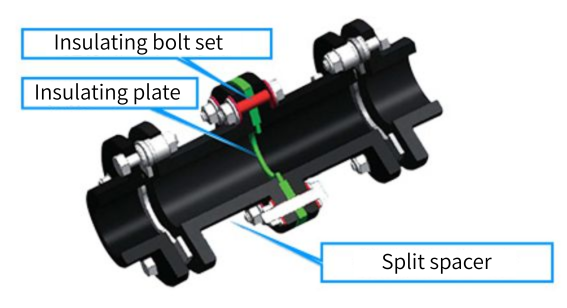

Shaft Connector -ECHT-FLEX NEF Electrical Insulation Specification [Custom Order] -
This prevents electrolytic corrosion (bearing damage) in the gearbox and other equipment caused by leakage current from the motor.
All spacers have an insulation resistance of 1 MΩ or higher, and are shipped after undergoing voltage withstand and insulation tests following assembly. Spacers can also be manufactured to any desired length.

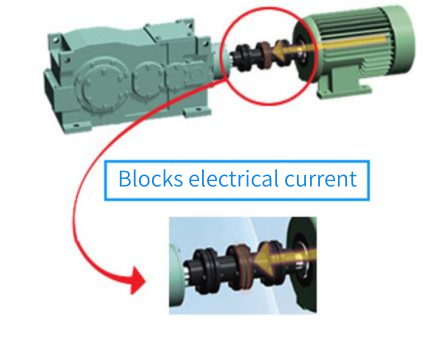

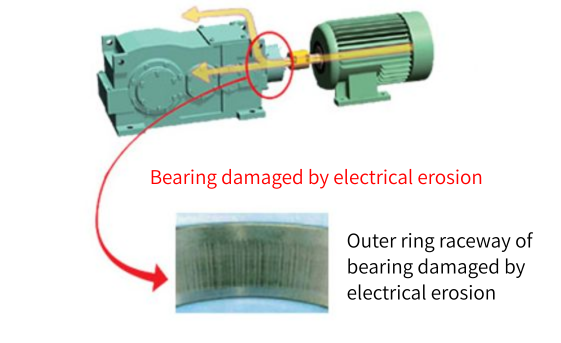

In conventional shaft couplings, the bearings are damaged by electrolytic corrosion.
The electrical insulation specification blocks the current from the motor, preventing electrolytic corrosion on the machine side.
For product inquiries, please contact us here

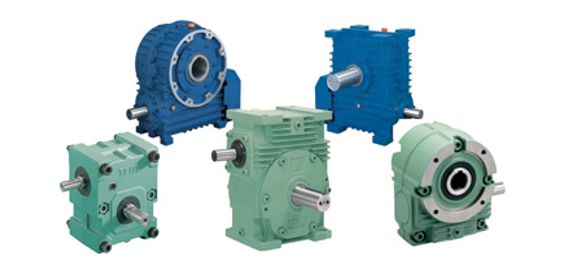

Worm Power Drive / Troi Drive
This worm gear reducer features two types of worms: "cylindrical (Worm Power Drive)" and "Troidal (Troi Drive)," offering a wide variety of options to suit various applications.
A comprehensive lineup ranging from small to large. Two types of cases are available: Foot mount and shaft-mounted/flange-mounted.
Click here for details on worm gear reducers.
For product inquiries, please contact us here

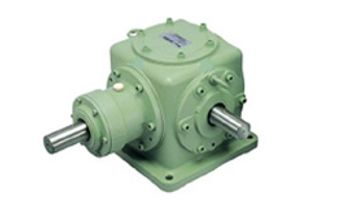

Miter Gear Box
Power is distributed to the left and right sides and to multiple axes, driving the line shafts.
By using a single motor for drive, periodic operation can be easily achieved, allowing for a compact device design.
Click here for details on Miter Gear Box
For product inquiries, please contact us here
paper mill
Conveyor section
Applications in the transport section
Tsubaki leverages its expertise in "material handling," including conveyor chains and linear actuator, to provide the best solutions for our customers' various material handling needs.
Large size conveyor chain-Bearing Roller Conveyor Chain-
Our unique structure incorporates cylindrical bearing inside the roller. We also offer dust-resistant, water-resistant, and Lube-free versions.
Function of bearing rollers
Reduced chain running resistance (1/3 of general-purpose conveyor chains)
Significant increase in roller load capacity
The effect of bearing rollers
Reduced chain tension and required power.
Preventing jerking during long-conveyor length, low-speed operation.
Suppression of roller rotation failure and reduction of rail friction
Improved wear life (between bushing and roller)
More information on Bearing Roller Conveyor Chain
For product inquiries, please contact us here

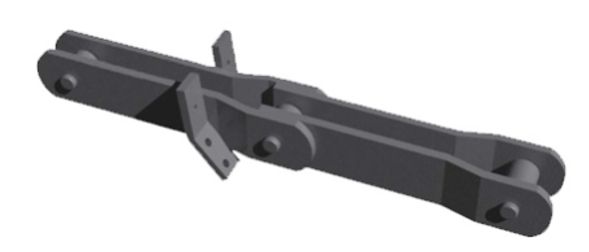

Chain for Digestas
This is a digester chain used for pulping chemigland pulp (CGP) and semigland pulp (SCP). It achieves a long service life through an optimal combination of materials and heat treatment.
For more information about this product, please contact us.
For product inquiries, please contact us here
Conveyor chain FB specifications

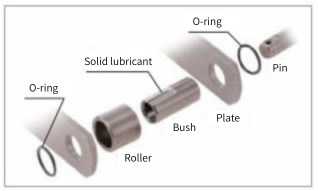

This design features solid lubricant pressed between the chain pins and bushings, and O-rings fitted between the links.
merit
By using a solid lubricant to suppress chain elongation (pitch elongation), and by using O-rings to prevent material from entering between pins and bushings and to prevent the leakage of solid lubricant, we have achieved double the lifespan of the chain.

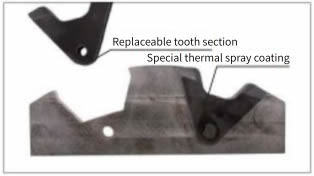

Replacement tooth sprocket thermal spray specification
The sprocket teeth are replaceable, and a special thermal spray treatment is applied to tooth root.
merit
By hardening the entire replacement tooth section and applying a special thermal spray treatment to tooth root, we have doubled the lifespan of the sprocket.

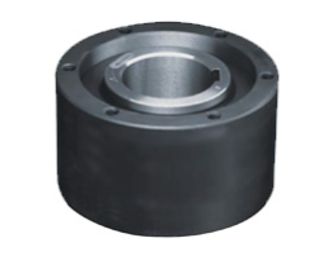

Cam Clutch - BS Series [For preventing reverse rotation (backstop)] -
This is a cam clutch specifically designed to prevent reverse rotation at low speeds, such as on conveyors. Its comprehensive dustproofing and specialized cam ensure high reliability.
By employing a specially developed cam and a unique cam and roller structure, we have achieved high impact resistance, wear resistance, and excellent lubrication performance.
Click here for details on the BS series cam clutch.
For product inquiries, please contact us here

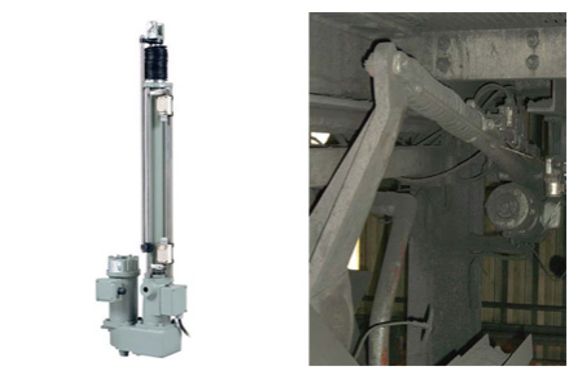

Power Cylinder
This is an electric cylinder that can be used with simple electrical wiring. It offers a range of thrusts from small to large, with a wide variety of options and built-in overload protection devices for safe operation.
Unlike hydraulic or pneumatic systems, it requires no complicated piping and is easy to maintain. The use of high-probability Ball screw ensures a long lifespan even under high-speed and high-frequency conditions.
Click here for details on Power Cylinder
For product inquiries, please contact us here

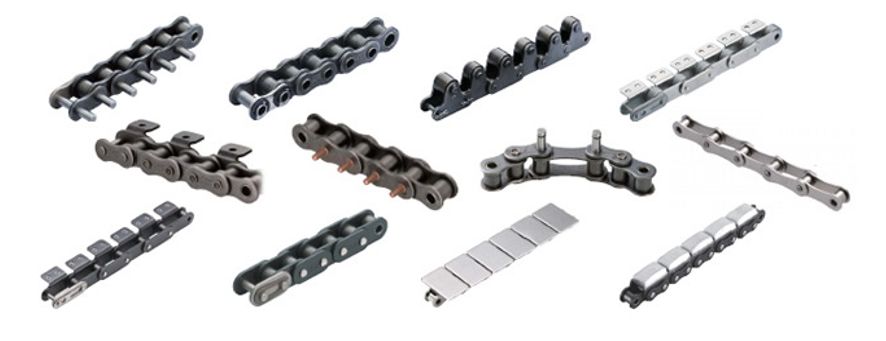

Small size conveyor chain
Tsubaki's Small size conveyor chain are used in every production process in the paper industry. Their key feature is their wide range of applications, adapting to various conveyor lengths, transport directions, and operating environments.
Click here for details on Small size conveyor chain
For product inquiries, please contact us here
paper mill
Woody biomass
Applications in wood biomass power generation facilities
Many Tsubaki products are also used in biomass power generation, which generates electricity by incinerating wood chips and construction waste.
fuel supply system
Our system can handle the transport of various fuels, not just wood fuels, and we offer a lineup of specifications that can withstand corrosive environments.
Ash transport system
We offer a lineup of specifications to address chain bending caused by wet and dry ash, problems with roller rotation, and corrosion and wear prevention.

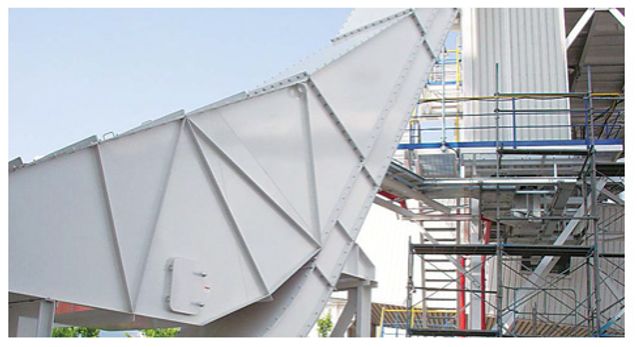

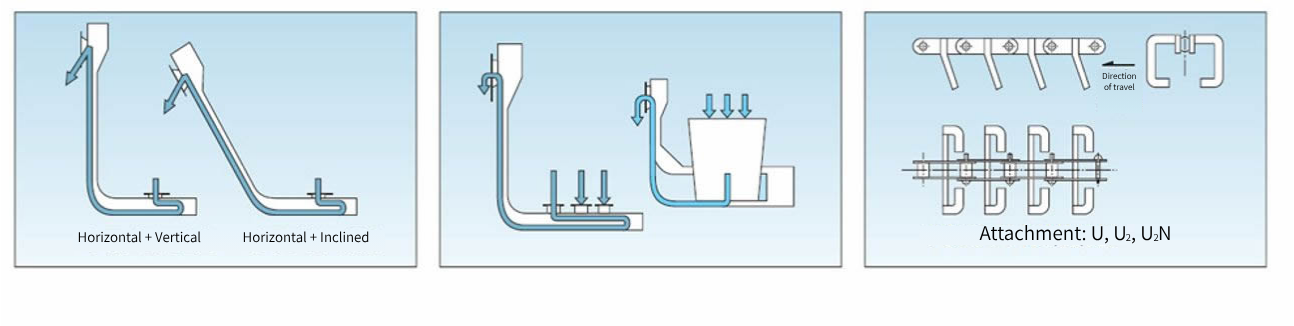

Horizontal + Vertical Conveyor -LC Flow-
LC flow is a conveyor that uses its own friction to transport powders and granular materials from horizontal to vertical, or horizontal to inclined, all in one unit.
Advantages of adopting LC flow
- It's compact and economical.
- It offers flexibility in terms of input.
- We use the optimal conveyor chain.
- Maintenance and inspection are easy.
- It has a dustproof and waterproof structure.
LC Flow Manufacturing and Sales: Tsubakimoto Bulk Systems Co., Ltd.
Learn more about LC flow
For product inquiries, please contact us here
