Drawing Library Servo Motor Reducer

Worm gearheads (Click here for hypoid gearheads and helical gearheads)

Selectable model number:

Display drawings, standard prices and delivery

*To generate the correct model number, select items in order from left to right.

series size Mounting Position Reduction ratio Shaft arrangement Mount Code










E
W












Please refer to the motor mount dimension diagram below.
Please refer to the following.
Please select the mount code.

S
W

series

EWJMK/EWMK: These are types that are basically Foot mount. Sizes 70 and below are the EWJMK series, and sizes 80 and above are the EWMK series.

SWJMK/SWMK: These are types based on flange mounting and on-shaft mounting. Sizes 70 and below are the SWJMK series, and sizes 80 and above are the SWMK series.

size

Indicates the size of the reducer.

Mounting Position

E or T: E for EWJMK and SWJMK series,
For the EWMK and SWMK series, it is T.
E can be installed in all directions, and T is a type where the input shaft is above the output shaft.

B: This type has the input shaft lower than the output shaft.

V: A type in which the output shaft is vertical.

Please refer to the diagram below for details.

Reduction ratio

Indicates the reduction ratio.

Shaft arrangement

Indicates the relationship between the mounting surface and the input/output shaft.

Please refer to the diagram below for details.

Mount Code

Specify the mount code that matches the motor you are installing.


Start over


EWJMK・EWMK
Mounting Position E, T V

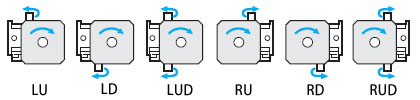

Shaft arrangement
SWJMK・SWMK
size 35～63 70 80, 100
Mounting Position E E T B V
Shaft arrangement

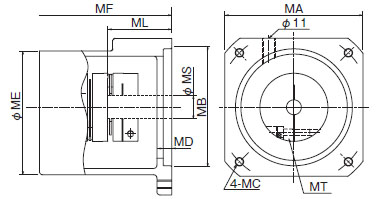

Motor mount dimension diagram

Unit: mm

size Mount Code
By motor manufacturer
Compatibility list		 Coupling Motor mount dimensions
Model number Allowable Torque
N・m		 MA MB MC MD ME ML MS MT
EWJMK35
SWJMK35		 E4DC NES70W 7 □60 Φ50G7 M5 depth 10
(PCD70)		 5 80 25 Φ8 M3
E4HC 30 Φ14
EWJMK42
SWJMK42		 E4DC NES70W 7 □60 Φ50G7 M5 depth 10
(PCD70)		 5 80 25 Φ8 M3
E4HC 30 Φ14
EWJMK50
SWJMK50		 G2HC NES250W 25 □80 Φ70G7 M6 depth 10
(PCD90)		 5 110 (EWJMK)
100 (SWJMK)		 30 Φ14 M4
G5LC 40 Φ19
EWJMK63
SWJMK63		 G2HC
(SWJMK only)		 NES250W 25 □80 Φ70G7 M6 depth 10
(PCD90)		 5 --- 30 Φ14 M4
G5LC 40 Φ19
K2LC NES800W 80 □130 Φ110G7 M8 depth 13
(PCD145)		 8 --- 40 Φ19 M6
K3YC 55 Φ24
L1MC NES1300W 130 □176 Φ114.3G7 M12 depth 16
(PCD200)		 8 --- 55 Φ22 M6
L1PC 55 Φ28
L1RC 79 Φ35
EWJMK70
SWJMK70		 G2HC
(SWJMK only)		 NES250W 25 □80 Φ70G7 M6 depth 10
(PCD90)		 5 --- 30 Φ14 M4
G5LC
(SWJMK only)		 40 Φ19
K2LC NES800W 80 □130 Φ110G7 M8 depth 13
(PCD145)		 8 --- 40 Φ19 M6
K3YC 55 Φ24
L1MC NES1300W 130 □176 Φ114.3G7 M12 depth 16
(PCD200)		 8 --- 55 Φ22 M6
L1PC 55 Φ28
L1RC 79 Φ35
EWMK80
SWMK80		 K2LC NES800W 80 □130 Φ110G7 M8 depth 13
(PCD145)		 8 --- 40 Φ19 M6
K3YC 55 Φ24
L1MC NES1300W 130 □176 Φ114.3G7 M12 depth 16
(PCD200)		 8 --- 55 Φ22 M6
L1PC 55 Φ28
L1RC 79 Φ35
EWMK100
SWMK100		 L1MC NES1300W 130 □176 Φ114.3G7 M12 depth 16
(PCD200)		 8 --- 55 Φ22 M6
L1PC 55 Φ28
L1RC 79 Φ35
