The lifter's horizontal position is maintained through perfect synchronization of the jacks via mechanical synchronization.
Linipower Jack JWM (Trapezoidal Screw type)
overview
By adopting Linipower Jack (screw jacks) for the lifting and lowering device of the work platform used for vehicle inspection and maintenance, and synchronizing the machinery, we have avoided the risk of the lifter tilting that often occurs with hydraulic lifters. Even with large objects being lifted, multiple Linipower Jack can be linked together and driven by a single motor, enabling perfectly synchronized lifting and lowering.
Problem
With hydraulic lifting systems, when raising or lowering multiple points simultaneously, variations in operation are likely to occur, making it difficult to ensure the workbench remains level. Furthermore, the need for piping and units results in a complex structure, which tends to increase the burden of maintenance.
Adopted products
Linipower Jack JWM (Trapezoidal Screw Type)
JWM (Trapezoidal Screw type) is a general-purpose, low-noise screw jack.
The main components are a concentric Trapezoidal Screw and a high-precision worm gear.
Simple, compact structure and economical. Load retention is expected. (Self-locking)
Left-handed and stainless steel screw specifications are also available.
Miter Gear Box
A high-performance, high-efficiency, general-purpose spiral bevel gearbox with a right-angle shaft. It allows for a 90° change in the direction of force transmission, or a 90° change in direction for left/right (up/down) distribution.
ECHT-FLEX Coupling NEF Series (Disc Coupling)
The disc shape, optimally designed for FEm, offers reliable torque transmission, misalignment absorption, and other superior features such as high-precision positioning and lubrication-free operation.
There are a wide variety of shaft fastening methods available, and environmentally resistant specifications are also available.
Benefits of adopting the product
By connecting four Linipower Jack (screw jacks) with Miter Gear Box and coupling, perfectly synchronized lifting and lowering is now possible with a single motor. This eliminates the need for hydraulic piping, simplifying the system configuration and making inspection and maintenance easier.
Tsubaki will do its utmost to support you in solving any problems you may have.
Please feel free to contact us with any concerns you may have.
Click here for details on the adopted products
Click here for consultation
Solution Case Study in the same industry
-
The end of the conveyor is tilted by Zip Chain Actuator, reducing the burden on loading workers.
ProblemEnsuring safetyIndustryTransport machineryPurposeMove linearlyproductLinear Actuator -

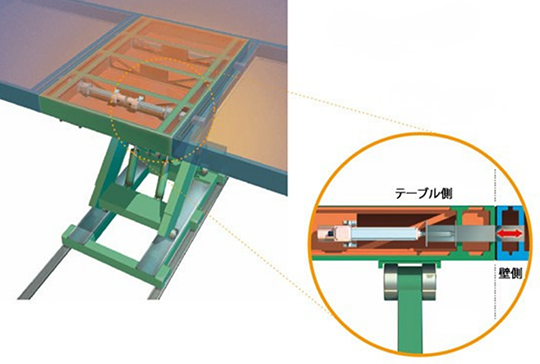

Used for changing the direction of pallets, making it compact and enabling installation against a wall.
