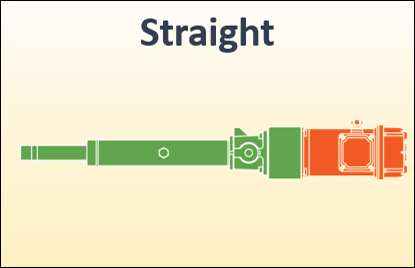

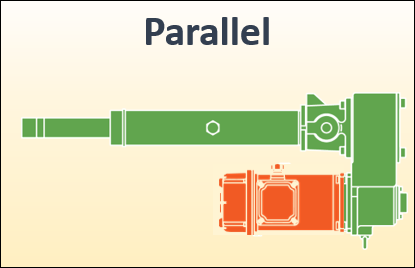

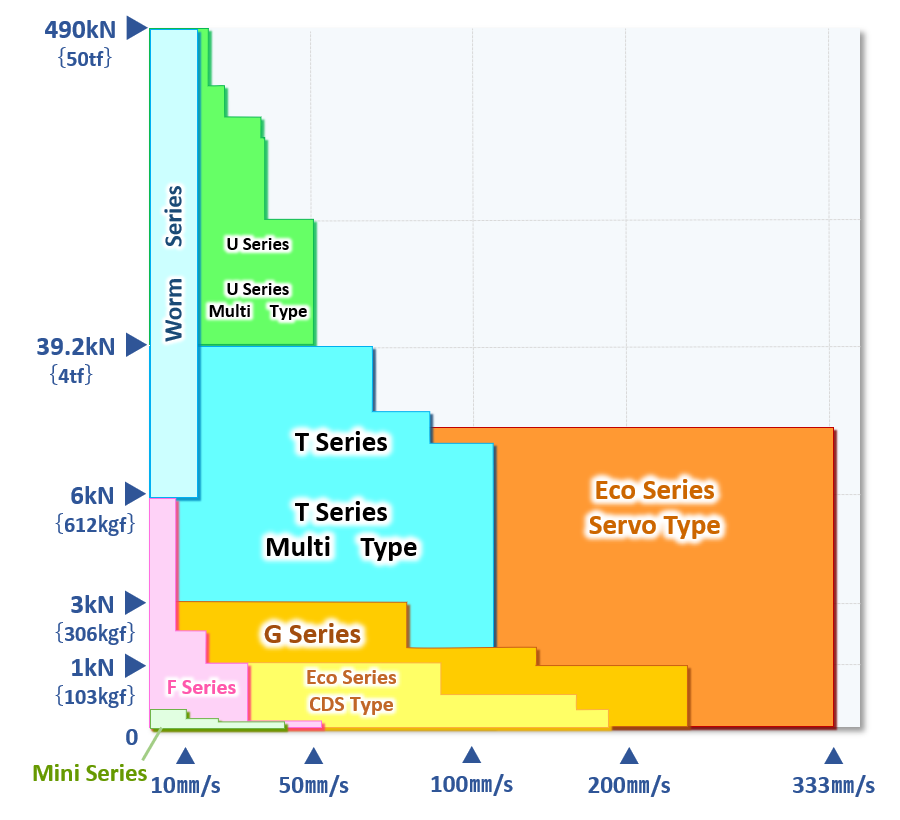

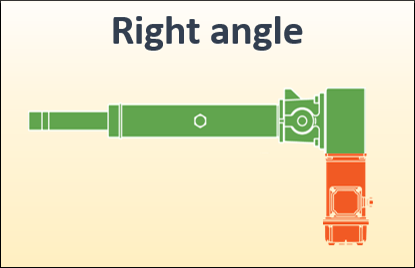

Rated thrust	58.8kN ～ 480kN {6 ～ 50tf}
Stroke	500 ～ 2000mm
motor	Three-phase motor with brake
Screw type	High-performance Ball screw
overload protection	With Wet-type slip clutch With Thrust detection limit switch
Power Cylinder with a thrust of 6 tons or more that maintains the same capacity as the previous model (T series) while achieving a smaller, lighter weight and improved cost performance. It can be used in conventional steel and environmental equipment, and can also replace hydraulic cylinders in presses, casting machines, table lifters, etc. Lightweight and compact Compared to the previous model (T series), the overall length has been reduced by up to 11% and the mass by up to 40%. A rich lineup A new 22000 size (rated thrust 215kN) has been added, offering a wide range of models in the thrust range of 6 tons or more. Improved cost performance The introduction of new technology has made it smaller and lighter, improving cost performance. Product Info

×

(You can move it by dragging it)


Rated thrust	58.8 ～ 313kN {6 ～ 32tf}
Stroke	500 ～ 2000mm
motor	-
Screw type	High-performance Ball screw
overload protection	With Thrust detection limit switch

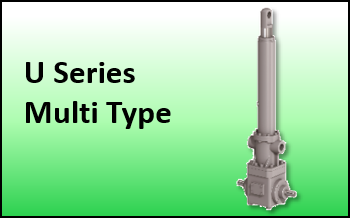

Power Cylinder that can perfectly synchronize multiple cylinders with one motor. UA type: Compact economy type UC type: Thrust detection type with safety device Tough construction The operating section that supports the load and the reduction section are separated, so there is no change in gear tooth contact due to fluctuating loads. Multiple units can be linked By using an input shaft with sufficient strength, multiple units can be linked together. long life A long life is achieved by using Ball screw with a large load capacity. Swing operation possible The input shaft and trunnion are on the same axis, so oscillation is possible while operating in tandem. safety Built-in Thrust detection limit switch that detects and protects against overload. (LPUC) Product Info

×

(You can move it by dragging it)


Rated thrust	2.45 ～ 39.2kN {250 ～ 4000kgf}
Stroke	200 ～ 1500mm
motor	Three-phase motor with brake
Screw type	Ball screw
overload protection	With Wet-type slip clutch With Thrust detection limit switch

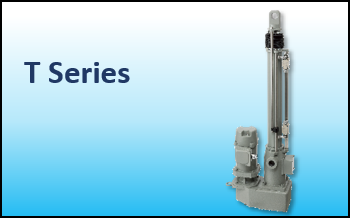

A large thrust type Power Cylinder that can be used with AC power. It can be used in a wide range of applications, including steel, injection molding machines, liquid crystal and semiconductor devices. It can also be used outdoors (IP55). Two easy-to-choose types TB type: Built-in wet slip clutch TC type: with thrust detection limit switch Wide variation A wide range of standard models are available to suit various applications, thrust and speeds. Reliable operation It uses a highly efficient Ball screw, a quiet deceleration unit, and a highly reliable brake motor.It also has a highly reliable built-in safety device that is effective against overload. A wide range of options Stroke adjustment limit switch Potentiometer Rotary encoders, etc. Product Info

×

(You can move it by dragging it)


Rated thrust	2.45 ～ 39.2kN {250 ～ 4000kgf}
Stroke	200 ～ 1500mm
motor	-
Screw type	Ball screw
overload protection	With Thrust detection limit switch
Power Cylinder that can perfectly synchronize multiple cylinders with one motor. TB type: Compact economy type TC type: Thrust detection type with safety device Tough construction The operating section that supports the load and the reduction section are separated, so there is no change in gear tooth contact due to fluctuating loads. Multiple units can be linked By using an input shaft with sufficient strength, multiple units can be linked together. long life A long life is achieved by using Ball screw with a large load capacity. Swing operation possible The input shaft and trunnion are on the same axis, so oscillation is possible while operating in tandem. safety Built-in Thrust detection limit switch that detects and protects against overload (LPTC). Product Info

×

(You can move it by dragging it)


Rated thrust	49kN ～ 490kN {5 ～ 50tf}
Stroke	200 ～ 2000mm
motor	Three-phase motor with brake
Screw type	Ball screw
overload protection	-

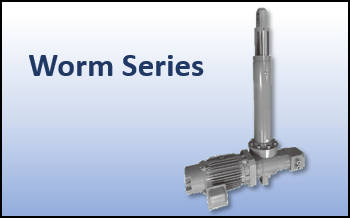

Power Cylinder Worm Series is an electric cylinder that is ideal for replacing hydraulic cylinders. High thrust is achieved by using high-precision worm gears and highly efficient Ball screw developed through Tsubaki's technology. Clean Easy to install Allows for precise control Low cost High load capacity Product Info

×

(You can move it by dragging it)


Rated thrust	700N ～ 3kN {70 ～ 300kgf}
Stroke	100 ～ 1200mm
motor	Three-phase motor with brake
Screw type	Ball screw Trapezoidal Screw
overload protection	With Wet-type slip clutch With Thrust detection limit switch

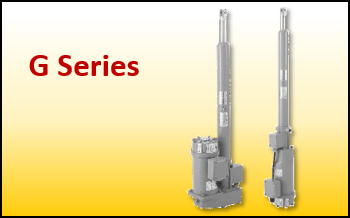

Power Cylinder in the medium thrust range that can be used with AC power. It can be used for a wide range of general industrial purposes, including steel, food, and multi-story parking lots. Wide variation LPGA: Simple, economical basics LPGB: Built-in slip-type overload protection mechanism LPGC: Thrust detection, push stop mechanism built-in type Stable, high efficiency and long life By using a nut material that is highly compatible with the concentric Trapezoidal Screw, stable, high efficiency and long life are achieved. Quiet operation Driven by a silent DC brake motor, noise levels are significantly reduced during start-up and shutdown. Excellent speed stability The basic structure uses an induction motor to rotate the screw shaft and move the nut (rod) forward and backward, enabling stable speed movement that is less susceptible to load fluctuations. Product Info

×

(You can move it by dragging it)


Rated thrust	100N ～ 6kN {10 ～ 600kgf}
Stroke	50 ～ 600mm
motor	DC motor
Screw type	Trapezoidal Screw
overload protection	With Wet-type slip clutch With Thrust detection limit switch

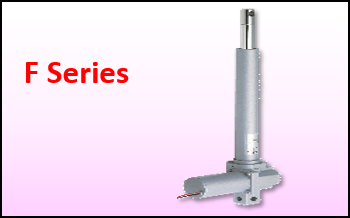

A small thrust type Power Cylinder driven by DC power. Ideal for outdoor use such as agricultural machinery and multi-story parking lots. Lightweight and compact Effective use of installation space Power supply voltage can be freely selected A wide range of options Stroke adjustment external LS bellows Position Detection Unit Overload Detection Unit Product Info

×

(You can move it by dragging it)


Rated thrust	150N ～ 15kN {15 ～ 1500kgf}
Stroke	100 ～ 1000mm
motor	Servo motor
Screw type	Ball screw
overload protection	-

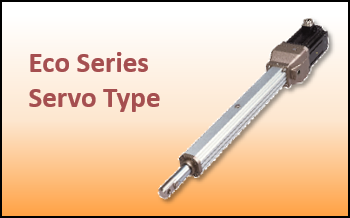

High speed and wide range of thrust High stopping accuracy High frequency operation Product Info

×

(You can move it by dragging it)

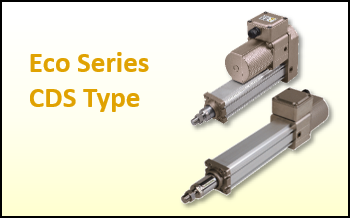

Rated thrust	250N ～ 1kN {25.5 ～ 103kgf}
Stroke	100 ～ 600mm
motor	Torque motor
Screw type	Ball screw
overload protection	CDS
What is CDS? (Current Detective System) This is a mechanism that detects overcurrent and stops the motor. self-contained Environmental Considerations Reduced running costs High frequency operation and long life Easy to use Product Info

×

(You can move it by dragging it)


Rated thrust	98N ～ 392N {10 ～ 40kgf}
Stroke	100 ～ 300mm
motor	Single-phase motor
Screw type	Trapezoidal Screw
overload protection	-

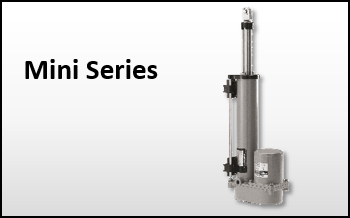

A series suitable for automating small, everyday tasks. You can use the packing machine and transport machine as your substitute. Single-phase power supply compatible It can be easily used with only a single-phase power supply, and no additional equipment is required. (Models with three-phase motors and brake motors are also available.) Also, a potentiometer is ideal for remote operation. Long life design Die-cast construction, grease-sealed type, thick screw diameter, and other long-life designs. A wide range of options Stroke adjustment limit switch Potentiometer bellows Trunnion fittings, etc.
