Achieving stable operation of high-capacity power cables in shipboard shore power supply (OPS) facilities.
Cable Carrier (CABLEVEYOR)
overview
Cable Carrier (CABLEVEYOR) were adopted for onshore power system (OPS) facilities for ships in ports.
OPS (Operational Power Station) is a port infrastructure that reduces fuel consumption and contributes to energy conservation by supplying electricity to docked vessels from land, while also contributing to the reduction of exhaust gases and noise.
In recent years, these technologies have been introduced or considered in various countries from the perspective of decarbonizing ports and reducing their environmental impact.
In OPS (Operations Processing System) facilities, safely and reliably handling high-capacity, heavy power cables is essential, and the method of cable management significantly impacts the overall reliability and maintainability of the facility.
The Tsubaki Group leverages its cable management technology to propose Cable Carrier (CABLEVEYOR) solutions for OPS (Operational Procurement System) facilities.
Problem
In OPS (Operations Processing System) facilities, power cables need to be moved over long distances and repeatedly depending on the quay structure and mooring position, resulting in complex movements that combine vertical, horizontal, and rotational motions.
Furthermore, because OPS cables have a high self-weight and tensile load, they are prone to risks such as wear, damage, and deflection, which have resulted in increased maintenance burden and equipment downtime risks.
Furthermore, consideration was also required for durability and corrosion resistance in outdoor and port environments.
Adopted products

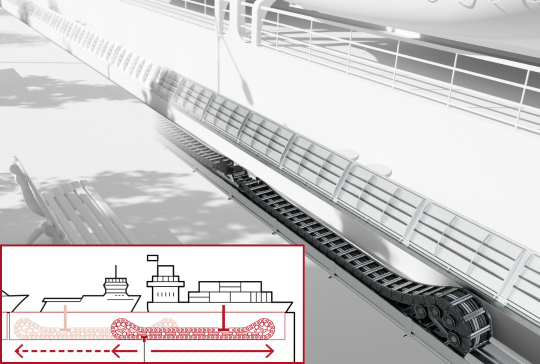

Cable Carrier (CABLEVEYOR) for onshore power supply facilities
Designed with corrosion resistance and durability ideal for port environments, this product is configured to handle long-distance transport and high-load conditions.
Furthermore, we can customize the design to meet your specific equipment requirements.
Benefits of adopting the product
By protecting cables with Cable Carrier (CABLEVEYOR), we were able to properly support and guide even high-capacity, heavy-duty cables, reducing excessive bending and tensile forces.
This reduced the risk of cable damage, leading to a stable power supply and a reduction in the risk of unexpected problems and equipment downtime.
Furthermore, it can now accommodate a variety of layouts and operating modes depending on the structure of the quay.
Furthermore, by adopting a highly durable and long-life design suitable for outdoor and port facilities, inspection and maintenance work will be streamlined, and a reduction in total costs can be expected with a view to long-term operation.
Tsubaki will do its utmost to support you in solving any problems you may have.
Please feel free to contact us with any concerns you may have.
