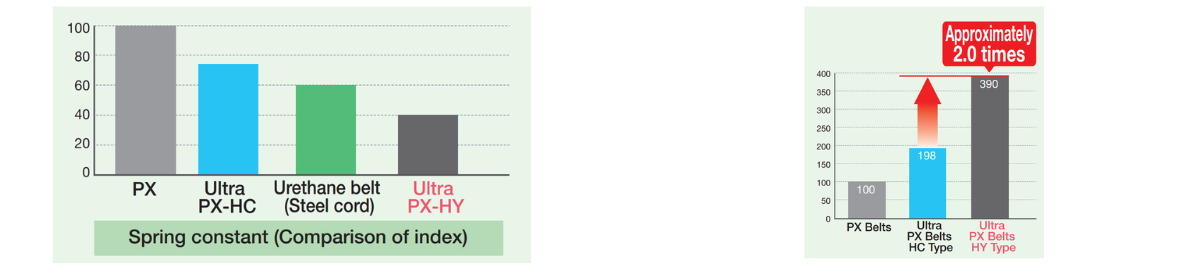

Because the arms of high-speed vertical articulated robots require precise and repeatable positional accuracy, HY Type which has low elongation and excellent damping characteristics, is employed.
HY Type offers high rigidity and strength (approximately twice that of Ultra PX Belt HC Type), allowing for a reduction in the size of the drive unit and enabling a more compact design.

This system enables backlash-free drive in shaft connection and fastening. A wide range of options are available to suit different shaft diameters and torque requirements, including stainless steel and electroless nickel-plated finishes, allowing you to choose the best fit for your operating environment.

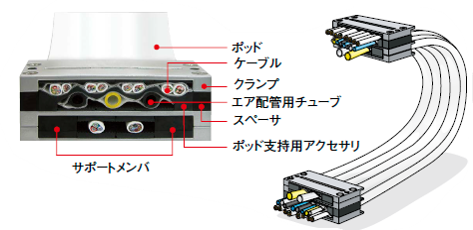

The robot arm uses ROBOTRAX, Cable Carrier (CABLEVEYOR) that moves in three dimensions.
ROBOTRAX can withstand high tension thanks to its internal steel wire.
Cable Carrier (CABLEVEYOR) features an open structure that allows cables to be easily inserted by pushing them into the slits on the side of the link, making maintenance work simple.
A wide range of accessories are available, including Coil spring to prevent interference with the robot arm.

Usage example

The hose supplying water to the robotic arm is protected with ROBOTRAX.
It is ideal for situations involving pressure, such as with water, air, paint, and adhesives.

This is a plug and play type cantilevered electric lift.
The screws and guides are housed within the frame, and the compact design allows for flexible layout of the production line.
Furthermore, it contributes to a significant reduction in design, assembly, and installation man-hours. The synchronization of the two Lift Master can be handled in two ways: a mechanically linked system or a system where each lift master has its own motor and is electrically synchronized.

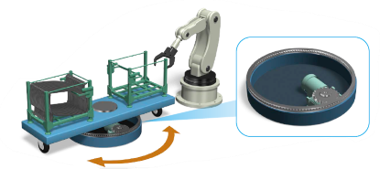

Pin gear drive unit is used in the pallet replacement and rotation mechanism of an automated supply line for welding components operated by a robot.
By arranging the pin gears internally, a compact mechanism can be achieved.
Its segmented structure​ ​makes it easier to install compared to gears and other components.

We offer a lineup of gearboxes ideal for advanced motion control using servo motors.
​The compact body with reduced height in the AGV/AMR drive unit allows for flexible installation and mounting. It can be attached not only to servo motors but also to other motors such as DCBL Hypoid Motor.

This chain features special oil-impregnated bush. The oil-impregnated bushings provide self-lubrication, resulting in Lube-free and long-lasting chain.
It contributes to reducing maintenance costs and maintaining a clean environment.

For space-saving conveying line configurations with small turning radii, it is necessary to rotate the conveyed object on the AGV/AMR body. Pin gear drive unit is used for this rotation mechanism.
Its segmented structure makes it lighter than racks and gears, contributing to lighter equipment and improved workability.

A CV (Conditioner Vehicle) using Plastic modular chain is used in the mechanism for transferring materials from the AGV (Automated Guided Vehicle).
This conveying chain features a modular, brick-like structure, offering excellent maintainability, lightweight design, quiet operation, and cleanliness. Standard conveyors are also available.

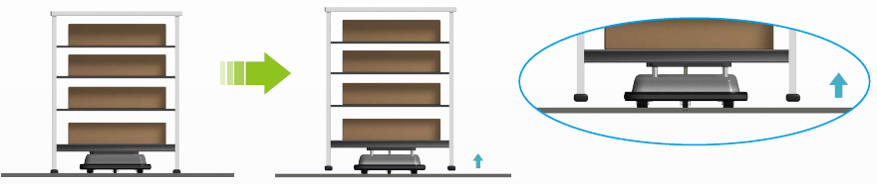

This lightweight, short-stroke lifting device meets the "low profile" and "high load capacity" requirements for a workpiece lifting mechanism used by AGVs (Automated Guided Vehicles) that can "vertically push up loads."

Using Zip Chain Actuator in the lifting mechanism of an AGV/AMR contributes to a more compact design.
We can also supply zip Zip Chain lifters, taking advantage of their high speed, high frequency, and long lifespan. The high speed and high frequency contribute to increased productivity.

Linipower Jack are suitable for lifting heavy objects such as raw material rolls. We also offer a lineup of specifications suitable for cleanroom use, including rust-proofing treatment on the screw shaft, application of clean grease, and urethane resin coating on the case.
For systems involving multiple units, we can also propose a complete interlocking system including Miter Gear Box and couplings.

We offer standard specifications for strokes up to 2m, and we can accommodate Long travel length as well. We have a proven track record of using this system for moving AGVs between floors within factories.
The use of linear guides allows for cantilever operation even with Long travel length, contributing to space savings in cantilever lifters.
The adoption of Zip Chain structure enables high-speed lifting, high-frequency, and high-precision operation. Furthermore, since the drive source is located on the floor, it contributes to improved maintainability.
*Please note that customers are responsible for complying with regulations and implementing safety measures during actual construction and operation.

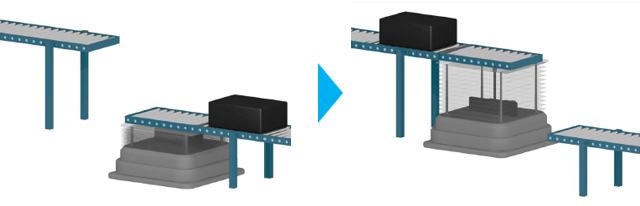

In AGV/AMR transport, there are cases where there is a difference in height between the AGV/AMR operating in the preceding process and the AGV/AMR operating in the next process. To transfer the transported goods, a lifting mechanism that lifts the goods and replaces the AGV/AMR is used, and Lift Master that can be installed simply by placing it down is employed.

While containers and other transported goods are generally handled primarily by conveyors, lifting and lowering slides may be used for transfers when conveyor-based transfers are difficult.
Using Zip Chain Actuator contributes to the low-profile design of the lifting mechanism.

This is a simple electric cylinder that can be used with a battery power supply and has a thrust of 100N (10.2kgf) to 600N (61.2kgf).
With its compact design featuring orthogonal alignment of the operating and motor sections, it can be used outdoors and offers a wide range of options including position detection units and overload detection units. It can be used in applications requiring a small cylinder, such as lifting and lowering on AGVs/AMRs or in positioning pin-setting mechanisms.
