technical data Top chain Selection
Plastic Roller table wearstrip
Note) For information on wearstrip, please refer to wearstrip section.
2-1. Transport side wearstrip (ST type, RT type)

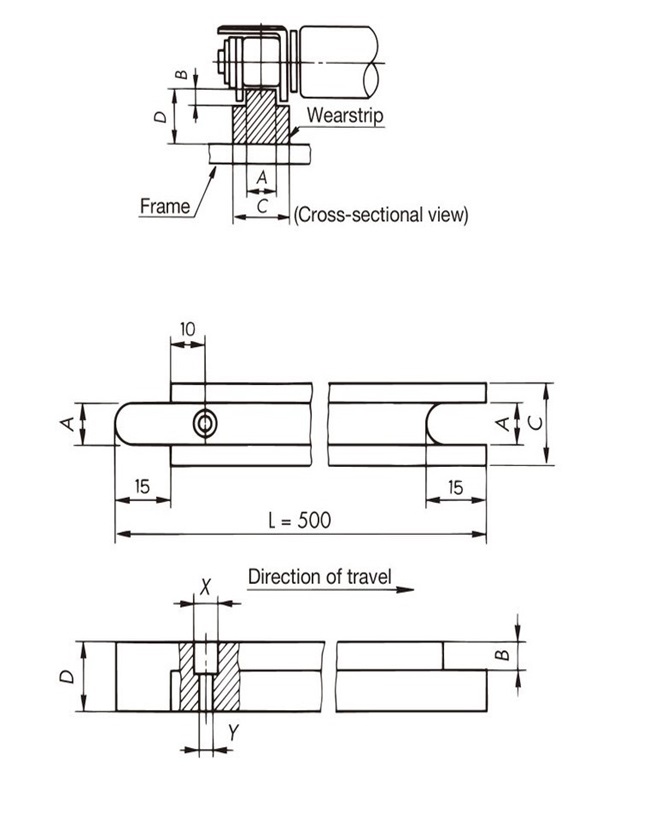

2-1-1.When using single strand Plastic Roller tables
| size | size | Mounting screws | Material | |||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | X: Depth | Y | |||
| ST300 | 4 | 2.7 | 9.5 | 10 | Φ3.2：3 | Φ1.8 | M1.6 pan head screw | P-rail Ultra high molecular weight polyethylene |
| RT300 | 1.6 | |||||||
| ST400 | 7 | 3.1 | 12 | 10 | Φ4.0：4 | Φ2.2 | M2 pan head screw | |
| RT400 | 1.7 | |||||||
| ST500 | 8.5 | 3.5 | 15 | 10 | Φ6.0：4 | Φ3.2 | M3 pan head screw | |
| RT500 | 2 | |||||||
| RT600 | 11.7 | 2.6 | 19 | 10 | Φ6.0：4 | Φ3.2 | M3 pan head screw | |

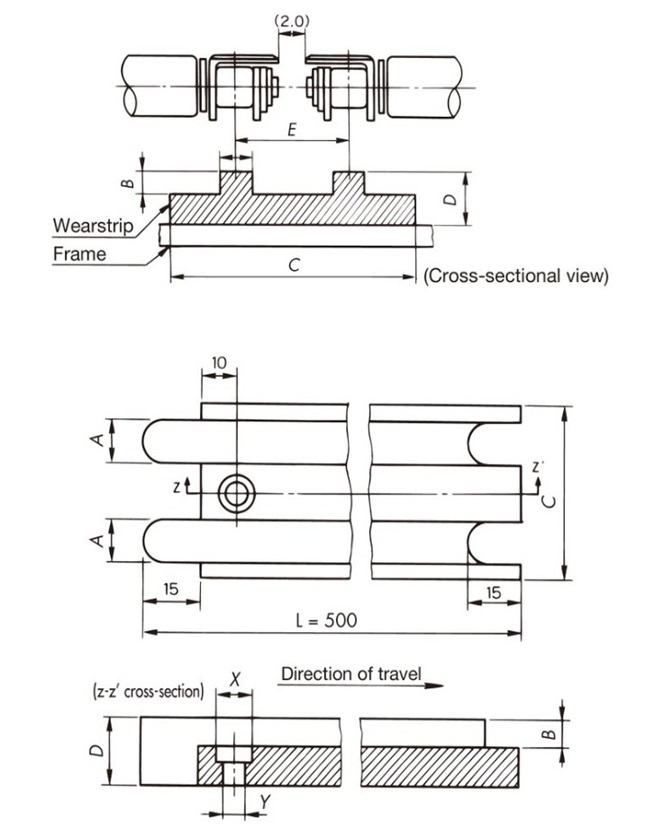

2-1-2.When using ST-type Plastic Roller table multiple strand
| size | size | Mounting screws | Material | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | X: Depth | Y | |||
| ST300 | 4.0 | 2.7 | 26 | 10 | 16.5 | Φ8：5 | Φ4.2 | M4 pan head screw | P-rail Ultra high molecular weight polyethylene |
| ST400 | 7.0 | 3.1 | 36.5 | 10 | 24.5 | ||||
| ST500 | 8.5 | 3.5 | 43.5 | 10 | 28.5 | ||||
2-1-3. How to install wearstrip
- -wearstrip should be supported flush against the frame.

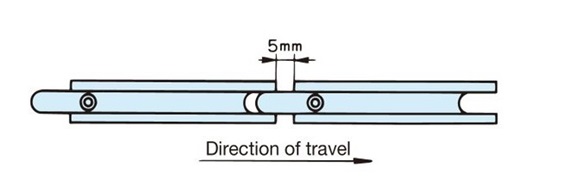

- -wearstrip are made of ultra-high molecular weight polyethylene, which expands significantly due to temperature and humidity. Therefore, fix them to the frame with a screw at one end, leaving a gap of about 5 mm at the joint.
- - Use steel or stainless steel square bars to guide both sides of wearstrip.

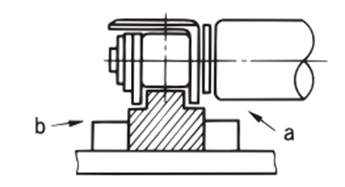

Note)
- Part a: Does not interfere with Plastic Roller part inside Plastic Roller table.
- Part b: Do not interfere with adjacent Top chain, etc.
*Linear expansion coefficient
- Plastic rail (P-rail), PLF rail: 20 x 10-5 /℃
- M rail: 9×10 -5 /℃
Note)
- 1. Plastic rail operating temperature range
Plastic rail (P-rail), PLF rail: -20 to 60°C
M rail: -20 to 80°C - 2. Do not use Plastic rail in conditions where it is exposed to steam.
2-2.Return return-way wearstrip
2-2-1. Common to ST and RT types
- - The bending radius of both ends of wearstrip should be as shown in the table below.
size Bending R ST300, RT300, RT400, RT500, RT600 Over 200 ST400 Over 250 ST500 Over 300 - - When driving, make sure there is slack in the chain under the drive sprocket as shown in the diagram above.
- -wearstrip are shaped so that Plastic Roller in a specific row do not wear out.
- -wearstrip width W1 is C1 (effective width) - 10
- - Use ultra-high molecular weight polyethylene for wearstrip.
2-2-2. Using Top chain accessory

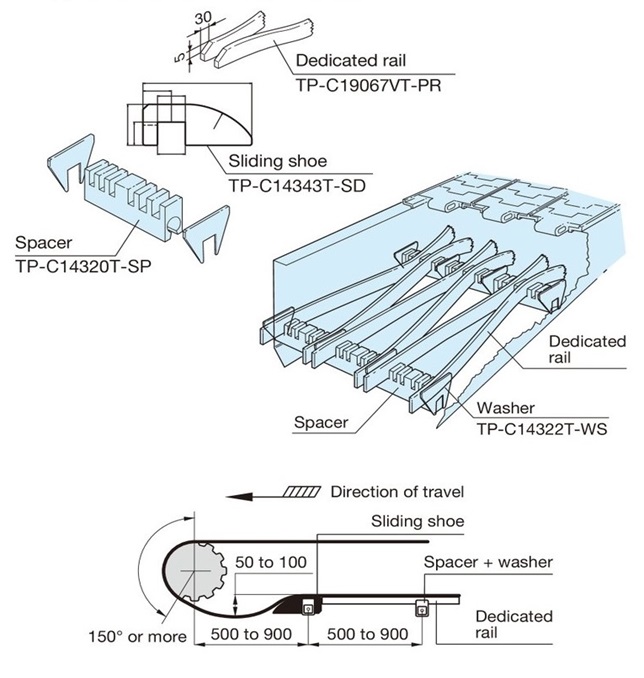

- (1) Uses sliding shoe (TP-C14343T-SD) and spacer (TP-C14320T-SP)

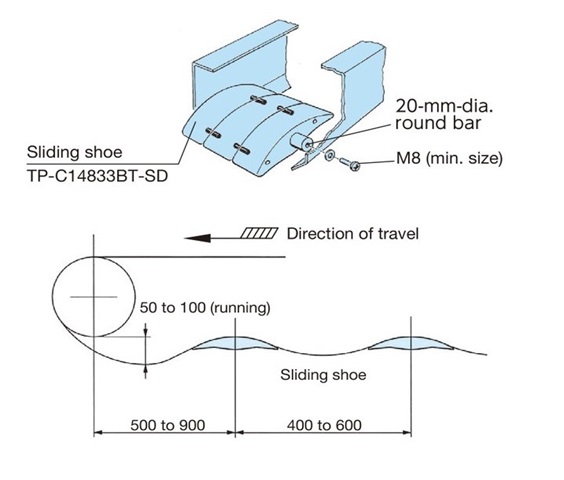

Applicable chain... Plastic Roller Table RT type - (2) Uses a sliding shoe (TP-C14833BT-SD)
Applicable chains: Plastic Roller Table ST300, ST400, RT type
