technical data Drive chain Roller Chain Selection
Selection method by application
1. Overview of the application-specific selection method
|
Purpose Selection points Selection method |
For normal atmospheres between -10℃ and 60℃ Usable connecting parts |
|||||
|---|---|---|---|---|---|---|
| Connecting link type | offset Link Format |
|||||
| M type | F type | 2 pitch | 1 pitch | |||
|

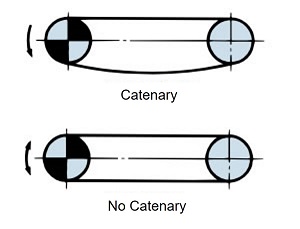

Winding transmission Start frequency less than 6 times/day

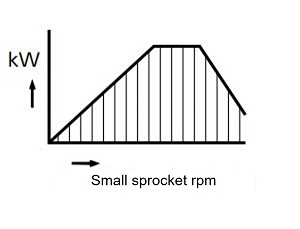

Selection based on kW ratings table
General selection method |
RS | ○ | ○ | ○ | □ | |
| BS/DIN | ○ | ● | □ | □ | ||
| LMD | ○ | ● | - | □ | ||
| LMDNP | ○ | - | - | □ | ||
| LMDX | ○ | - | - | - | ||
| LMDS | ○ | - | - | - | ||
| LMDKF | ○ | ● | - | □ | ||
| LMDKT | ○ | ● | - | □ | ||
| LM | ○ | - | - | □ | ||
| SUP | ○ | ● | - | - | ||
| HT | ○ | ○ | - | - | ||
| SNS | ○ | ● | ○ | □ | ||
|
Winding transmission Start frequency: 6 times or more per day

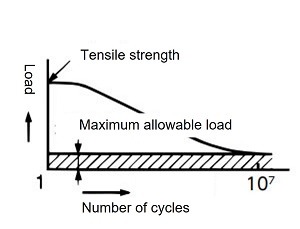

Selection based on Maximum allowable load

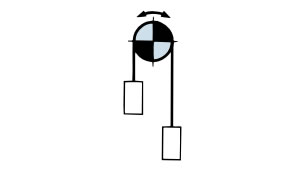

allowable tension selection method Hanging drive

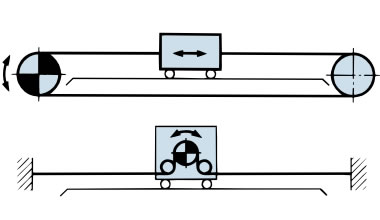

Selection based on Maximum allowable load For connecting links, please use F-type connecting links or connecting links specially designed for end bolts. Example of hanging drive Cart towing
Selection based on Maximum allowable load Example of trolley towing |
RS | ○ | ○ | ○ | △ | |
| BS/DIN | ○ | ○ | △ | △ | ||
| SUP | ○ | ○ | - | - | ||
| HT | ○ | ○ | - | - | ||
| SUPH | ○ | ● | - | - | ||
| USN | - | ● | - | - | ||
| NP | ○ | ○ | - | △ | ||
| NEP(APP) | ○ | ○ | - | △ | ||
| SS,HS | ○ | - | - | ○ | ||
| PC | ○ | - | - | - | ||
| PCSY | ○ | - | - | - | ||
| NS | ○ | - | - | ○ | ||
| TI | ○ | - | - | ○ | ||
| KT | ○ | ○ | - | △ | ||
| CU | ○ | ○ | - | - | ||
| CUSS | ○ | - | - | - | ||
|

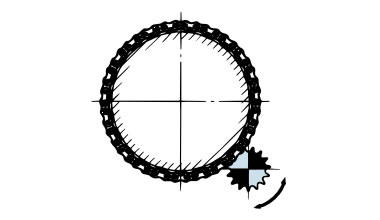

Chain type pin gear drive
Selection based on Maximum allowable load
Chain-type pin gear drive selection method |
RS attach With ment |
○ | - | - | - | |
Symbols in the table ○: Usable. □: Expect a decrease in transmission capacity. △: Expect a decrease in strength. -: No applicable products. ●: Custom-made product.
Other selections

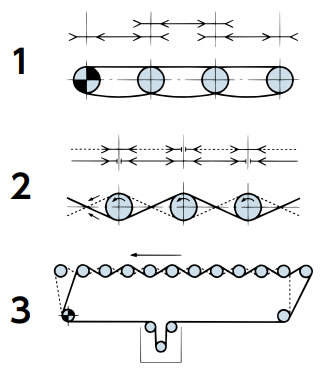

Roll drive
Multi-axis drive

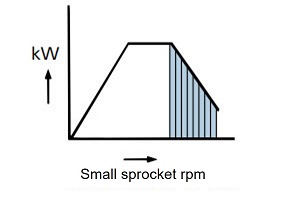

High-speed drive
To the right of the top of kW ratings table
(shaded area)

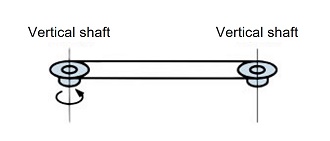

Drive with vertical shaft
Checking the conditions necessary for selecting a roller chain
- 1) Machine used
- 2) Type of impact
- 3) Type of engine
- 4) Rated power of the prime mover
- 5) High-speed shaft bore diameter and rotation speed
- 6) Low-speed shaft bore diameter and rotation speed
- 7) Center distance
Checking the engine characteristics necessary for chain selection
When selecting allowable tension and pin gear drive, please check the following motor characteristics.
- 1) Moment of inertia of the prime mover
- 2) Rated torque of the prime mover or prime mover shaft speed
- 3) Starting torque of the prime mover
- 4) Maximum (stall) torque of the prime mover
- 5) Braking torque of the prime mover
⚠Notes on selection
Each section on selecting roller chains is limited to selecting the type and size of roller chain, and does not take into account environmental degradation such as corrosion and aging.
If there are laws or guidelines regarding the selection of roller chains, please select according to those laws and guidelines as well as our designated method, and choose the chain with the larger margin. Please also take into consideration additional equipment such as safety devices and lubrication devices when making your selection.
