Application Examples Cam Clutch - 22. Stick Packaging Machine
application
Overrunning
When outer race of the Cam Clutch are engaged and torque is transmitted, the difference in rotation speed and direction of outer race causes
This is a method of use in which the wheel spins freely and repeatedly, similar to the freewheeling motion of a car.
Compatible models
Machines used
Stick Packaging Machine
Application Examples

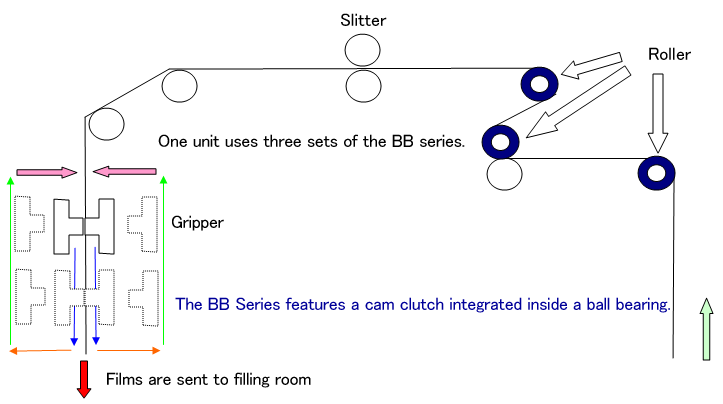

Layout
Purpose of use and operation explanation
The gripper is...
1. → Pinch the film and lower it down.
2. → Move sideways to release the film.
3. → Move sideways and go up.
4. → Close again to grab the film.
A certain amount of tension is applied to prevent the film from sagging when the gripper releases it, and this can cause the film to reverse.
To address this issue, we have used the BB series and installed a reverse prevention mechanism.
Advantages of using a Cam Clutch
- - It combines the functions of a one-way clutch and a bearing in a small space, allowing for effective use of space.
- - By arranging a large number of cams between outer race, it is possible to transmit larger torque than with a shell-type roller clutch.
