Application Examples of Power-Lock- 2. Commercial Offset Printing Machines

Models used

Application Examples

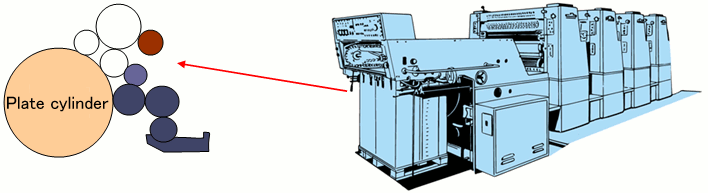

Connection of gears for adjusting the gap between rollers

Connection of gears for adjusting the gap between rollers

This application is used in commercial offset printing presses.
In an offset printing press, the paper passes through several rollers and each color is applied.
The gap between each roller must be adjusted using a complex gear linkage mechanism depending on the thickness and quality of the paper.

This adjustment requires a high degree of precision, so Power-Lock with no backlash is used.
