Lambda Chain KF Series Features
It uses environmentally friendly NSF-H1 grade certified oil, is compatible with food conveying machinery, can be used in high temperature ranges from -10°C to 230°C, and has stable lubrication and wear performance.
Uses special lubricant certified by NSF-H1
When held at 230℃ for 2 hours
Regular Lambda Chain
Lambda Chain KF Series

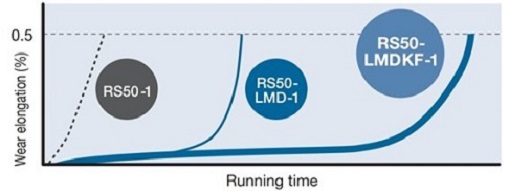

Comparison of wear life in high temperature ranges (reference)
The wear life of a roller chain varies depending on the chain speed, the load acting on it, the number of sprocket teeth, its condition, the environment, temperature, etc. The diagram is for reference only.
*The wear life of Lambda Chain is determined to be over when it reaches +0.5% of the total length of the chain.
150℃ temperature range
RS50 size (In-house test results: non-lubricated operation)
230℃ temperature range
RS50 size (In-house test results: non-lubricated operation)
*The usable temperature range for Lambda Chain is -10℃ to 150℃.
*The chain temperature may exceed the ambient temperature. Please be careful not to let the chain temperature exceed the operating temperature.
*Between 150℃ and 200℃, the transmission capacity will drop to 3/4 of the catalog value. Please select a cable that is suitable for the temperature.
*Below 200℃-230℃, the transmission capacity will drop to half of the catalogue value. Please select a cable that is suitable for the temperature.
Reduced maintenance man-hours contribute to improved productivity
special oil-impregnated bush are used, eliminating the need for oiling the chain. This eliminates the need for additional oiling and helps maintain a clean working environment.
