technical data linear actuator Power Cylinder Selection
Selection: Eco Series CDS Type
Requirements
Machines used and how to use them
Thrust or load N{kgf}
Stroke mm
Speed mm/s
Usage frequency Number of starts/min
Power supply voltage, frequency
The nature of the load on the machine used
Usage environment
Usage hours and annual operating days
Selection Procedure
- (1) Select the applicable model number from the standard model list (here) based on the thrust, speed, and stroke.
- (2) Check the table below to make sure that the number of starts for the selected cylinder is within the allowable range (Table 1).
- (3) Check that the thrust-speed diagram satisfies the operating conditions (Fig. 1).
- (4) When using for transport, check that the mass of the transported object is within the allowable range (Table 2).
- (5) Select the options as needed.
*Please be sure to read the following precautions.
Table 1 Allowable number of startups
| Model number | stroke mm |
Thrust N | |||
|---|---|---|---|---|---|
| 100 | 250 | 500 | 1000 | ||
| LPE025H | 100 | 15 | 12 | - | - |
| 200 | 15 | 12 | - | - | |
| 300 | 10 | 10 | - | - | |
| 400 | 9 | 5 | - | - | |
| 500 | 8 | 4 | - | - | |
| 600 | 6 | 3 | - | - | |
| LPE050L | 100 | 15 | 10 | 5 | - |
| 200 | 8 | 8 | 5 | - | |
| 300 | 5 | 5 | 5 | - | |
| 400 | 5 | 5 | 3 | - | |
| 500 | 5 | 4 | 2 | - | |
| 600 | 4 | 4 | 2 | - | |
| LPE050H | 100 | 15 | 12 | 10 | - |
| 200 | 12 | 10 | 8 | - | |
| 300 | 10 | 10 | 6 | - | |
| 400 | 9 | 8 | 5 | - | |
| 500 | 8 | 7 | 4 | - | |
| 600 | 7 | 6 | 3 | - | |
| LPE100L | 100 | 12 | 10 | 8 | 5 |
| 200 | 8 | 8 | 8 | 5 | |
| 300 | 5 | 5 | 5 | 4 | |
| 400 | 5 | 5 | 5 | 3 | |
| 500 | 5 | 5 | 4 | 2 | |
| 600 | 4 | 4 | 4 | 2 | |
Table 2: Amount of transported material taking inertia into account
| Model number | horizontal | vertical |
|---|---|---|
| LPE025HT | 50 | 25 |
| LPE050LT | 100 | 50 |
| LPE050HT | 100 | 50 |
| LPE100LT | 200 | 100 |

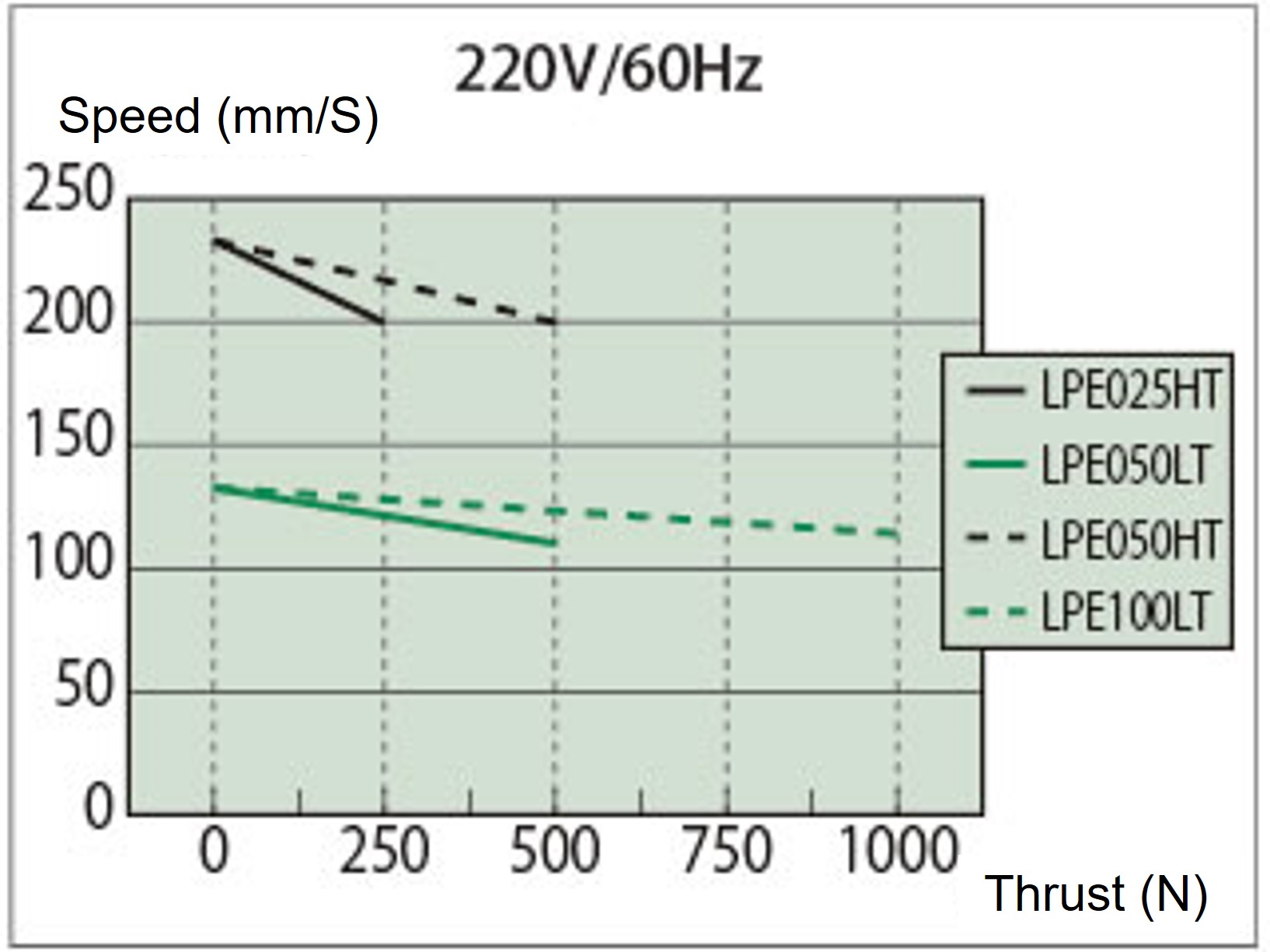

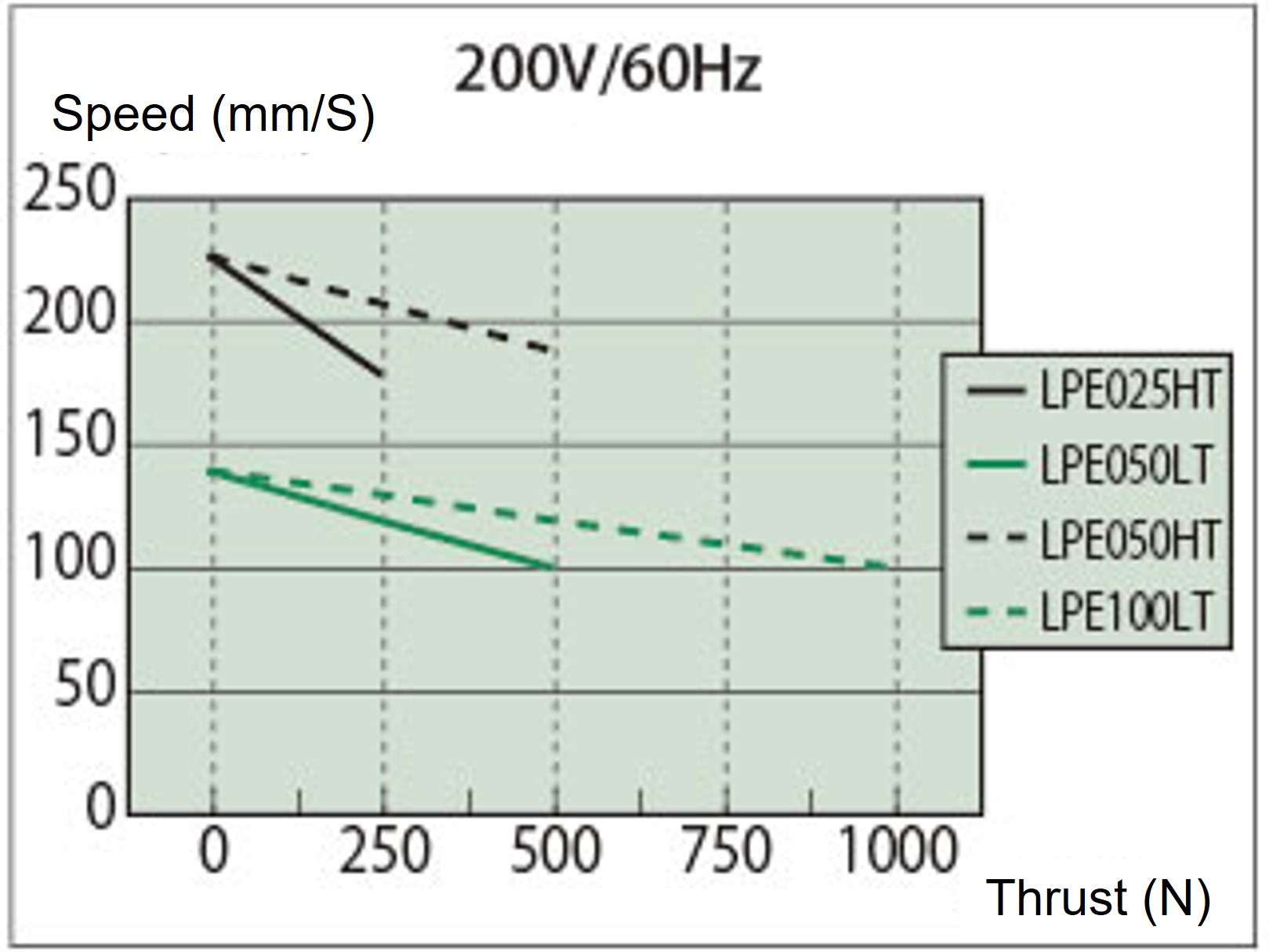

Figure 1 Thrust-velocity diagram
- *The data in Table 1 and Figure 1 above are values at an ambient temperature of 20°C. Values may change depending on ambient temperature and other conditions, so please use them as a guide only.
- *When selecting Power Cylinder, please select Power Cylinder with sufficient thrust, taking into account a safety factor, so that the working load (static and dynamic) does not exceed the rated thrust.
