Selection of Cable Carrier (CABLEVEYOR) Plastic Series
For TKP, TKC, TKMK, TKMT, TKR, TKQ, and TKUA types
Size determined by cable/hose storage space
Determining the inner height
Check the inner height of Cable Carrier (CABLEVEYOR) from the maximum outer diameter of the cable/hose (see catalog).
Determining the inner width
Check the inner width of Cable Carrier (CABLEVEYOR) based on the outer diameter and number of cables and hoses.
Cable Carrier (CABLEVEYOR) inner width ≧ Σ(outer diameter x 1.1) + partition plate thickness x number of partitions
Note) The installation dimensions of the partition board vary depending on whether it is sliding or fixed.

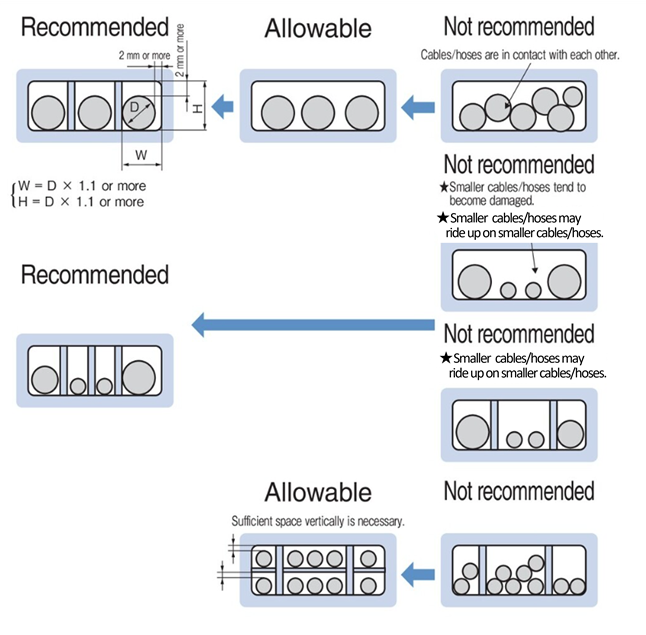

Correct cable and hose arrangement
Array Points
- ■Please ensure there is a gap between the outer diameter and inner width of the cable/hose.
- ■ Install cables and hoses in a single horizontal row.
- ■Avoid arranging cables/hoses in a way that causes them to interfere with each other.
- ■The number of cables and hoses should be within a range that does not apply excessive force to the cables and hoses.
- ■If the unit has a divider, please install the divider. Whenever possible, try to arrange the dividers so that there is one divider per space.
About the divider
Dividers are important parts for protecting cables and hoses. Please use dividers whenever possible and insert cables and hoses separately.
The role of the partition
- ■ Prevents cables and hoses from sliding against each other
- ■Prevents kinking of cables and hoses
- ■ Reducing noise on signal lines

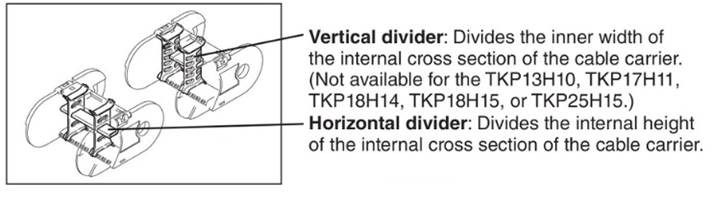

Vertical divider
- -Material: Engineering plastic
- - There are types that can slide horizontally and types that can be fixed (please refer to the page for each model).
- - Usually installed every two links.
- ・Delivered in parts.
- - Cases where vertical dividers are fixed: If the cables or hoses move around, the dividers may move, which may cause damage to the cables or hoses.
- - When installed horizontally or with a horizontal rotation, if the unit is a sliding type, the weight of the cables and hoses may cause the partition plate to move downwards, which may damage the cables and hoses.
- *Fixing spacers are available as an option for TKP45H25 and TKP58H39, so please contact us for details.
horizontal partition board
- -Material: Engineering plastic or aluminum
- ・Attach to vertical dividers. *Two or more vertical dividers are required.
- - The installation method varies depending on the shape of the vertical divider.
- -Install every two links.
- ・Delivered in parts.
*Please contact us for selection of TKV and TKI type Cable Carrier (CABLEVEYOR).
