sizing free flow chain

We will select the appropriate free flow chain based on your specified conditions.

Provisional selection of chain type

Please select the chain specification.

Chain Type

Chain specifications

Link plate type

Main body roller

Body roller lubrication

Conveyor roller

Conveyor roller lubrication


Please enter or select the conditions of use below and press the provisional selection button.

・Please use “.” for the decimal point and not “,” as the calculation error will occur.

Parallel/ single strand

2 parallel

single strand

If you are using three or more in parallel, please contact us at the following inquiry desk.

Conveying speed

m/min

(maximum 120)

Chain speed V

m/min

Total mass of transported items Wt

kg

PLEASE WAIT...

Velocity factor Kv
gravitational acceleration 9.80665
Friction coefficient f1
Friction coefficient f2
Friction coefficient f3
Maximum static tension kN
Chain size
Maximum allowable load kN
Approximate Mass kg/m
Pitch mm

A tentative selection was made.
Please check the allowable load of the roller below.

Check the allowable load

Check the allowable load

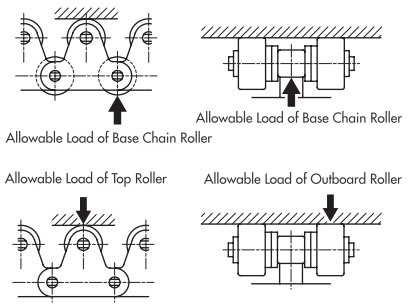

Roller allowable load

Chain size

The conditions for use are specified for single strand,
Please judge by dividing the value in the table above by 1/2.

Length of conveyed goods in the direction of travel  m
Amount of transported material/piece  kg
kN
kN

Roller allowable load

Proceed to the final selection

Make sure that the load on the roller is below the values in the table above.
If this value is exceeded, change to a chain size that can tolerate the load and then proceed with the final selection.

Calculation of maximum tension (F) acting on the chain

Please enter or select the conditions of use below and press the "Select" button.

Chain Type
Chain specifications
Link plate type
Main body roller
Body roller lubrication
Conveyor roller
Conveyor roller lubrication
Chain speed V
Total mass of transported items Wt
Velocity factor Kv
gravitational acceleration9.80665
Friction coefficient f1
Friction coefficient f2
Friction coefficient f3

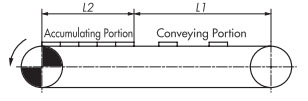

Length of conveying section L1  m
Accumulation section length L2  m
Amount of material transferred to the accumulator W2  kg/m
Number of items transported pieces
Weight of material conveyed in the conveying section W1 kg/m or Number of items transported pieces
Total mass of transported items  kg

There is a difference in the total mass of the transported items at the time of provisional selection.

PLEASE WAIT...

The selection has been completed. Please check the selection results below.

The provisionally selected model number does not have enough tension.
Change the provisionally selected chain size to a larger one and then perform the final selection.

Selection results

Parallel/ single strand Acting tension kN
(per bottle)		 Chain size Allowable tension
kN		 Tension margin Required power
kW

Make sure that the load on the rollers is within the allowable value.

Please note that this calculation result is an estimate and may not be usable depending on the operating temperature, environmental atmosphere, and other conditions.
