Application Examples Cam Clutch - 13. Index Table
application
Indexing
It is also called rotational intermittent feed.
The constant cycle motion of outer race is converted into intermittent rotational motion and transmitted to inner race (shaft).
This method involves repeated high frequency engagement and idling.
Compatible models
- ・ SR series
- ・ SRD series
Machines used
Index Table
Application Examples

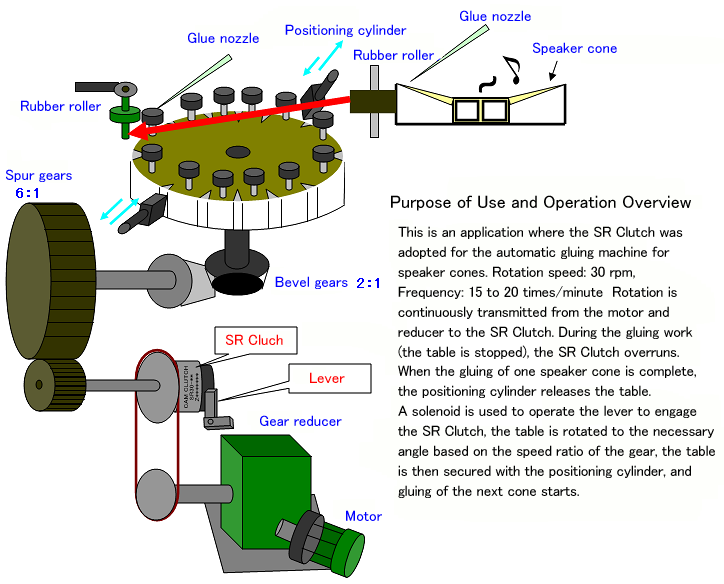

Layout
Tsubaki SR clutch
The SR clutch and SRD clutch are mechanical single-rotation clutches that rotate continuously with a simple lever operation.
This clutch gives one or an integer number of revolutions from outer race (drive side) to inner race (load side).
The SR clutch has no slippage and no cumulative error, allowing for precise timing.
Yes, it is possible. In addition, accurate positioning can be achieved by installing an auxiliary positioning device.
Benefits of using SR clutch
- - It is possible to perform precise operations that are not possible with friction mechanisms, ratchet mechanisms, etc.
- - Excellent responsiveness, no cumulative stopping position error, durability, and reliability.
