Purpose of use and operation explanation

Depending on the specifications of the equipment and the object to be treated, such as tempering treatment processes, long-term continuous operation is performed 24 hours a day.
There may be cases where this is the case.
Therefore, if there is a problem with the drive unit, it will lead to the equipment stopping, so as shown above, two drive units are installed as a standby system.
If an accident occurs on one drive (standby drive in this example), the other drive will be immediately switched to the other drive.
(This means that we may adopt this.)
The dual drive system allows operation to continue even if one of the drive sources experiences a problem with the other drive source.
You will be able to continue.

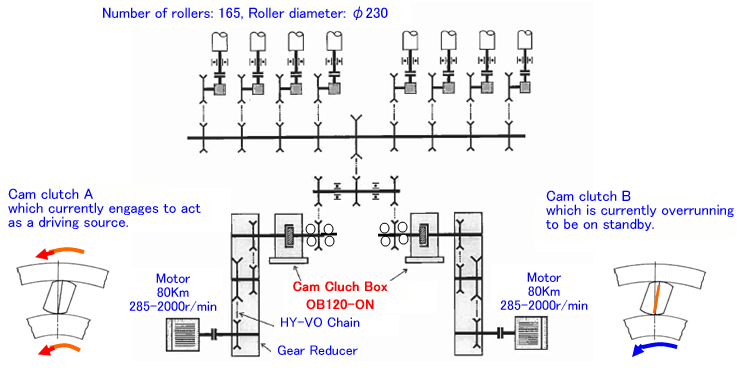

In the diagram above, Cam Clutch Box A on the left side is the meshing drive source, and Cam Clutch Box B on the right side is
It is idling and on standby.
If there is any trouble with the currently operating device on side A, the motor on side B will take over and start operation.
At this time, Cam Clutch Box B engages, Cam Clutch Box A rotates freely, and the edge with the motor on the A side
Cut it.

What is a cam clutch box that can operate continuously for long periods of time?

The cam clutch is housed in a case and an ideal lubrication method is used to ensure it can withstand continuous high-speed rotation.
It is a designed series.
The OB series, which mainly uses a cam clutch, is suitable for turning and inching operations when combined with an auxiliary reducer.
They are broadly divided into the TB series, which are suitable for
In addition, there are eight types depending on the combination of lubrication method and lubricant cooling device, and each type has several types
We offer a series of sizes, so you can select the most suitable specification for your usage conditions.

Advantages of Cam Clutch Box

• - Suitable for situations where lubrication changes cannot be made for one year.
