Purpose of use and operation explanation

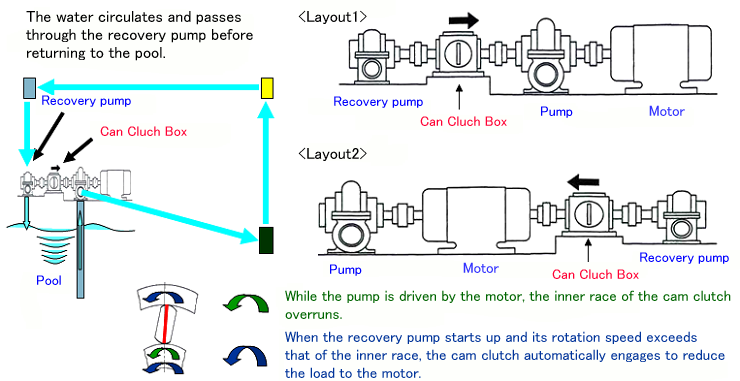

When the system is first started up, the motor starts the pump, and water is sent to each required point.
The water circulates through each section and returns to the pool, but at this time it is under high pressure.
The high pressure before the water returns to the pool is used to drive the recovery pump.
The cam clutch box runs idle while the motor is operating the pump.
When the speed reaches the motor speed, the cam clutch box automatically engages, reducing the load on the motor.
This reduces the motor's power consumption, saving energy and reducing CO2 emissions.

With Tsubaki Cam Clutch...

The Cam Clutch Box has sufficient lubrication oil in the case, and can be used in oil bath, self-lubrication, forced lubrication, etc.
It is possible to select the optimum lubrication condition according to the customer's usage conditions.
We also offer a wide range of sizes and lubrication conditions to suit torque capacity, meshing speed, and idling speed.
It is possible to receive it.
When used for turning operation, a cam clutch and worm gear reducer are combined.
You can choose the TB series.
A cam clutch and worm reducer are built in, allowing for a compact turning device.

Advantages of using a Cam Clutch

• - The cam clutch engages automatically, eliminating the need for any additional control devices.
• - Power can be transmitted with minimal loss, so it can be expected to be effective even in small-capacity equipment.
