Social Infrastructure

Power Infrastructure

Disaster prevention infrastructure

Water and sewerage infrastructure

Social Infrastructure
Transportation infrastructure products

To develop a more convenient and comfortable transportation network
Tsubaki products are used in a wide range of applications, including subway platform doors, airport boarding bridges, ETC lane opening and closing bars, and ship boarding bridge flaps.

Railways Expressways Airports Ports and Harbors Tunnels

Railway

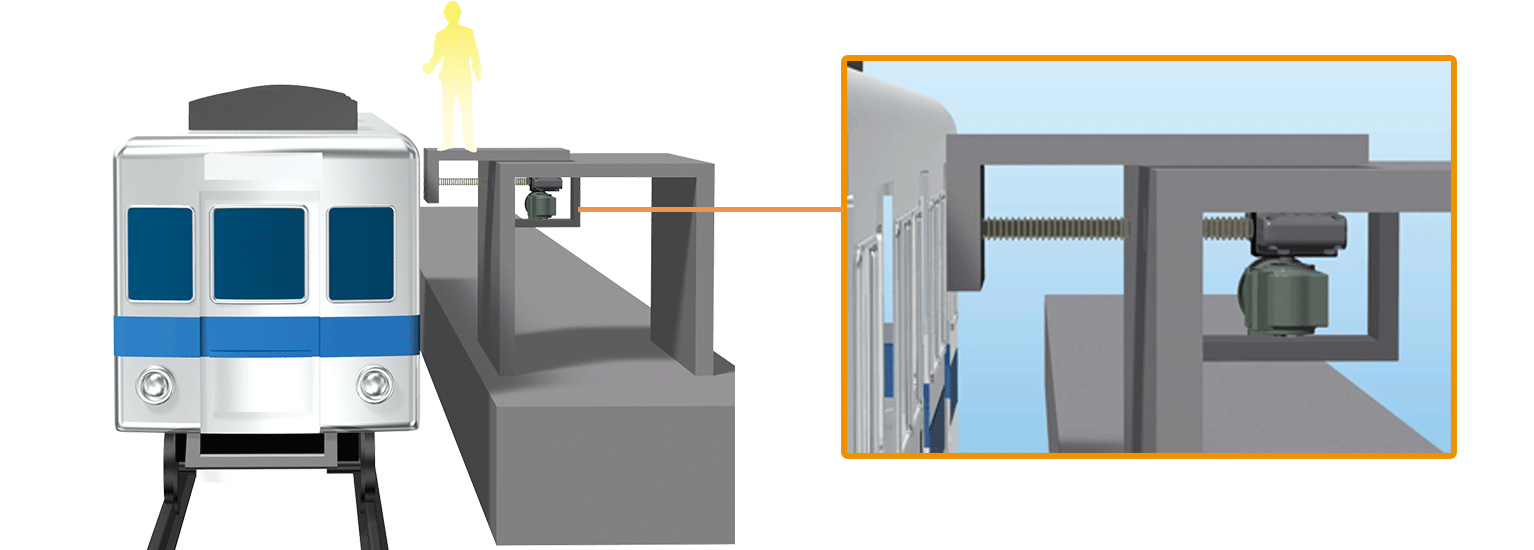

Platform doors

Synchronous Belts

A non-conductive function can be added to Synchronous Belts as a backup measure to prevent electric shock and malfunction of peripheral devices.

Product Info here

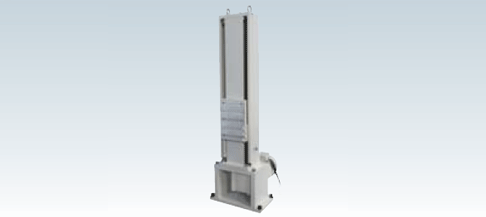

Zip Chain Actuator

It takes up far more space than hydraulic or pneumatic cylinders. In addition, it can be driven electrically, so no hydraulic unit is required.

Product Info here

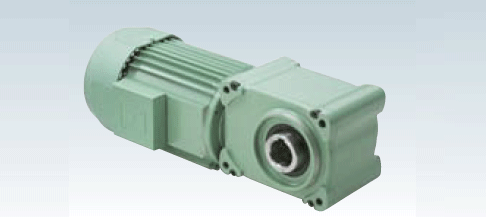

gear motor

We have a wide selection of gear motors. We recommend the highly efficient and compact Hypoid Motor. Reducers with DCBL Hypoid Motor are also available.

Product Info here

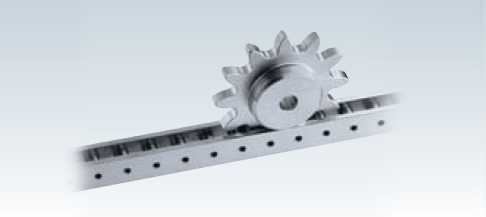

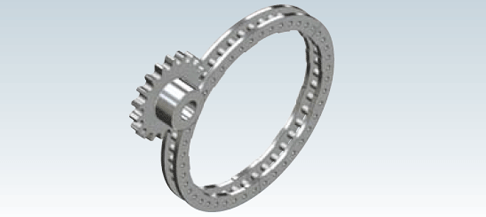

Pin gear drive Unit

Compared to rack-type systems, it can be installed with less precision, significantly reducing installation time. Stainless steel specifications and various surface treatments are also available to improve environmental resistance.

Product Info here

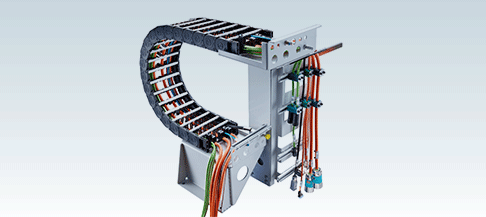

Cable Carrier (CABLEVEYOR)

You can choose from a wide range of series in terms of size, shape, material, etc. We also offer TOTALTRAX, which delivers Cable Carrier (CABLEVEYOR) and cables as a set.

Product Info here

Vehicle Depot

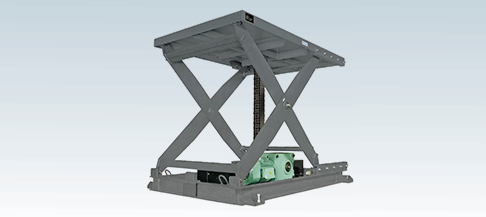

Lift Master

Lifting a vehicle reduces work efficiency and requires the operation of a qualified person for safety reasons. The cantilevered Lift Master is easy to operate and provides a safe working environment.

Product Info here

Zip Chain Lifter

Compared to hydraulic lifters, the lifting device has a self-holding mechanism and can perform accurate positioning even under heavy loads.The low floor allows for space savings, including the mechanism that separates the carriage from the wheels.

Product Info here

Zip Chain Actuator

Zip Chain Actuator is low-profile and compact, so it can be installed in narrow spaces without digging a pit. If the required thrust is insufficient, two units can be linked together to meet the demand. It can also be installed in places with limited space, such as on the ceiling.

Product Info here

gear motor

We have a wide selection of gear motors. You can select the capacity and reduction ratio that is best suited to your drive unit.

Product Info here

Expressway

ETC Gate

Shock Guard

A mechanical overload protection device is used to prevent the gate from opening incorrectly and damaging or damaging the vehicle body.

Product Info here

gear motor

We have a wide selection of gear motors. We recommend the highly efficient and compact Hypoid Motor. Reducers with DCBL Hypoid Motor are also available.

Product Info here

airport

boarding bridge

Power Cylinder

Compared to hydraulic cylinders, they do not require large-scale equipment such as hydraulic pumps or piping, are easy to maintain, and there is no risk of environmental pollution due to oil leaks.

Product Info here

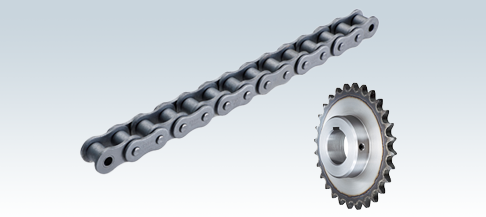

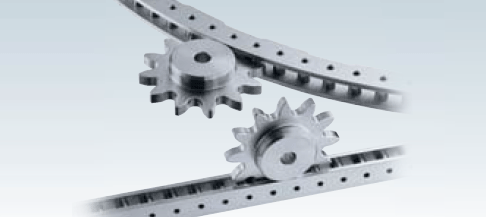

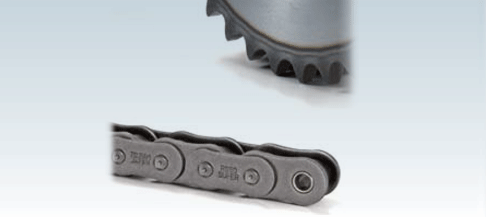

Drive chain & sprocket

Tsubaki Drive chain and sprockets are used for the drive. In environments where rust is likely to occur, NEP Series Surface treated drive chain which has excellent corrosion and chemical resistance, is ideal.

Product Info here

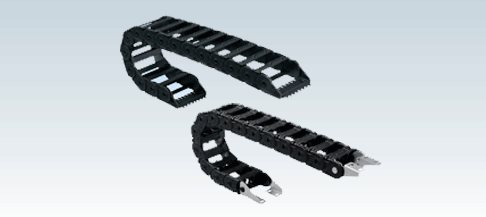

Cable Carrier (CABLEVEYOR)

The open type of Plastic Series (TKP Series, TKUA Series) is widely used. For use with Long travel length, Gliding arrangement specifications are also available.

Product Info here

Port facilities

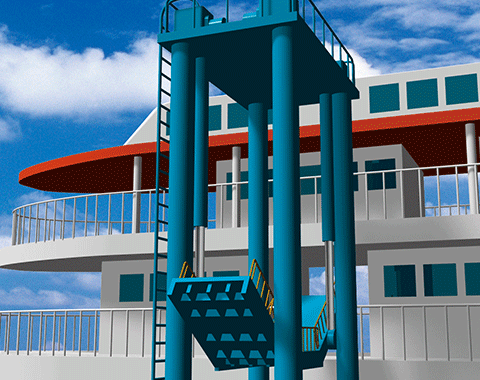

Ship boarding bridge

Power Cylinder

Compared to hydraulic cylinders, they do not require large-scale equipment such as hydraulic pumps or piping, are easy to maintain, and there is no risk of environmental pollution due to oil leaks.

Product Info here

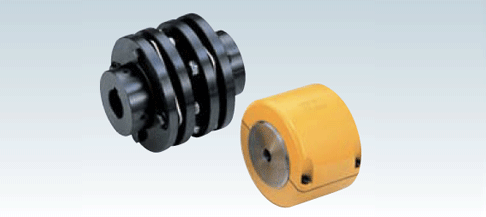

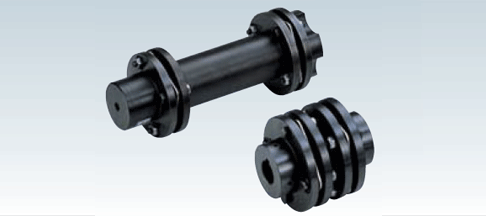

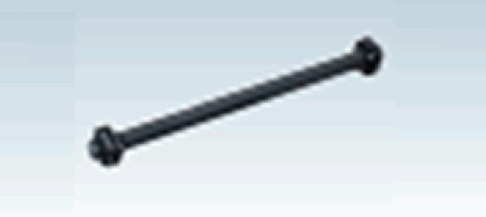

Coupling

For connecting multiple Power Cylinder, we recommend a long spacer disc coupling, which does not require an intermediate bearing and allows the spacer part to be used in a floating state.Electroless nickel plated and stainless steel specifications suitable for outdoor environments are also available.

Product Info here

tunnel

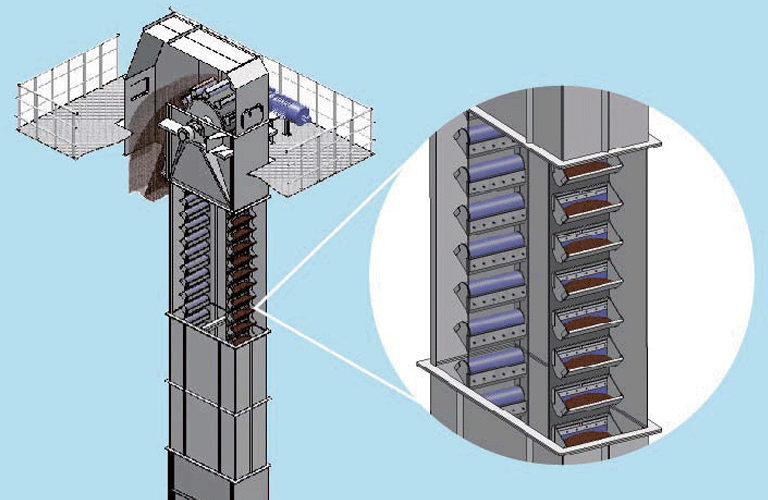

Bucket elevator for discharging soil and sand

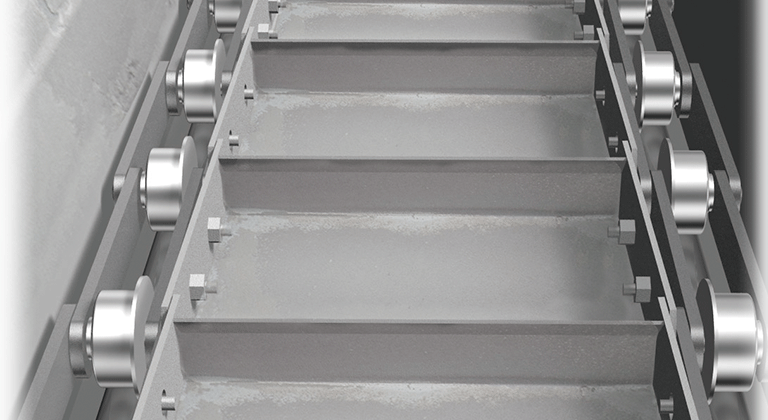

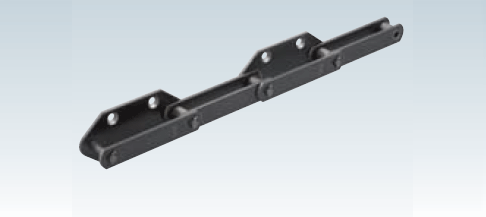

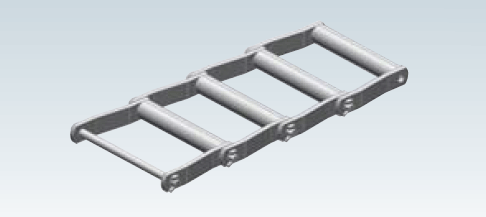

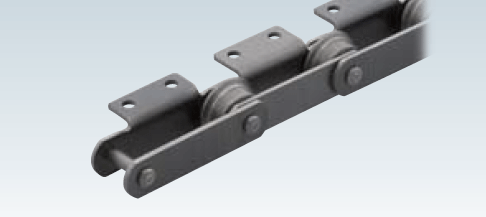

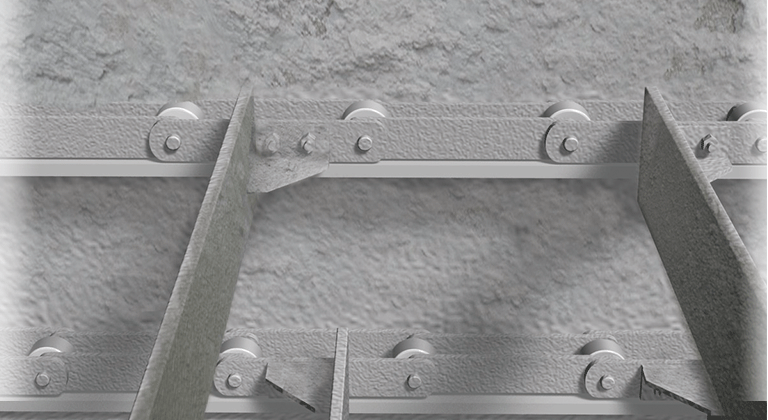

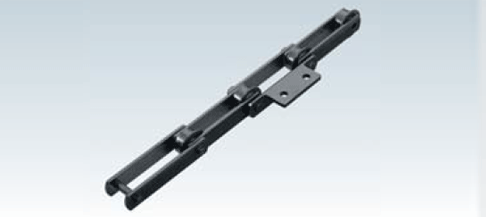

Large size conveyor chain

We will propose chains that are suited to the environment and soil characteristics, which will contribute to reducing total costs.

Product Info here

Drive chain & sprocket

Heavy duty drive chain and sprockets with high Maximum allowable load are used to drive elevators. We recommend using durable sprockets (TOUGH TOOTH) for RS-HT chain.

Product Info here

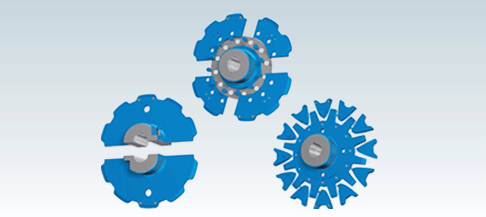

Large size conveyor chain sprockets

If the tooth replacement type or split type is used, it can be replaced without removing the shaft, which significantly reduces the labor and costs involved in replacement.

Product Info here

Cam clutch

A cam clutch is used to prevent the bucket elevator from rotating backward. In addition to its proven track record, dustproof measures and a special cam design mean it can be used safely even in dusty environments.

Product Info here

Segment transport crane

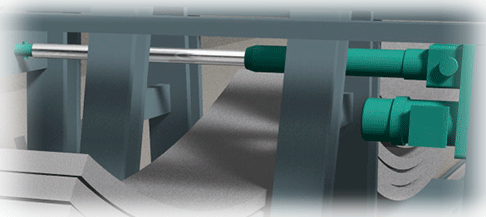

Power Cylinder

Power Cylinder are used to drive the gripping arms of segment transport cranes. Compared to hydraulic cylinders, they reduce the risk of oil adhering to the segments.

Product Info here

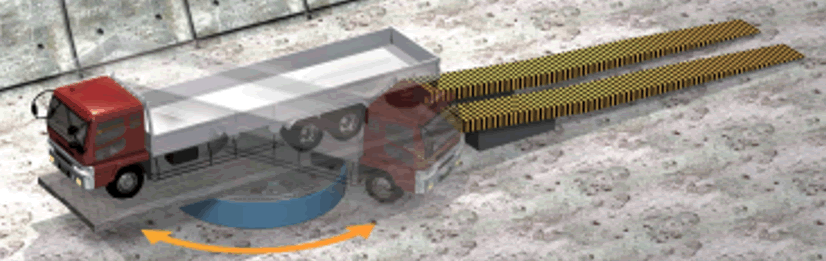

Truck turntable

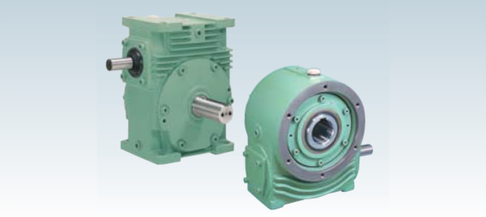

Worm Power Drive

A high-precision, compact Worm Power Drive is ideal for driving turntables.

Product Info here

Pin gear drive Unit

It is easier to set up than chain and rack and gear types, reducing installation time.

Product Info here

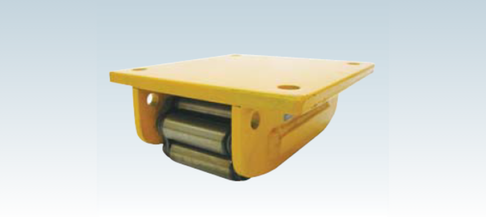

Toughroller

Toughroller are recommended when you need to move a cart on a turntable in a narrow space inside a tunnel.

Product Info here

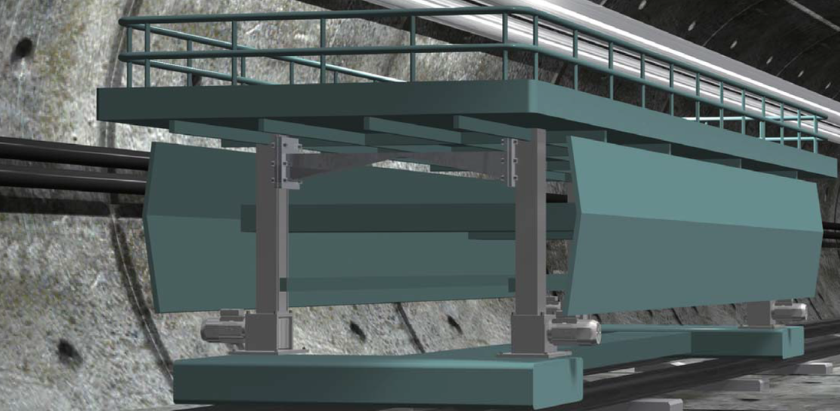

Tunnel wall inspection workbench

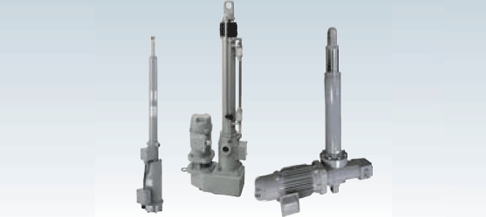

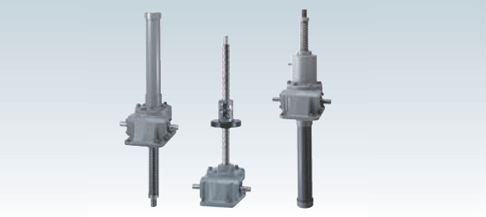

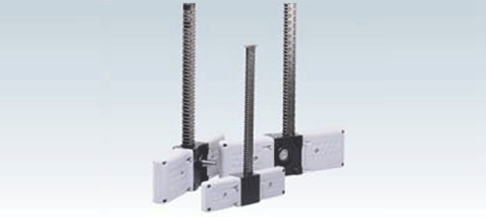

Linipower Jack

Linipower Jack are used for lifting and lowering the scaffolding of work platforms for inspecting the inner walls of tunnels, and as a mechanism for keeping the scaffolding level against the inclination of the tracks. Linipower Jack are ideal for securely holding loads and determining the stopping position.

Product Info here

gear motor

A wide range of gear motors are available. You can select the optimum reduction ratio for driving Linipower Jack.

Product Info here

Coupling

When connecting multiple Linipower Jack jacks, we recommend using a long spacer disc coupling, which does not require an intermediate bearing and allows the spacer portion to be used in a floating state.

Product Info here

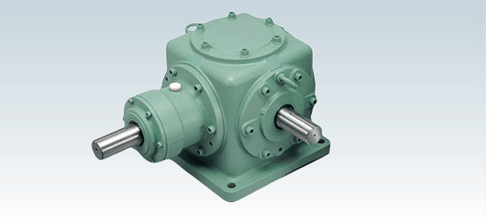

Miter Gear Box

By connecting multiple Miter Gear Box to one drive source, multiple Linipower Jack can be operated in unison.

Product Info here

Social Infrastructure
Power infrastructure products

Tsubaki products are also used in the field of renewable energy, including wave power, hydroelectric power, biomass power, and solar power generation.

Wave power generation Hydroelectric power generation Biomass power generation Other electricity

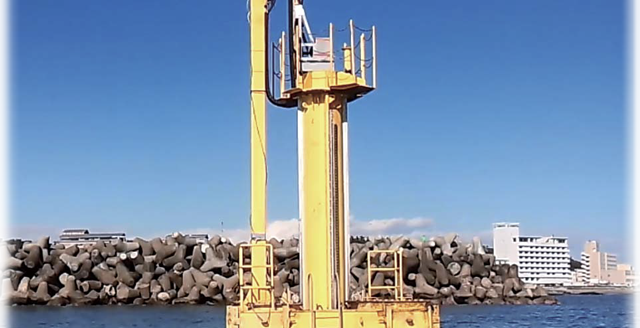

Wave power generation

Tsubaki products are incorporated into the wave power generation equipment implemented by the Mitsui Engineering & Shipbuilding Group as part of a Ministry of the Environment project*.

* FY2013-2015 CO2 Emissions Reduction Strengthening Induced Technology Development and Demonstration Project/Technology Development and Demonstration Project for Small and Highly Efficient Wave Power Generation Systems

Cable Carrier (CABLEVEYOR)

It is used to protect generator cables that move up and down due to the force of waves.It has a proven track record and is widely used in applications such as general industrial machinery.

Product Info here

Coupling

Roller chain coupling are used where large allowable torque is required, and ECHT-FLEX R couplings are used where no lubrication is required.

Product Info here

Pin gear drive Unit

To transmit the power of the waves to the generator, Pin gear drive unit R, which is capable of transmitting large torque, is used. Also, since the environment requires high corrosion resistance, a highly rust-proof specification is used.

Product Info here

Hydroelectric power

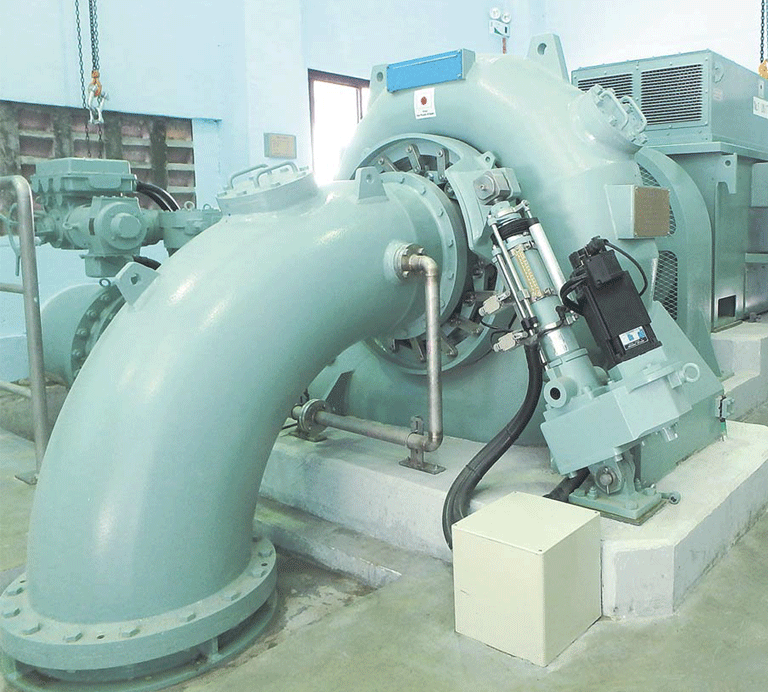

Francis turbine

Power Cylinder

Power Cylinder, which have a proven track record, are used to adjust the guide vanes of Francis turbines.

Product Info here

Linipower Jack

The proven Linipower Jack is used to adjust the angle of the runner (water turbine blade) vanes.

Product Info here

Biomass power generation

Receiving hopper conveyor

Drag chain WD type

Tsubaki's unique simple structure allows us to propose solutions to problems such as strong specifications and corrosion prevention measures. Dedicated sprockets are also available.

Product Info here

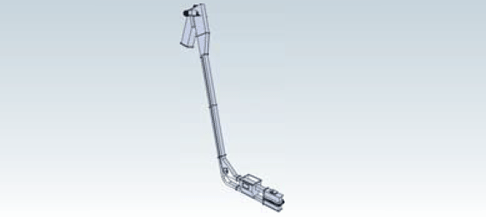

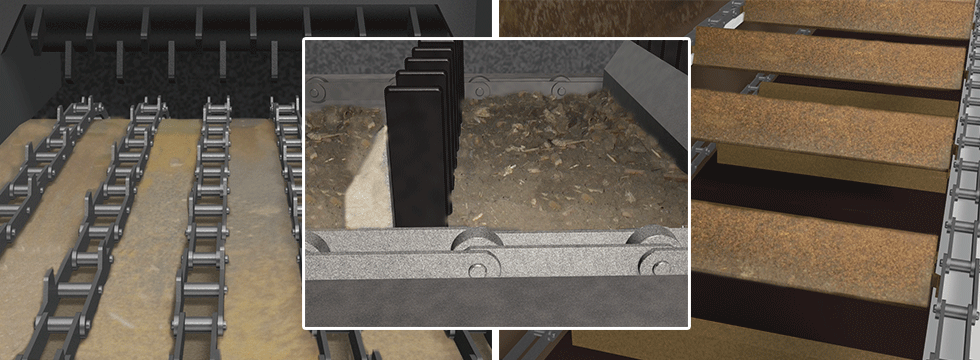

Fuel transport/wood chip collection/chain feeder

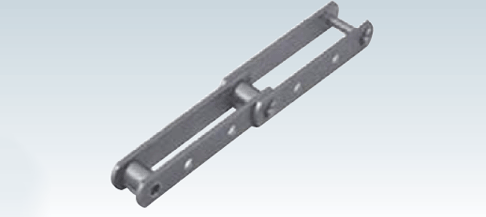

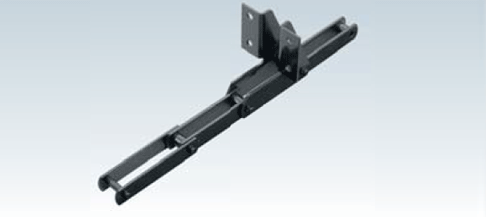

Large size conveyor chain

We will propose the optimum specifications for your environment. We also handle replacement of chains made overseas.

Product Info here

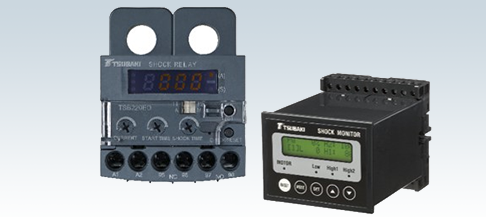

Shock Relay / Shock Monitor

By monitoring the motor's current and power, overloads can be detected quickly, preventing accidents before they occur.

Product Info here

NFV Flight Vehicle

The flights attached to the two chains in the sealed case reliably transport the goods on the horizontal section using the principle of a flow conveyor, and on the vertical section using the principle of a bucket elevator.

Product Info here

Ash transport conveyor/flight conveyor

Large size conveyor chain

Anti-corrosion measures and optimal clearance settings extend the life of the chain, allowing for total cost reductions.

Product Info here

Large size conveyor chain sprockets

If the tooth replacement type or split type is used, it can be replaced without removing the shaft, which significantly reduces the labor and cost required for replacement.

Product Info here

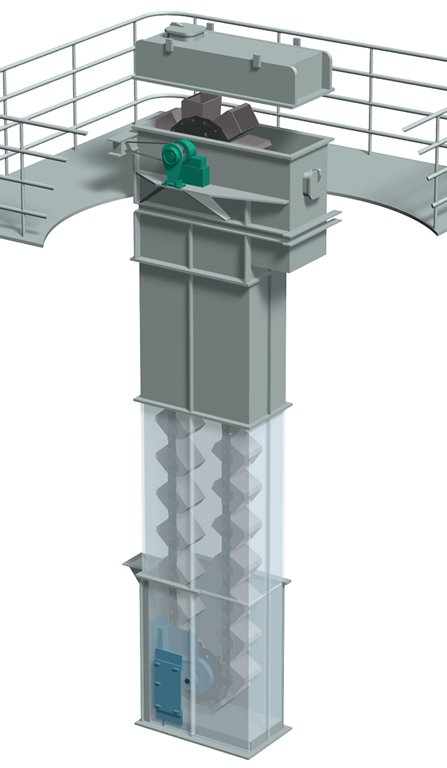

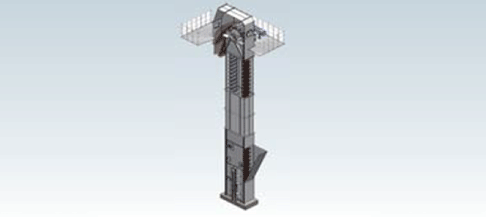

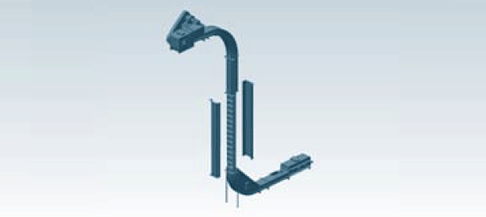

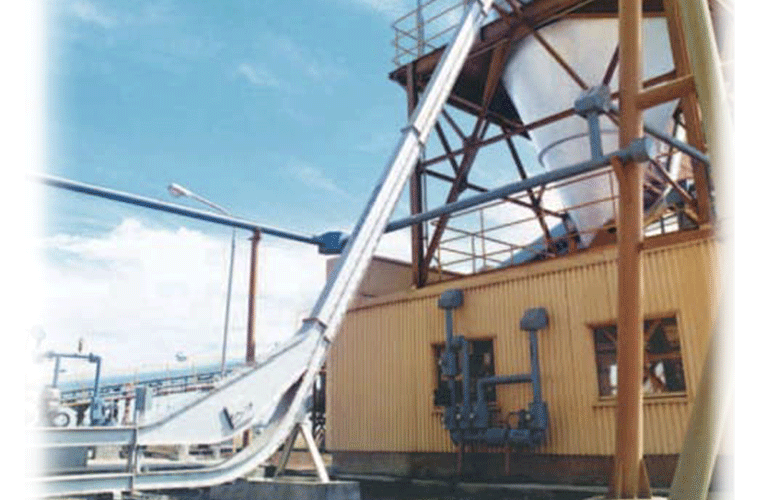

Bucket elevator/flow/flightveyor

NBK (PKS only) Bucket Elevator

This is a belt-type bucket elevator exclusively for PKS, which is compact yet capable of large-capacity transport.

Product Info here

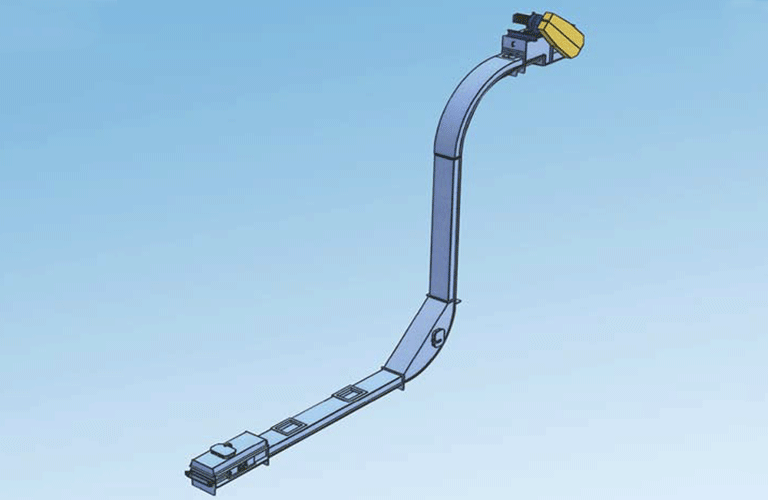

LC Flow

This conveyor prevents items from getting caught and saves space, which is required for transporting wood biomass.

Product Info here

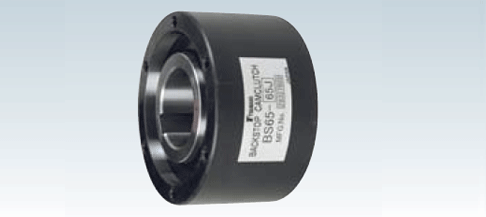

Cam clutch

High reliability is achieved through thorough dust prevention measures and a dedicated cam to prevent reverse rotation in bucket elevators, etc.

Product Info here

One-touch window

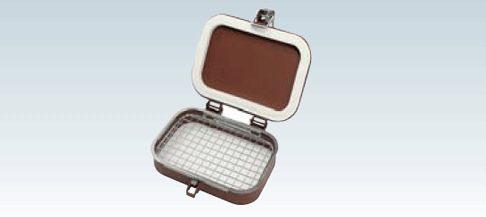

Our safety series also includes windows with screens (roller catch type, bolt type), retrofit screen T-guards (retrofit screens) that do not require welding, and special one-touch windows (with locks).

Product Info here

Other electricity

Tidal power generation

​Cam clutches and other devices are used for ON/OFF of tidal + offshore wind hybrid types.

Solar power generation

​Gear motors and Power Cylinder are used for the rotation and tilting operations to follow the position of the sun.

Solar thermal power generation

​Pin gear drive unit, gear motors, Power Cylinder etc. are used for the rotation and tilting motion of the heliostud drive.

Geothermal power generation

​ECHT-FLEX couplings and other products are used in cooling towers, which are essential for geothermal power generation.

Social Infrastructure
Disaster prevention infrastructure products

Tsubaki products are also used in the field of disaster prevention equipment to protect people's lives from tsunamis and floods.

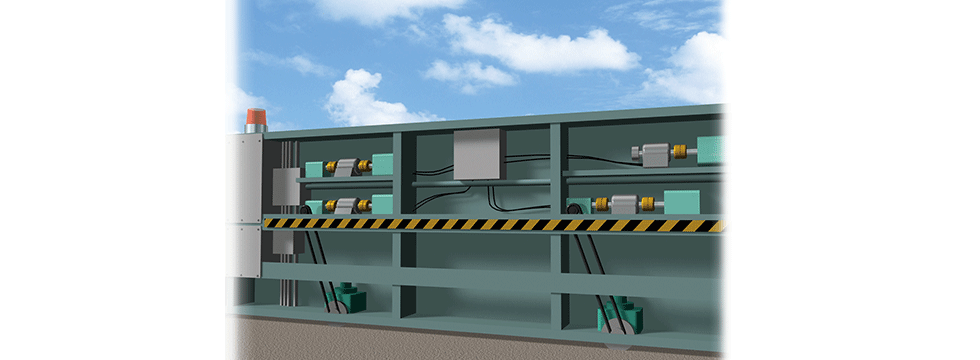

Water gate/gate water stop device

Water Gates

Large sliding gate

gearbox

As a countermeasure in case of power loss, Miter Gear Box is used to drive the manual shaft.

Product Info here

Coupling

Chain couplings are used to connect the motor to the electromagnetic clutch and reducer. Stainless steel couplings can also be manufactured to protect against salt damage in coastal areas.

Product Info here

Drive chain & sprocket

Tsubaki Drive chain and sprockets are used to drive the wheels. In environments where rust is likely to occur, NEP Series Surface treated drive chain which has excellent corrosion and chemical resistance, is ideal.

Product Info here

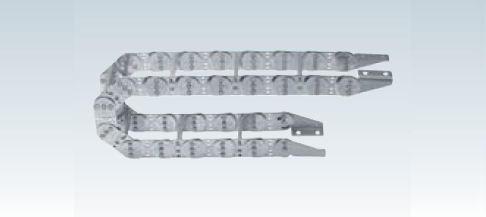

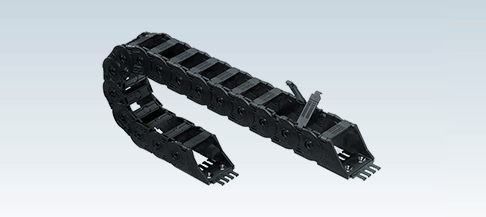

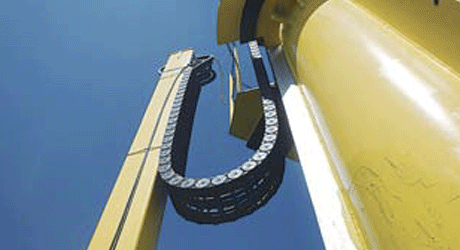

Cable Carrier (CABLEVEYOR)

The TK type steel series is used. In environments where rust is likely to occur, we recommend the stainless steel type, which has excellent corrosion resistance.

Product Info here

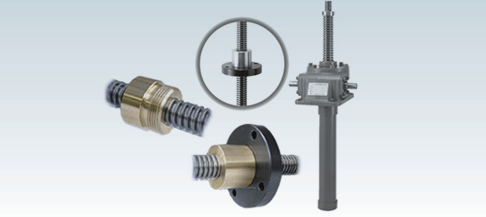

Linipower Jack

Linipower Jack are used to lift the wheels to fill the gap between the ground and the floodgate. Stainless steel screw versions are also available to protect against salt damage in coastal areas.

Product Info here

Small horizontal gate

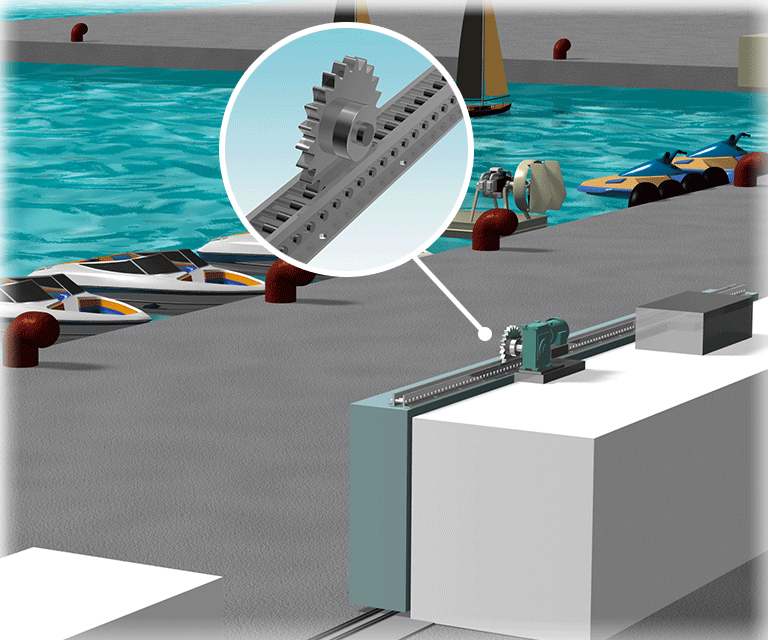

Pin gear drive unit for water gates and movable weirs

We offer a series made of stainless steel (SUS304) that conforms to the draft technical standards for dam and weir facilities.You can use it as is without the need for complicated strength calculations or confirmations.

Product Info here

Hypoid Motor

Please use our wide selection of Hypoid Motor for the drive section of Pin gear drive unit.

Product Info here

Roller gate (rest hook)

Linipower Jack / Power Cylinder

Linipower Jack and Power Cylinder are used to attach and detach rest hooks to prevent gates from falling. Linipower Jack can also be manufactured with stainless steel screws.

Product Info here

Product Info here

Water stop device

Power Cylinder

Compared to hydraulic or water hydraulic cylinders, it is easy to obtain stable thrust and speed. Telescopic cylinders also allow for space savings.

Product Info here

Zip Chain Actuator

Compared to hydraulic, pneumatic, and electric cylinders, it takes up far less space and multiple units can be linked together. Because it can be driven electrically, there is no need for a hydraulic unit.

Product Info here

gear motor

We have a wide selection of gear motors. You can choose the capacity and reduction ratio that is best suited to the drive unit, and we also offer waterproof types with brakes.

Product Info here

ECHT-FLEX Coupling

For connecting multiple Power Cylinder, we recommend a long spacer disc coupling, which does not require an intermediate bearing and allows the spacer portion to be used in a floating state. Electroless nickel plating and stainless steel specifications are also available.

Product Info here

Social Infrastructure
Water supply and sewerage
Infrastructure products

Tsubaki products are also used in water supply and sewerage facilities, which are the foundation of our lives.

Dust remover , dewatering machine, sludge transport , sand basin, sand washing machine (trommel)

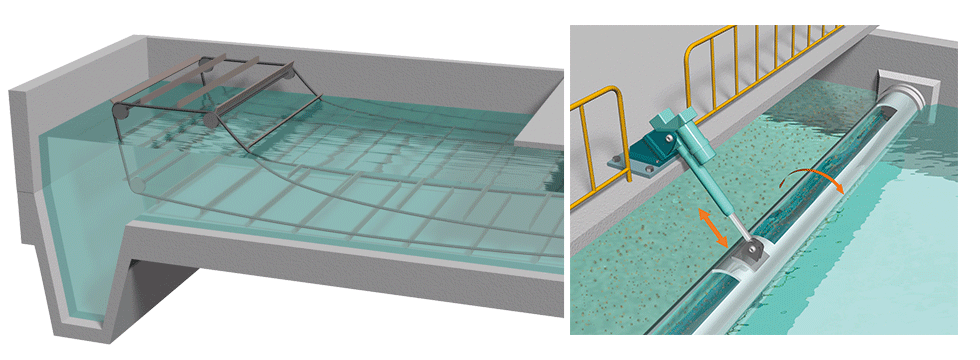

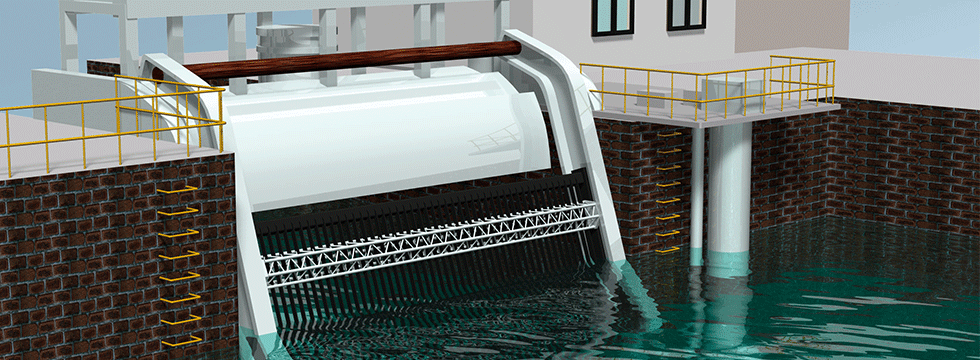

Water screen

Water Treatment Chains & Sprockets

We offer a lineup of chain specifications that are optimal for different environments and applications.

Product Info here

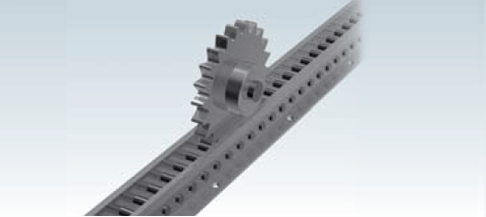

Pin gear drive Unit

Two types of pin racks are standardized: flat and angle. We also offer variations with improved corrosion resistance, such as specially coated, highly rust-resistant specifications, and stainless steel series.

Product Info here

Power Cylinder

Power Cylinder are used for opening and closing the rake arms, etc. Because they are electrically operated, there is less risk of oil leaking into the sea or rivers compared to hydraulic systems.

Product Info here

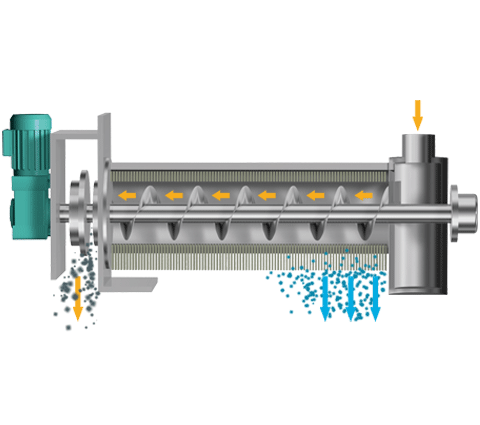

Dehydrator/Sludge transport

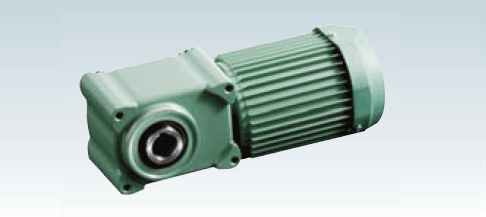

gear motor

We have a wide selection of gear motors. You can select the capacity and reduction ratio that is best suited to your drive unit.

Product Info here

MFV Flight Veyor

The Tsubaki MFV Flight Veyor is a conveyor suitable for transporting muddy materials such as sludge. It can transport materials along horizontal + vertical + horizontal routes with a single unit, and has good discharge properties.

Product Info here

Dehydrator/Sludge transport

Sediment Collector Chain and sprocket

The sludge scraper uses chains made of engineering plastics that are highly resistant to corrosion and wear. We also offer chains made of refined stainless steel that are highly resistant to wear and corrosion.

Product Info here

Drive chain & sprocket

Tsubaki Drive chain and sprockets are used for the drive. In environments where rust is likely to occur, NEP Series Surface treated drive chain which has excellent corrosion and chemical resistance, is ideal.

Product Info here

Power Cylinder

A special Power Cylinder is used to adjust the scum intake angle of the scum skimmer. Because it is electrically operated, there is no need for troublesome oil changes, reducing the number of man-hours required.

Product Info here

gearbox

We can also manufacture Miter Gear Box that can be used underwater for sediment collectors.

Product Info here

Sand washing machine (trommel)

Pin gear drive Unit

It is easy to install and can be supplied in sizes that match the outer diameter. Highly rust-proof specifications with improved corrosion resistance and stainless steel specifications are also available.

Product Info here

gear motor

Our wide selection of gear motors is ideal for the drive section of Pin gear drive unit.

Product Info here
