technical data linear actuator Power Cylinder Selection
Selection: F Series
Requirements
Machines used and how to use them
Thrust or load N{kgf}
Stroke mm
Speed mm/s
Frequency of use Number of starts/min
Power supply voltage, frequency
Selection Procedure
- (1) Select the applicable model number from the standard models based on the thrust or load N{kgf}, stroke mm, and speed mm/s.
- (2) The allowable frequency of use should be 2 times/min, and the allowable Percentage duty cycle should be 25%ED (5 minutes standard) or less.
Percentage duty cycle is the percentage of operation time per 5 minutes, based on a 5-minute period.
The allowable operating frequency of Power Cylinder F Series is within the range that satisfies the number of starts and Percentage duty cycle shown in the table above. Percentage duty cycle is expressed by the following formula.
Percentage duty cycle (%ED) = Operation time per cycle Operation time per cycle + Down time x 100%
Estimated life span
The estimated lifespan is 15,000 strokes.
*When selecting Power Cylinder, please select Power Cylinder with sufficient thrust, taking into account a safety factor, so that the working load (static and dynamic) does not exceed the rated thrust.
*Please be sure to read the following precautions.

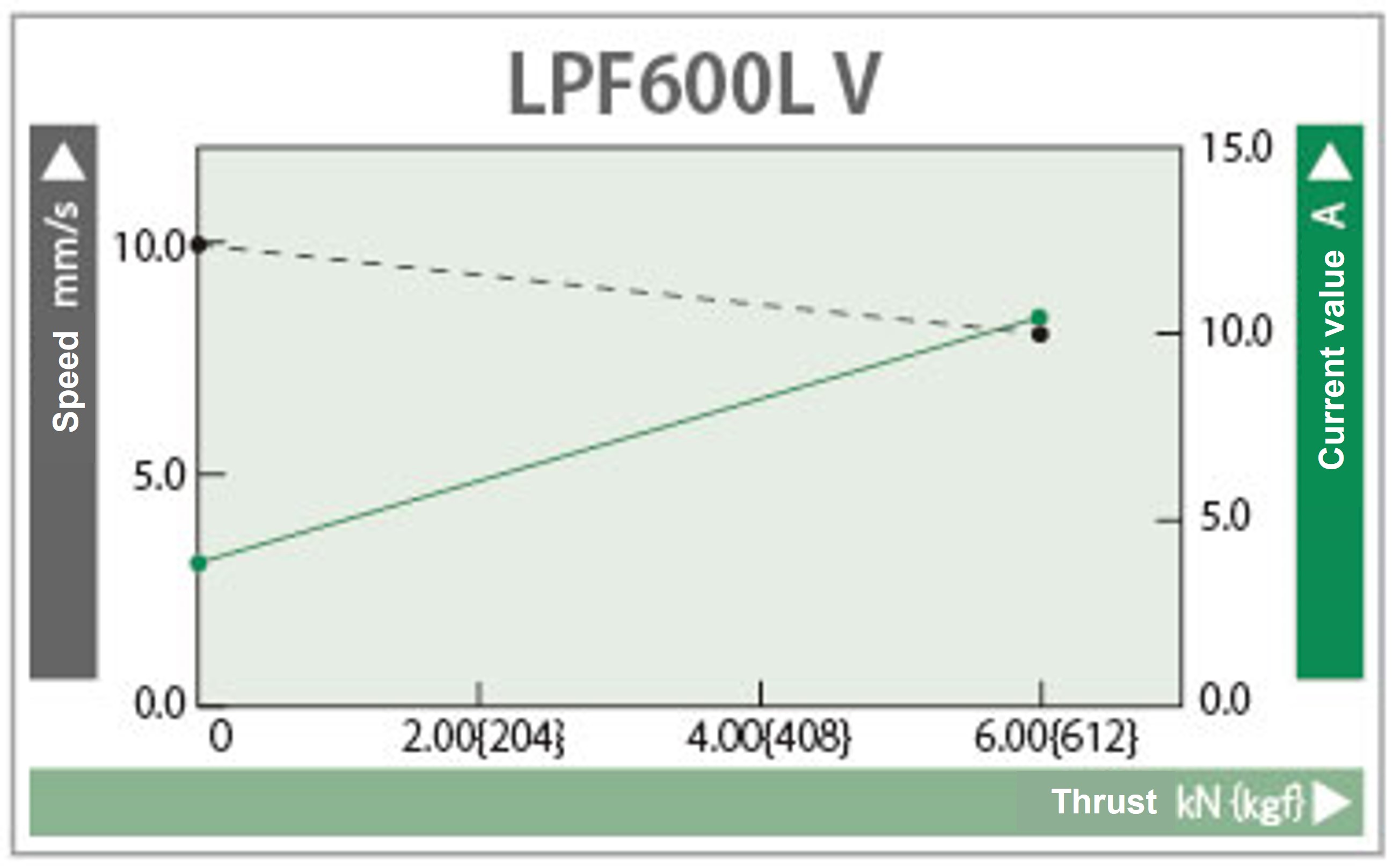

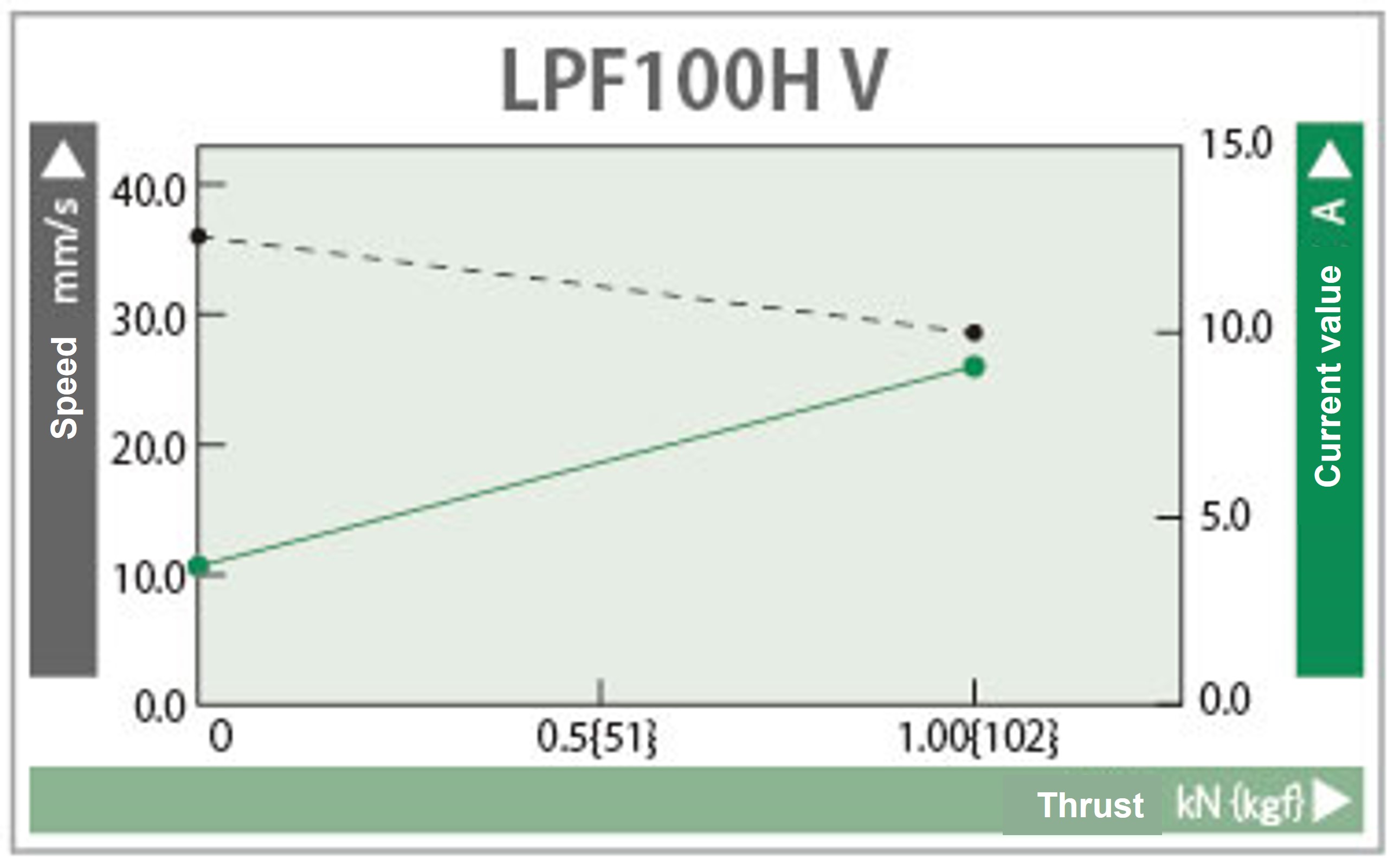

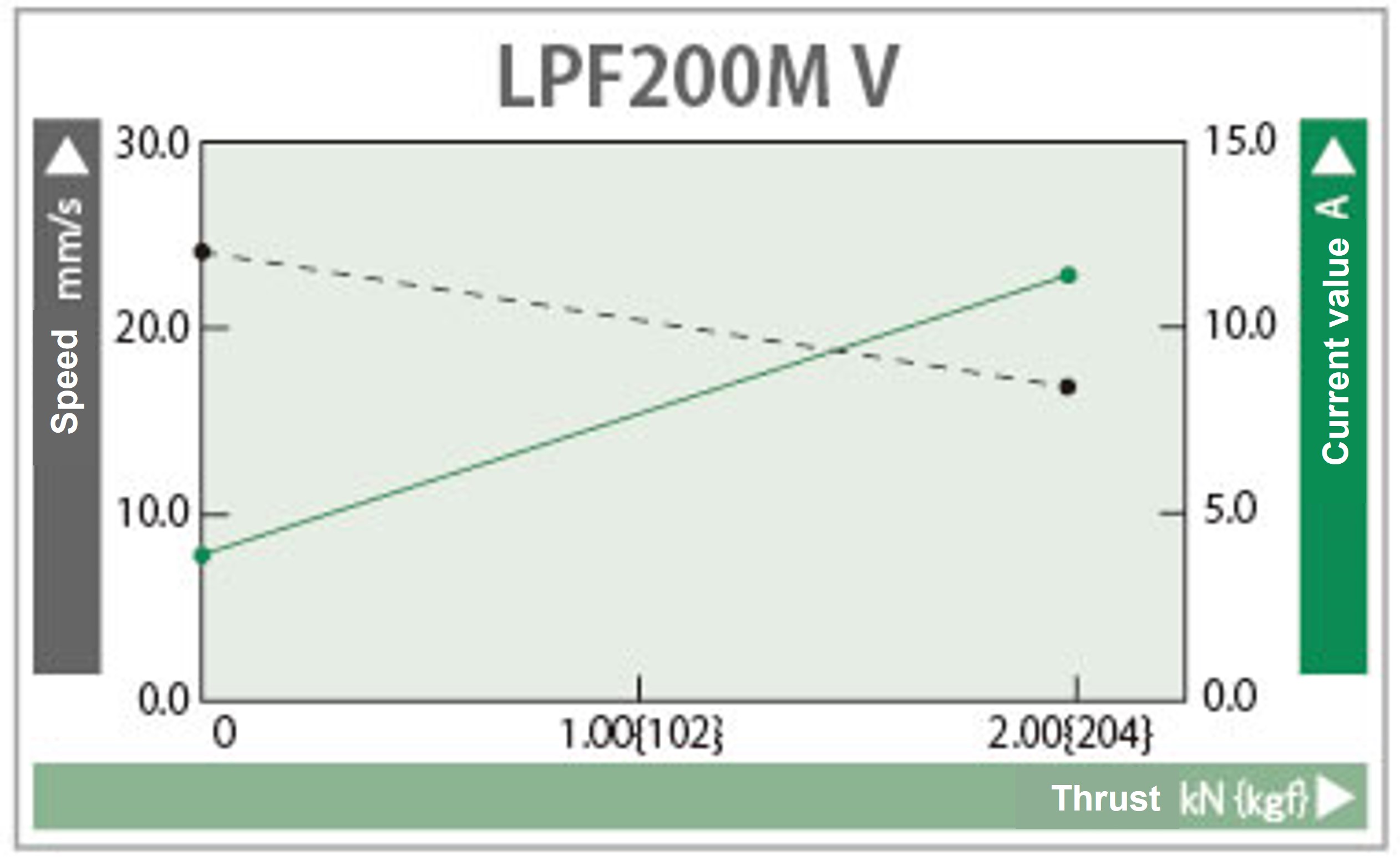

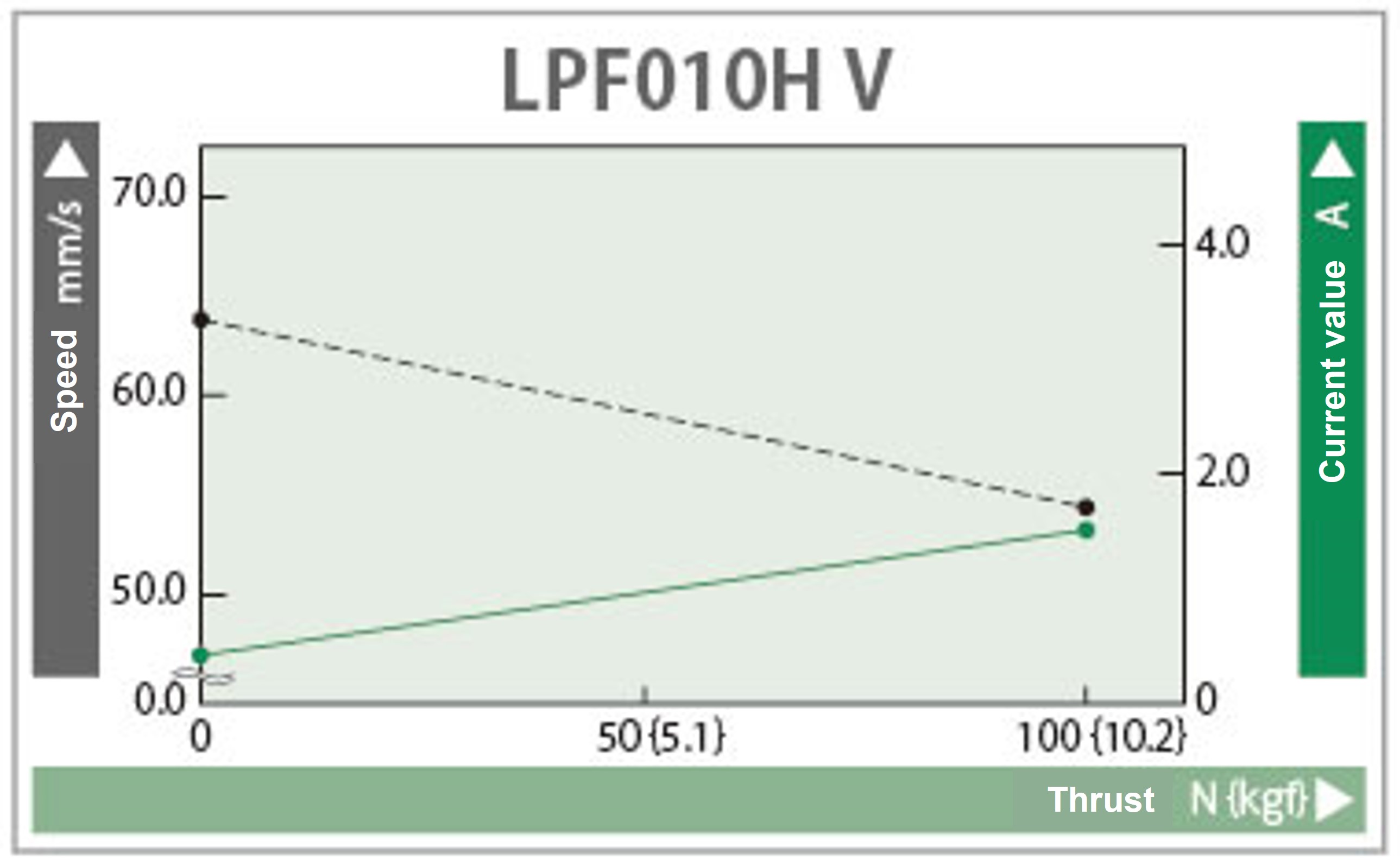

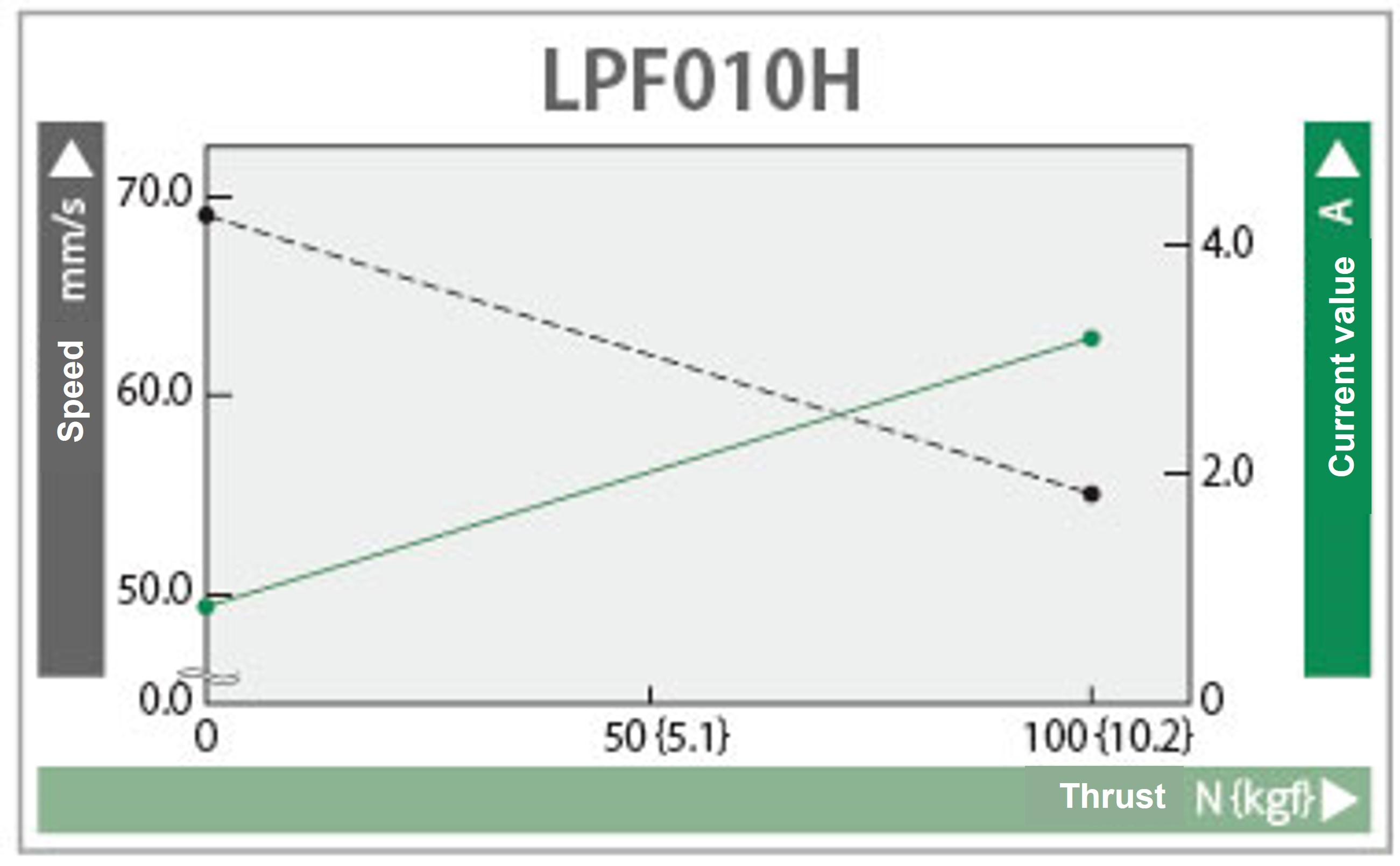

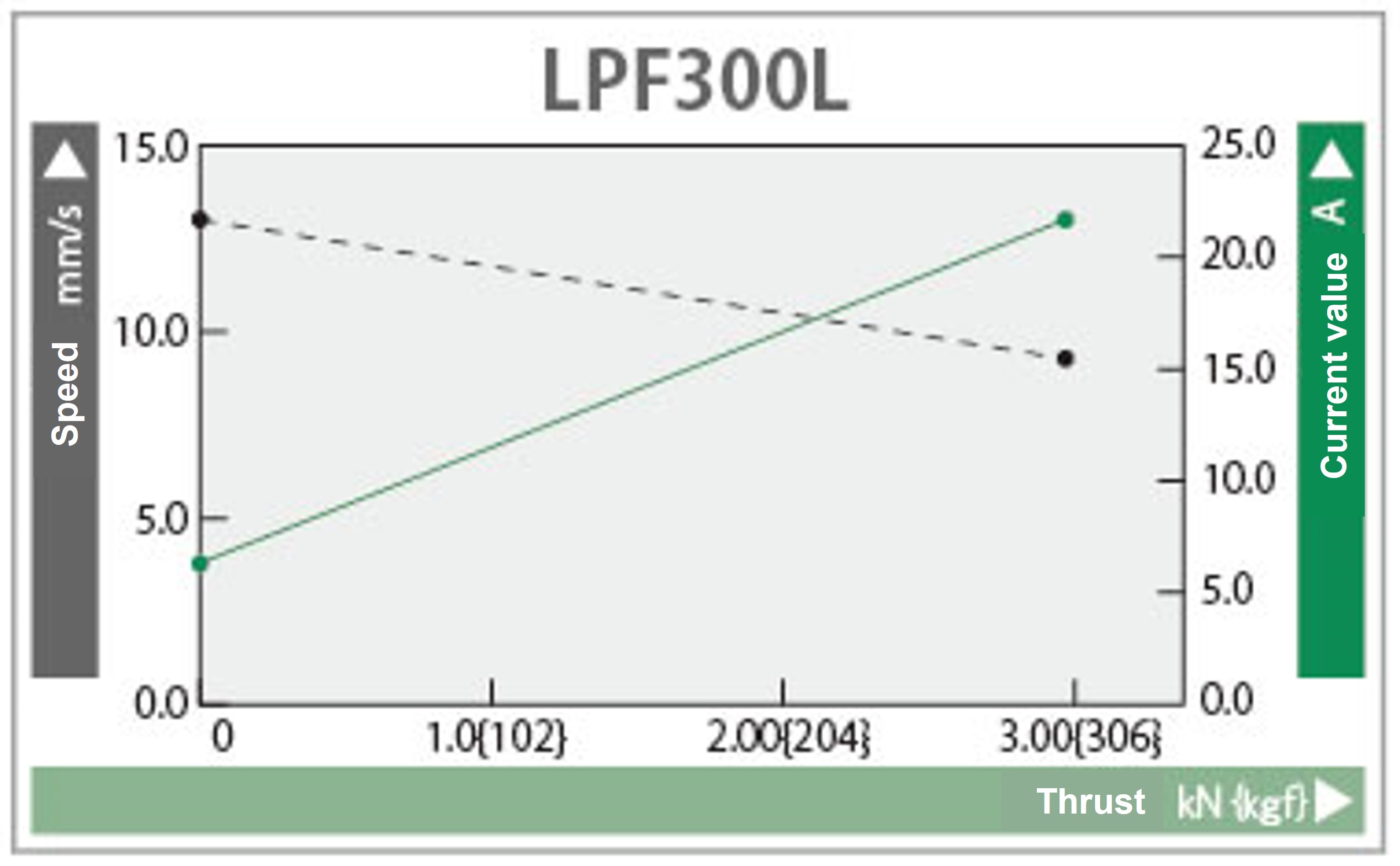

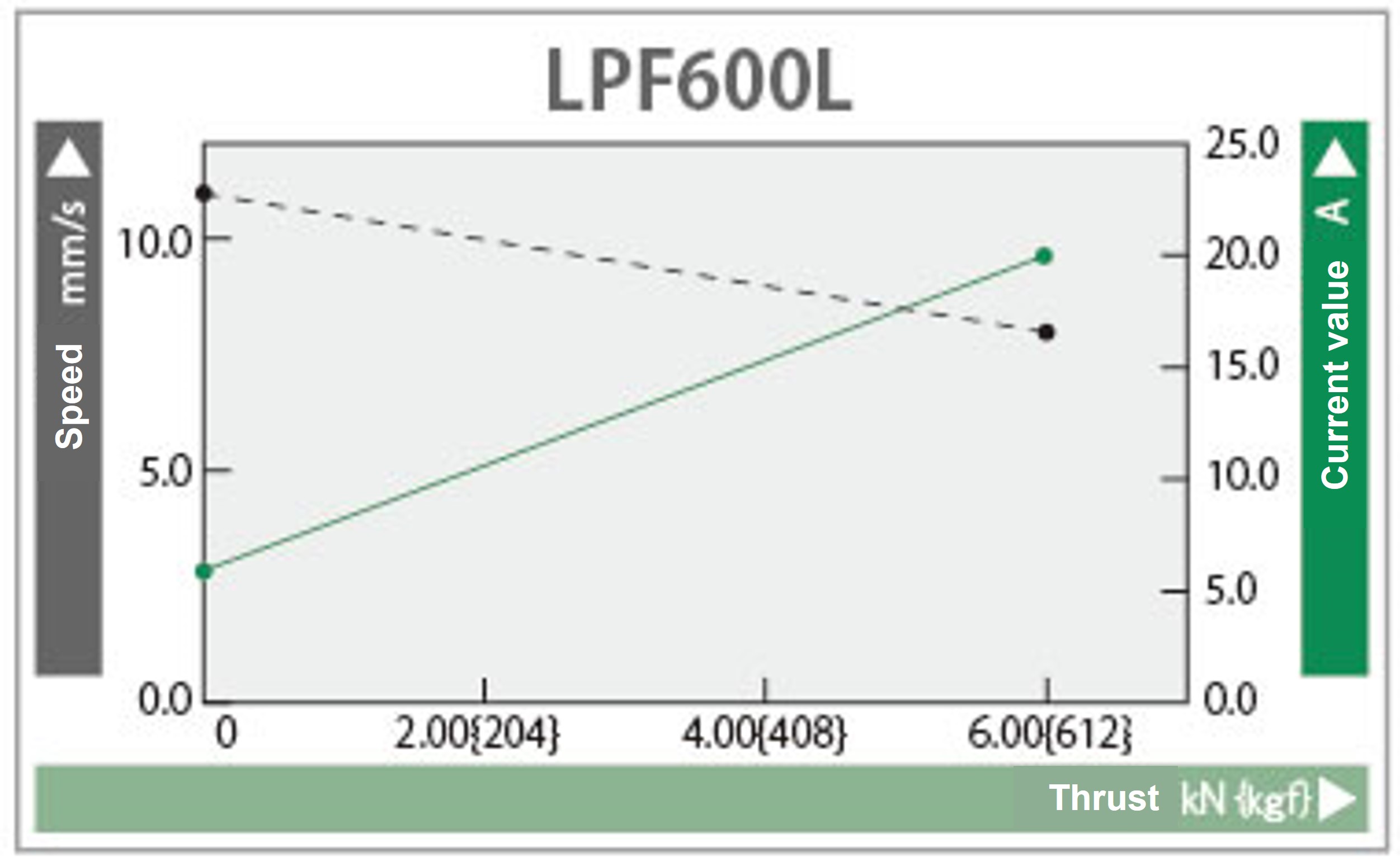

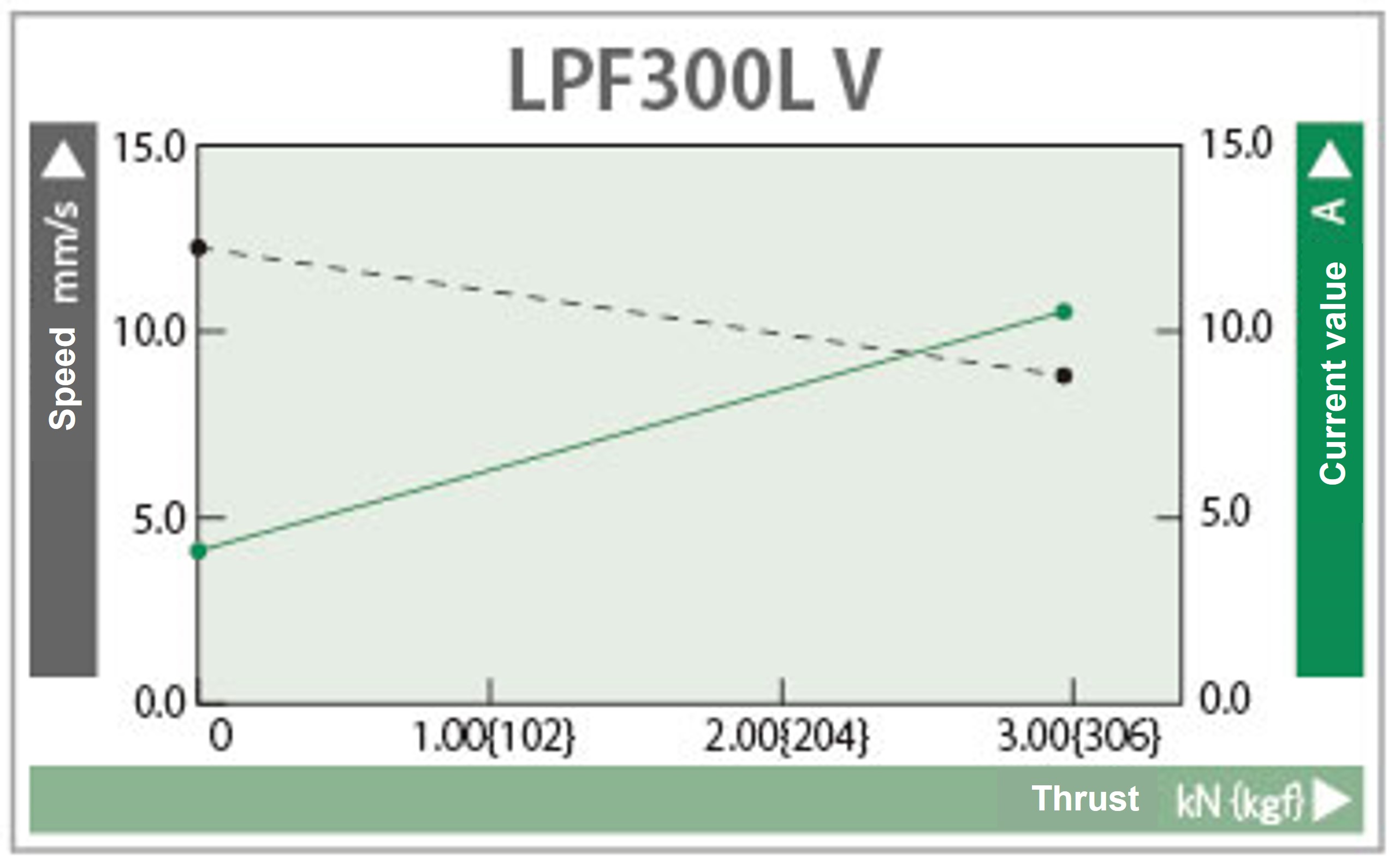

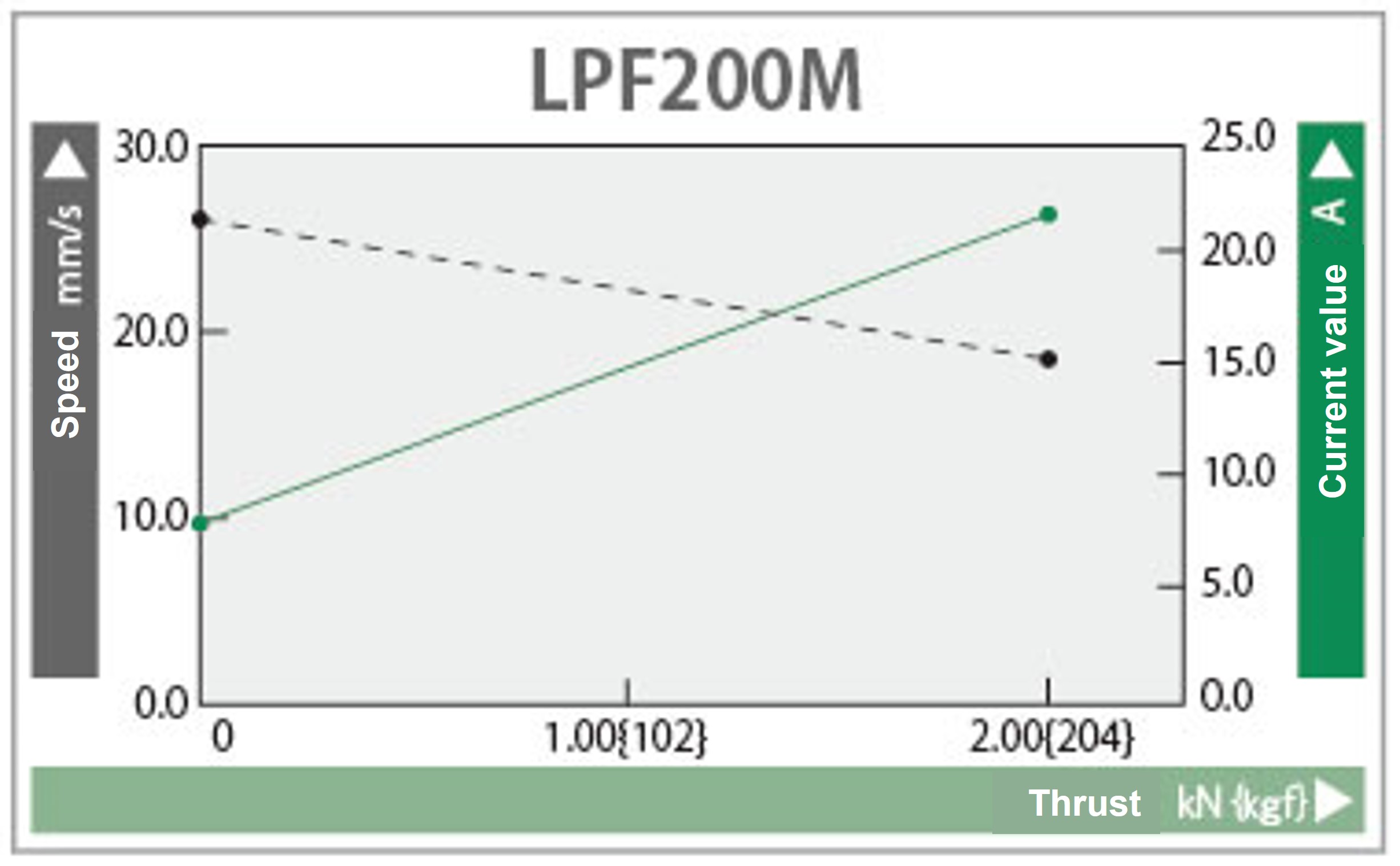

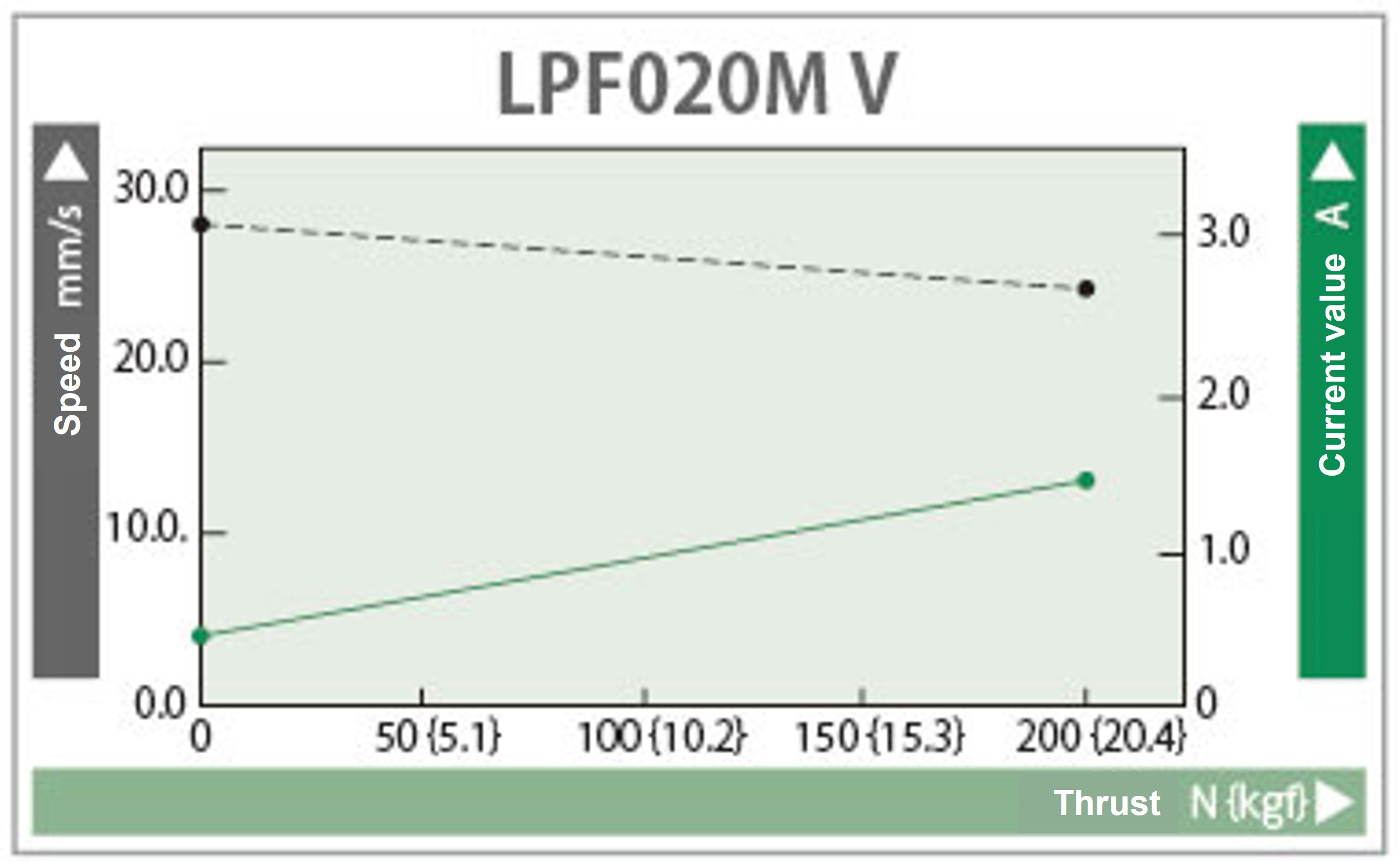

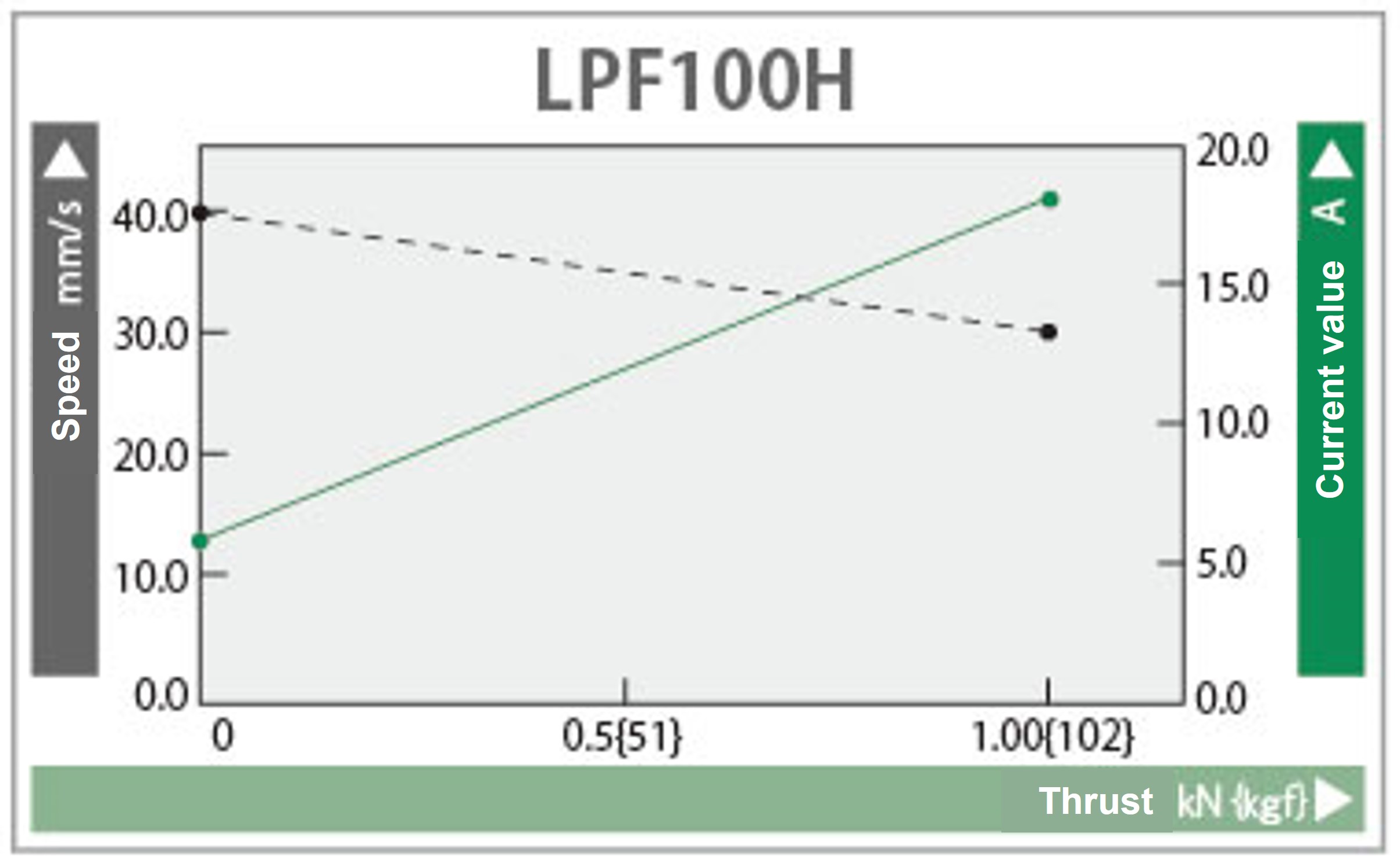

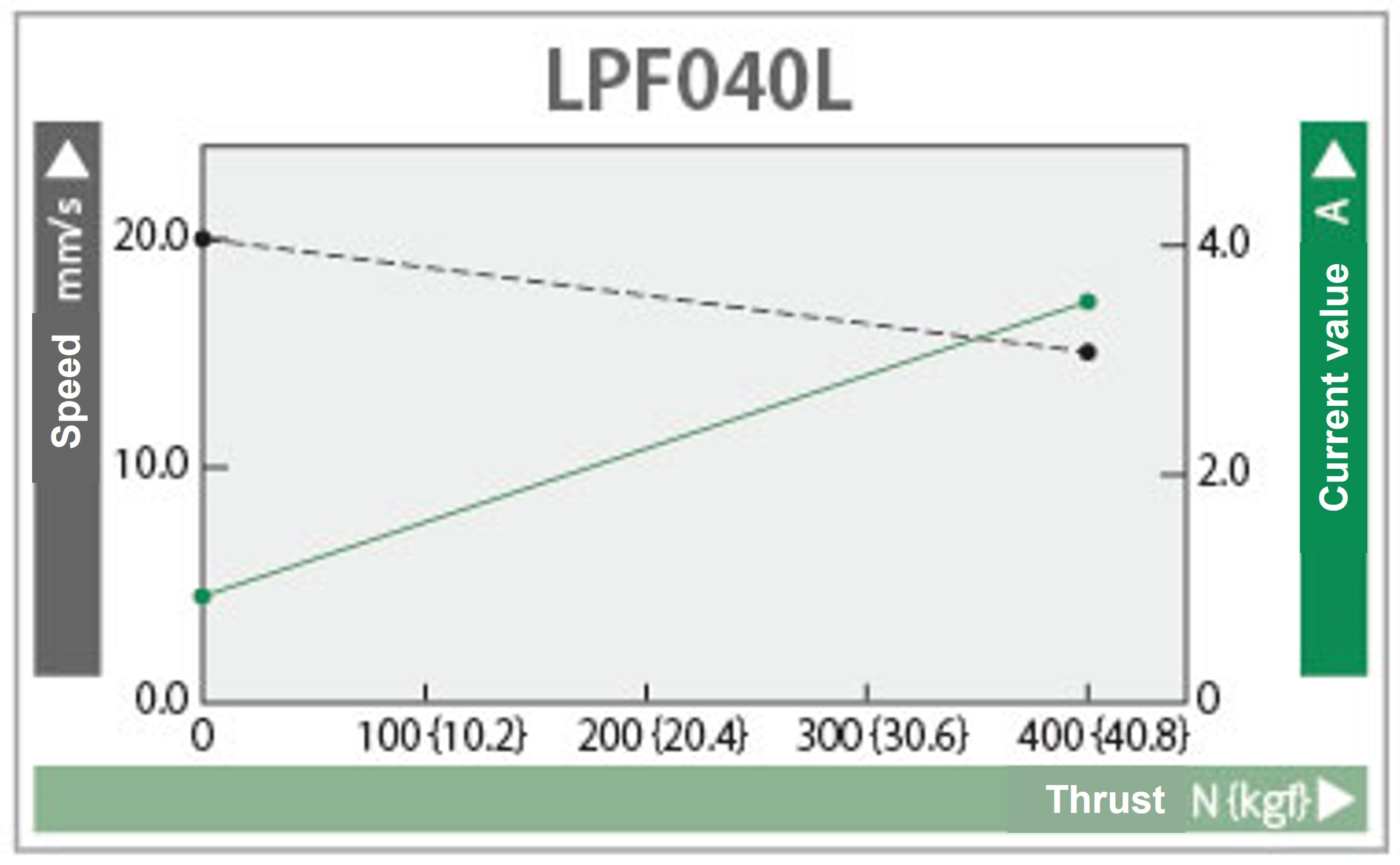

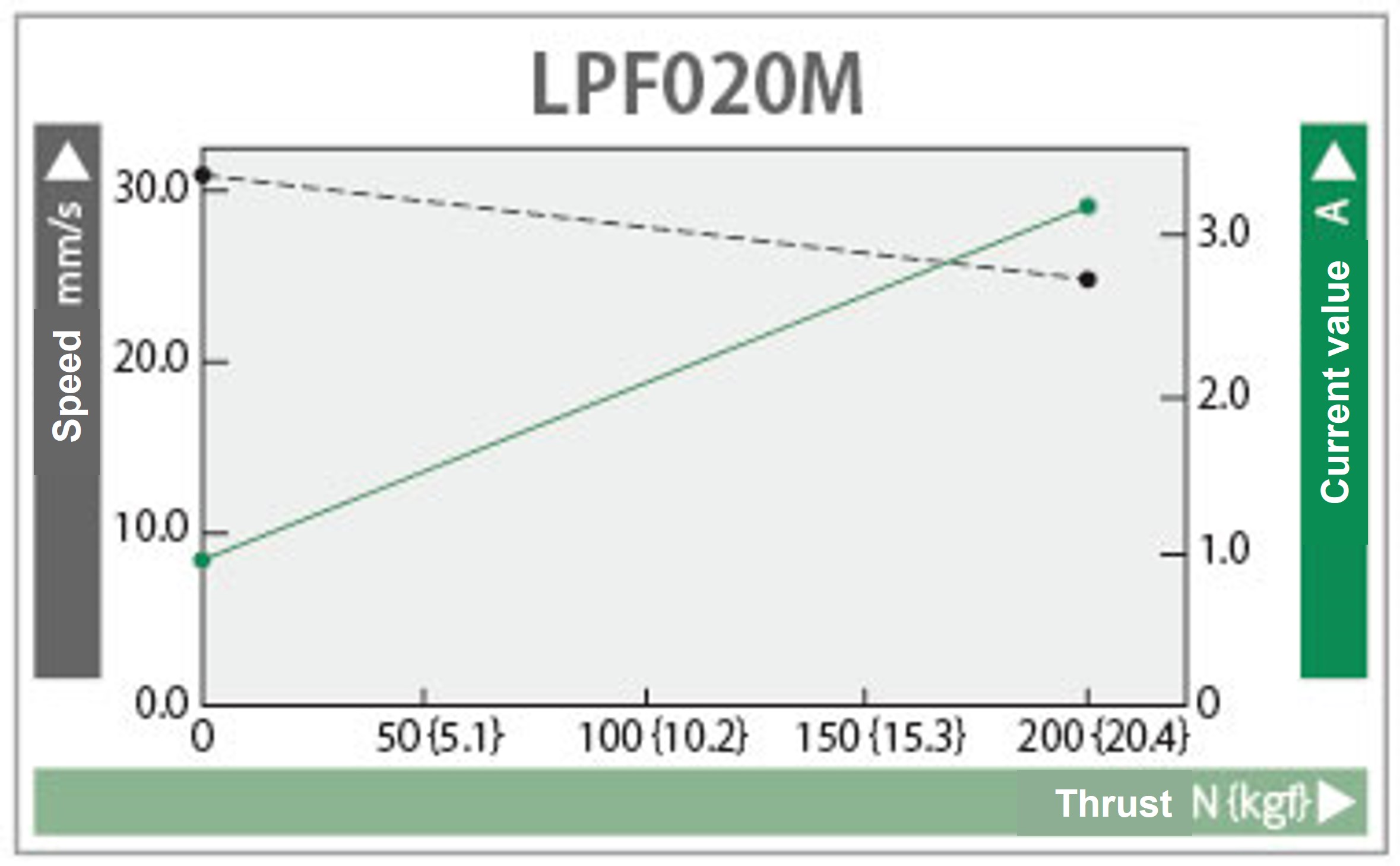

Characteristic diagram
DC12V power supply
24V DC power supply
Note: The diagram shows the reference values (power supply DC 12V/24V, ambient temperature 20°C). The speed and current value may change depending on the power supply status, ambient temperature, etc.
