technical data　linear actuator　Linipower Jack　technical data

Graph relating to screw shaft speed (lifting speed) and allowable load

This graph shows the relationship between screw shaft speed and allowable load.

The graph has been created taking into account the maximum allowable input capacity of each jack frame number, so please check allowable load on this graph to determine the frame number.

If you require more detailed consideration, please refer to the selection procedure here.

H speed L speed
J.W.B.
(Ball screw type)		 Ball screw type H speed

[Click to enlarge]

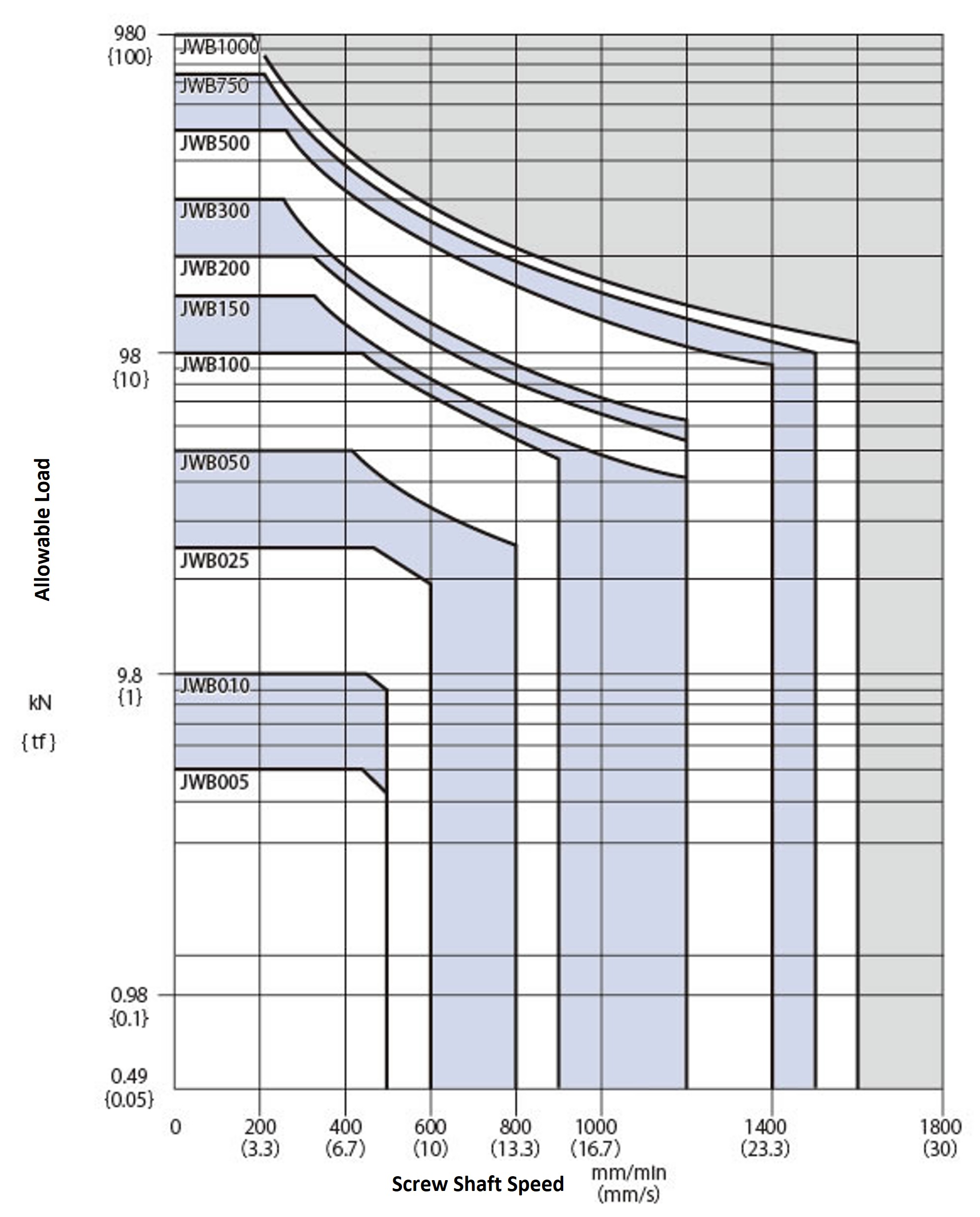

 Ball screw type L speed

[Click to enlarge]
J.W.H.

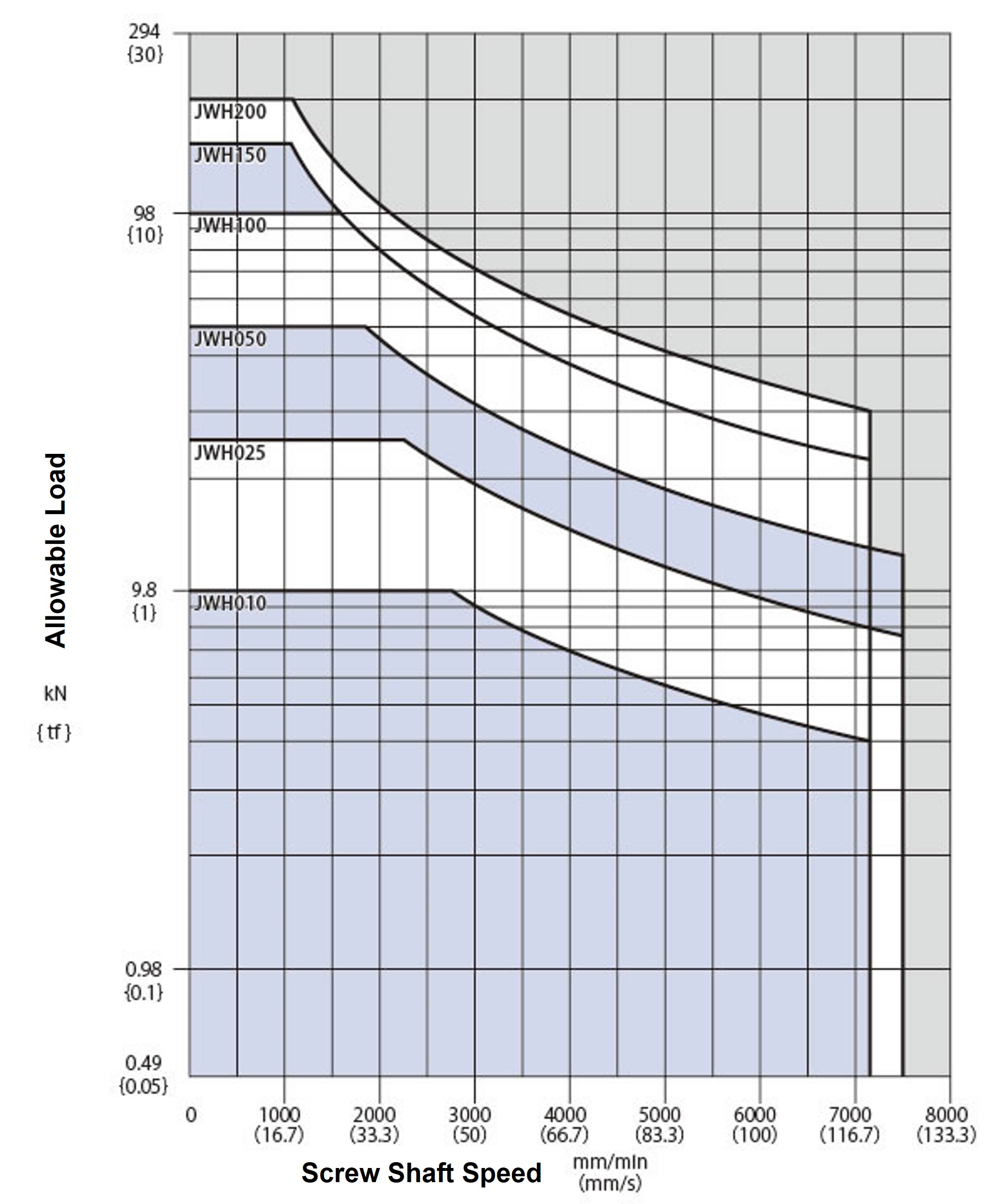

(High lead ball screw type)		 High lead ball screw type H speed

[Click to enlarge]

 －
J.W.M.

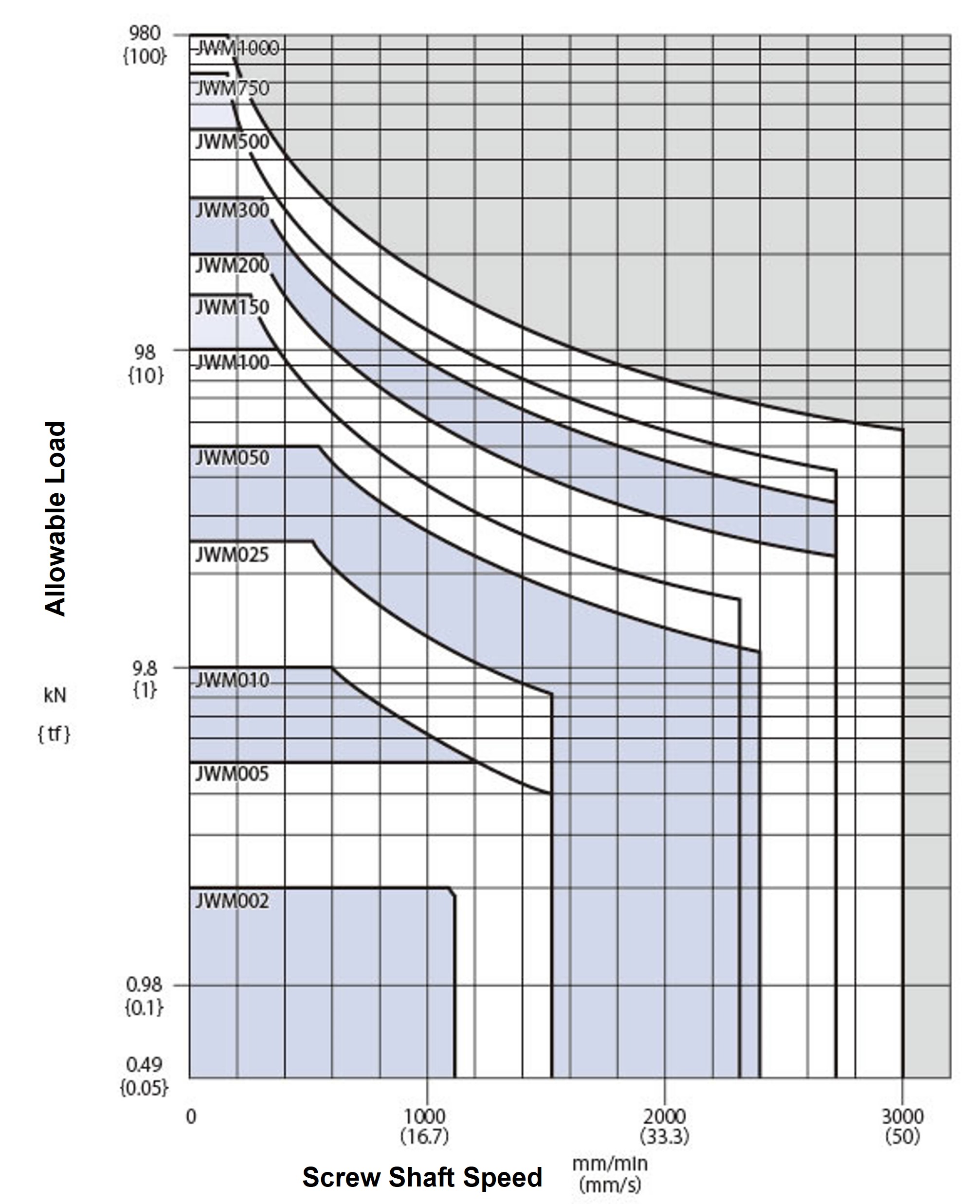

(Trapezoidal Screw type)		 Trapezoidal Screw type H speed

[Click to enlarge]

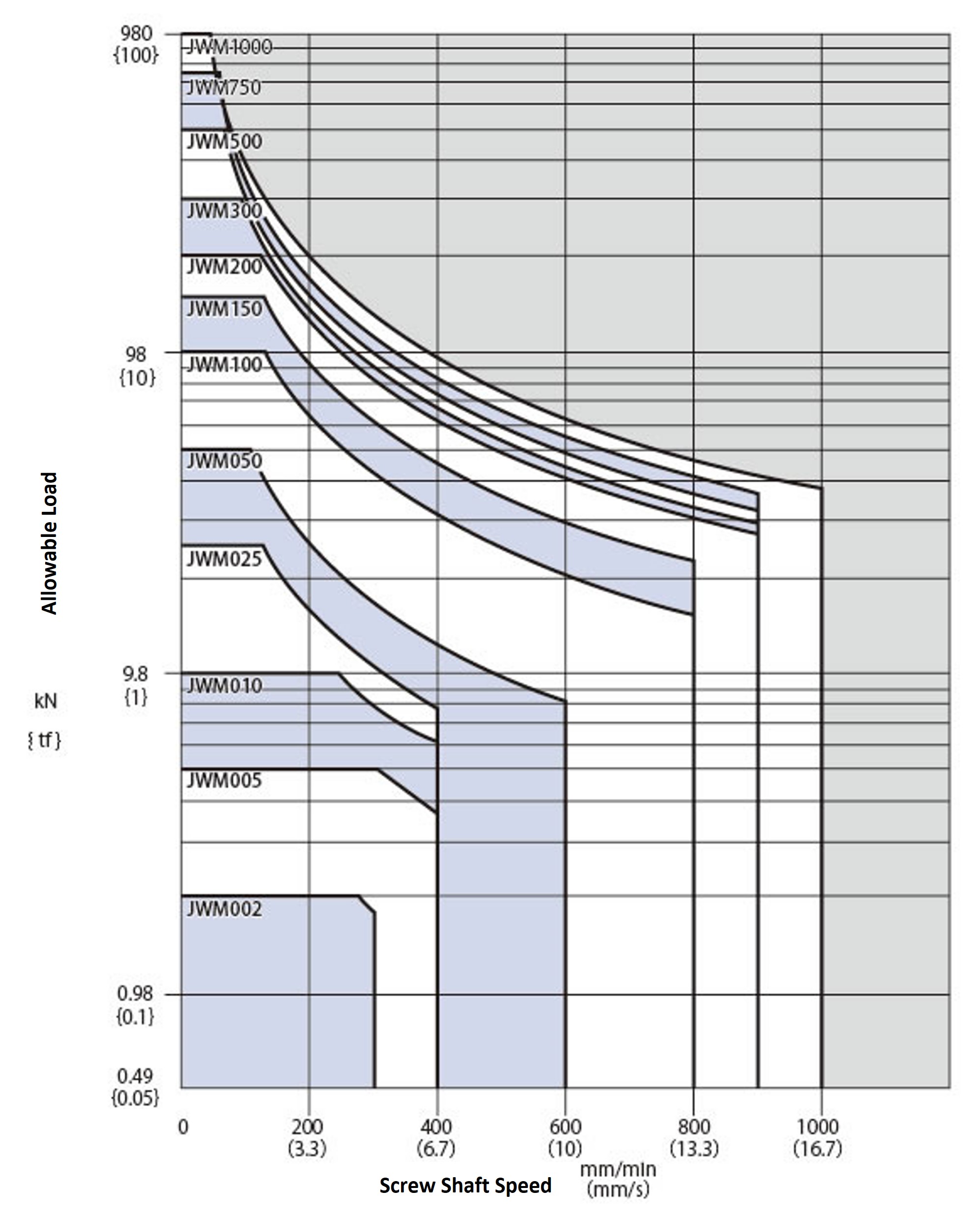

 Trapezoidal Screw type L speed

[Click to enlarge]
