technical data High-speed lifter Zip Master Position Detection Sensor
Position detection sensor
A total of four position detection sensors are installed and shipped, one for the upper and lower stroke limits and one for the start of upper and lower deceleration.
Connect to the appropriate upper sequence signal line.
Position detection sensor specifications
| Model | EE-SX972-C1(OMRON) |
|---|---|
| Power supply voltage | DC 5 to 24 V ±10% Ripple (pp) 10% or less |
| Control Output | NPN open collector (load current 50mA or less) |
| Operation Mode | OUT1: ON when light is received OUT2: ON when light is blocked |
| Electrical Circuit |
[クリックで拡大] |
For output specifications, PNP open collector type is also available as a special order, so please contact us for details.

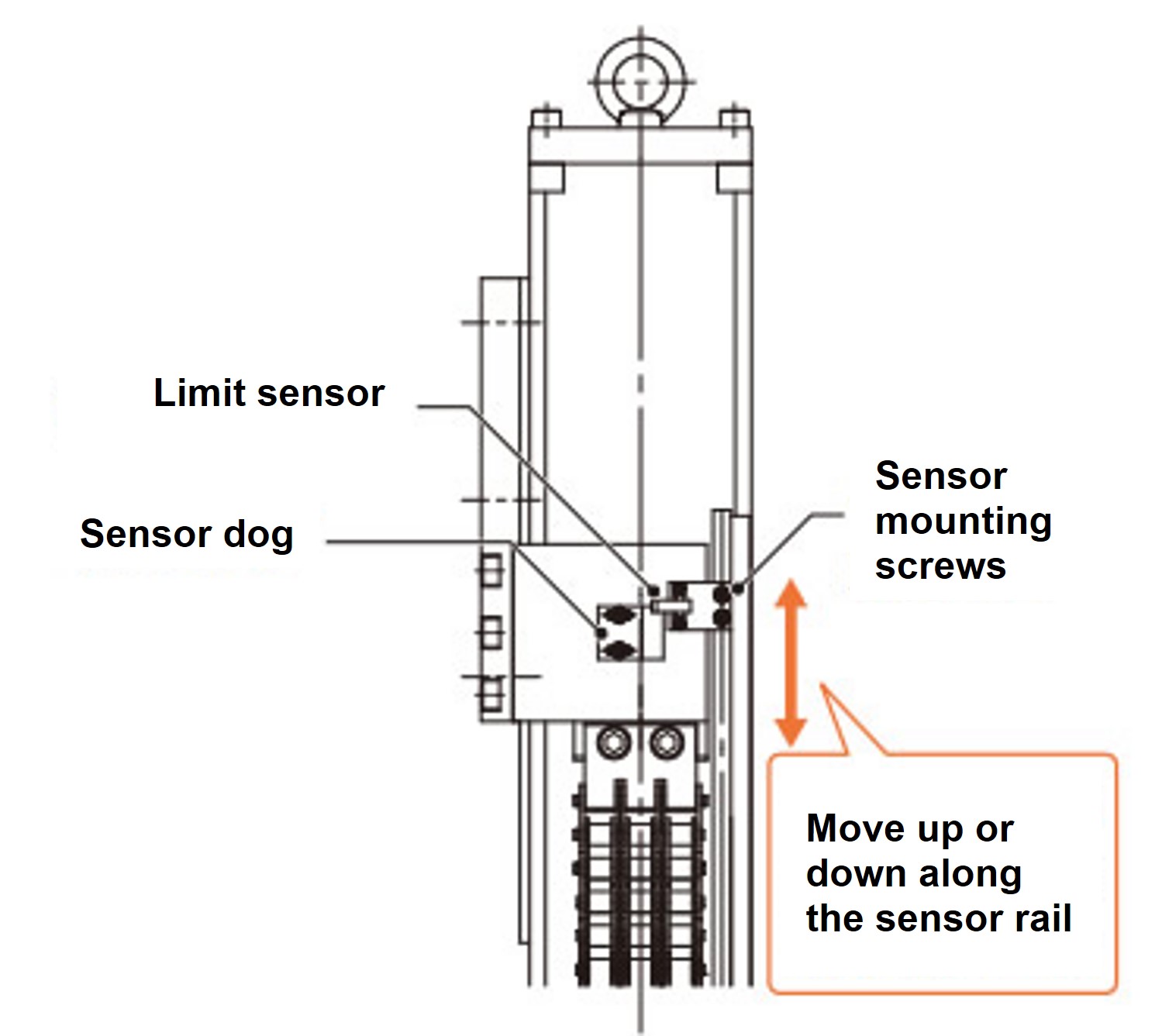

Position detection sensor adjustment procedure
- 1. Move Zip Master to the desired position.
(Up or Down) - 2. Loosen the sensor mounting screw (cross recessed pan head screw: M4 x 8), move the sensor up or down, and adjust the sensor detection position.
*The deceleration sensor must be self-holding on the circuit.
*For instructions on how to remove the cover, please refer to the inspection procedure section (here).

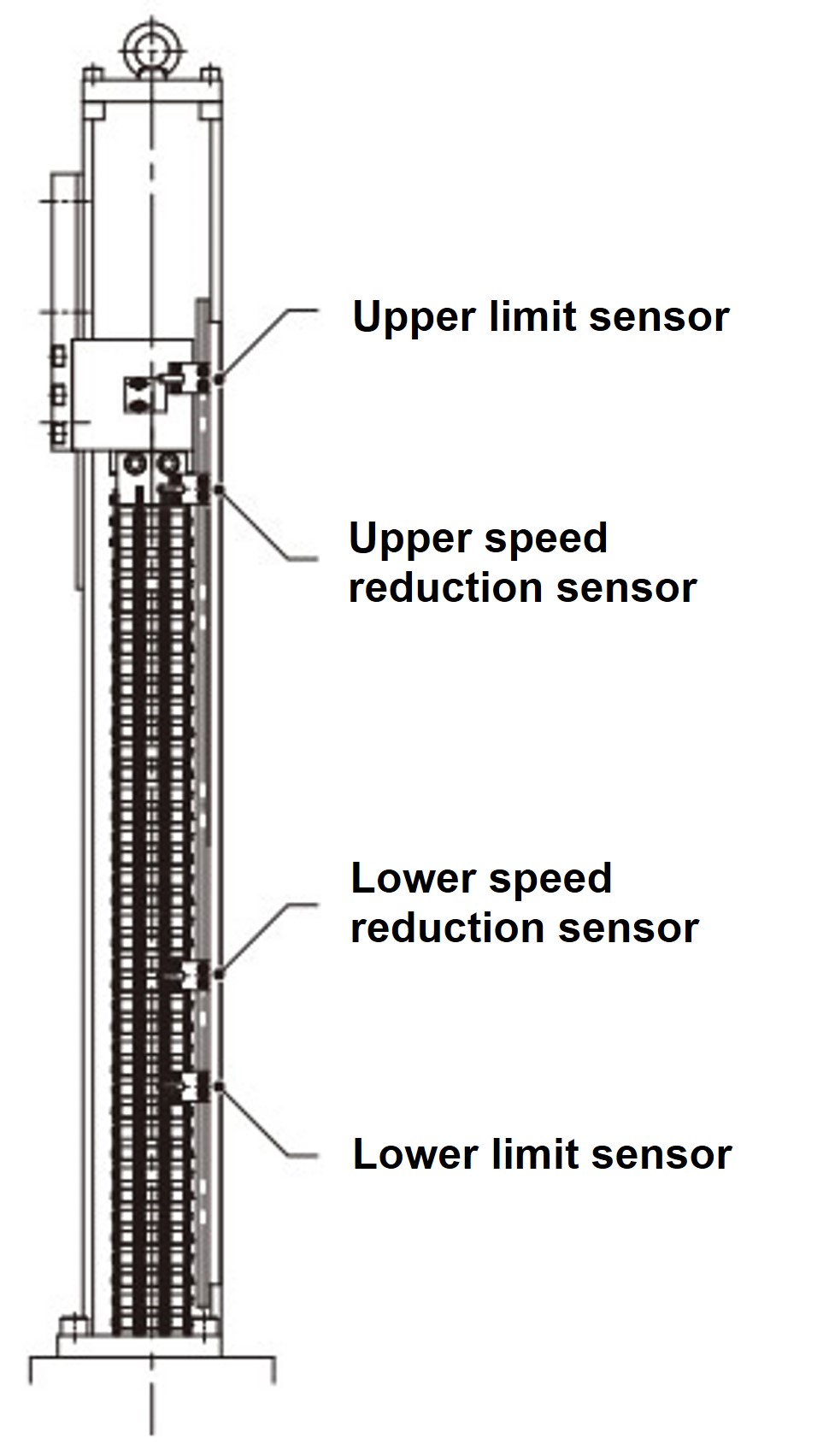

Position detection sensor installation position
