technical data Mechanical protector TG Sensor Installation
- The detection distance of the TG sensor is 1.5 mm. Set Shock Guard to the dimensions (s,t) shown in the table below with the shock guard not tripped, and confirm that the TG sensor is in a non-detection state (the operation indicator light on the side is lit).
- Next, trip Shock Guard. Then, while rotating the tripped Shock Guard by hand, confirm that the TG sensor is in the detection state (the operation indicator light on the side is off) and that there is no interference with the sensor plate, and then reset Shock Guard.

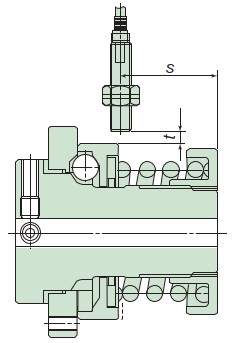

Installation diagram TGB08-16
Unit: mm
|
s |
t |
Sensor plate movement |
| TGB08-L, M, H |
19.2 |
1.2 |
0.9 |
| TGB12-L, M, H |
22.7 |
1.2 |
1.0 |
| TGB16-L, M, H |
27.5 |
1.2 |
1.2 |

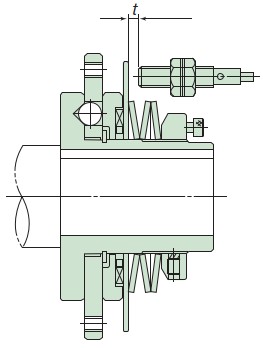

Installation Diagram TGB20-50
Unit: mm
|
t |
Sensor plate movement |
| TGB20-H |
2.0～3.2 |
1.8 |
| TGB30-L, H |
2.2～3.4 |
2.0 |
| TGB50-L, M, H |
2.9～4.1 |
2.7 |

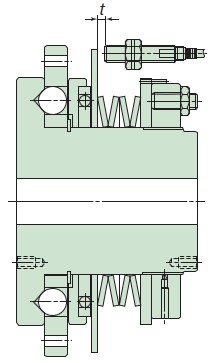

Installation Diagram TGB70-130
Unit: mm
|
t |
Sensor plate movement |
| TGB70-H |
3.5～4.7 |
3.3 |
| TGB90-L, H |
5.6～6.8 |
5.4 |
| TGB110-L, H |
6.2～7.4 |
6.0 |
| TGB130-L, H |
6.8～8.0 |
6.6 |

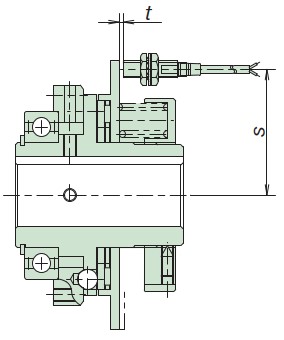

Installation Diagram TGE17-50
Unit: mm
|
s |
t |
Housing movement |
| TGE17 |
34 |
2.2±0.2 |
1.6 |
| TGE25 |
48 |
2.6±0.2 |
2.0 |
| TGE35 |
60 |
3.0±0.2 |
2.4 |
| TGE50 |
80 |
3.8±0.2 |
3.2 |

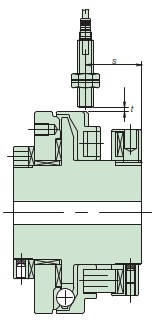

Installation diagram TGX10-70
Unit: mm
|
s |
t |
Plate displacement |
| TGX10 |
29.9 |
1.2 |
1.4 |
| TGX20 |
28.3 |
1.2 |
1.6 |
| TGX35 |
29.5 |
1.2 |
2.0 |
| TGX50 |
35.6 |
1.2 |
2.6 |
| TGX70 |
34.5 |
1.2 |
3.5 |
Note)
The TG sensor attached to Shock Guard can only be mounted radially, as shown in the left diagram.
you can't.
Installation diagram TGX10-C to 70-C
Unit: mm
|
s |
t |
Plate displacement |
| TGX10-C |
36.5 |
2.1～2.8 |
1.3 |
| TGX20-C |
45 |
2.4～3.1 |
1.6 |
| TGX35-C |
59 |
2.7～3.4 |
1.9 |
| TGX50-C |
83 |
3.2～3.9 |
2.4 |
| TGX70-C |
105 |
4.1～4.8 |
3.3 |
Note)
For TG sensors attached to coupling-type systems, horizontal orientation is recommended, as shown in the left diagram.
Please contact us if you require radial mounting.

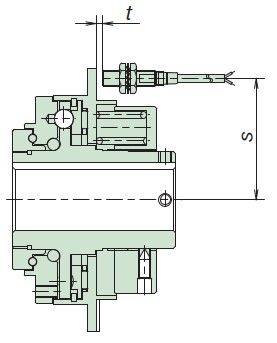

Installation Diagram TGF20-90
Unit: mm
|
s |
t |
Housing movement |
| TGF20 |
46 |
1.8±0.2 |
1.2 |
| TGF30 |
60 |
2.4±0.2 |
1.8 |
| TGF45 |
78 |
2.8±0.2 |
2.2 |
| TGF65 |
100 |
3.3±0.2 |
2.7 |
| TGF90 |
136 |
5.6±0.2 |
5.0 |
