Application Examples Zip Zip Chain Actuator- Lateral Push/Pull Applications
Application Examples

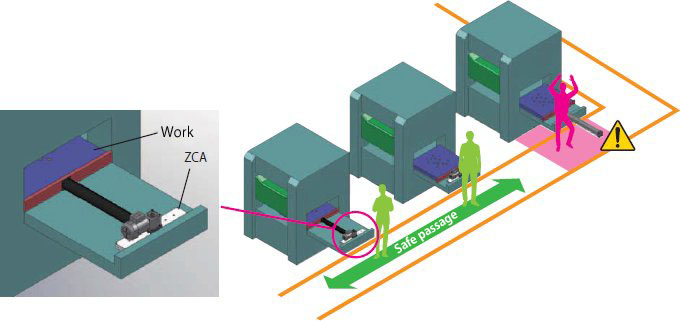

Work supply device
Before improvement
- ・Workpieces were supplied using an air cylinder.
problem
- - The cylinder protruded too much and blocked the passage.
- ・To accommodate a wide variety of products, it became necessary to adjust the workpiece feed speed, but this could not be achieved with an air cylinder.
solution
- - Compact: There is less protrusion into the aisle, so the aisle can be secured.
- - Electrification: Inverter control makes it possible to adjust the feed speed.
