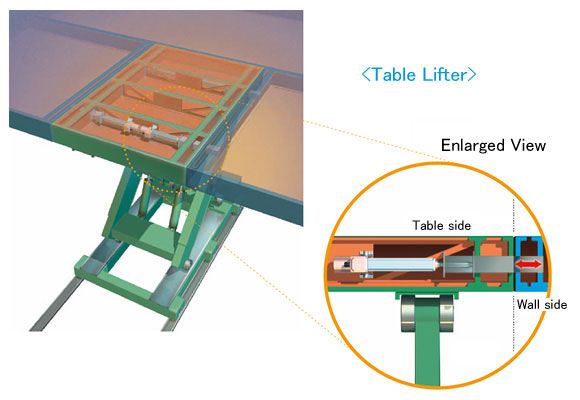

The table itself is raised and lowered using a hydraulic cylinder, but if you want to fix it in a raised position, there is a risk that the table will fall due to an oil leak in the hydraulic cylinder. Therefore, our SpeedMech is used to fix the table in place.

The forward movement of the cylinder automatically stops when it hits the wall of the other side, and the backward movement stops at the stroke end of the cylinder. The position of the cylinder rod is constantly checked by outputting a signal from an optional magnetic sensor. In addition, since the other device does not have a rotation stop mechanism, an optional rod rotation stop specification was adopted.
