Catalogs and Instruction Manuals

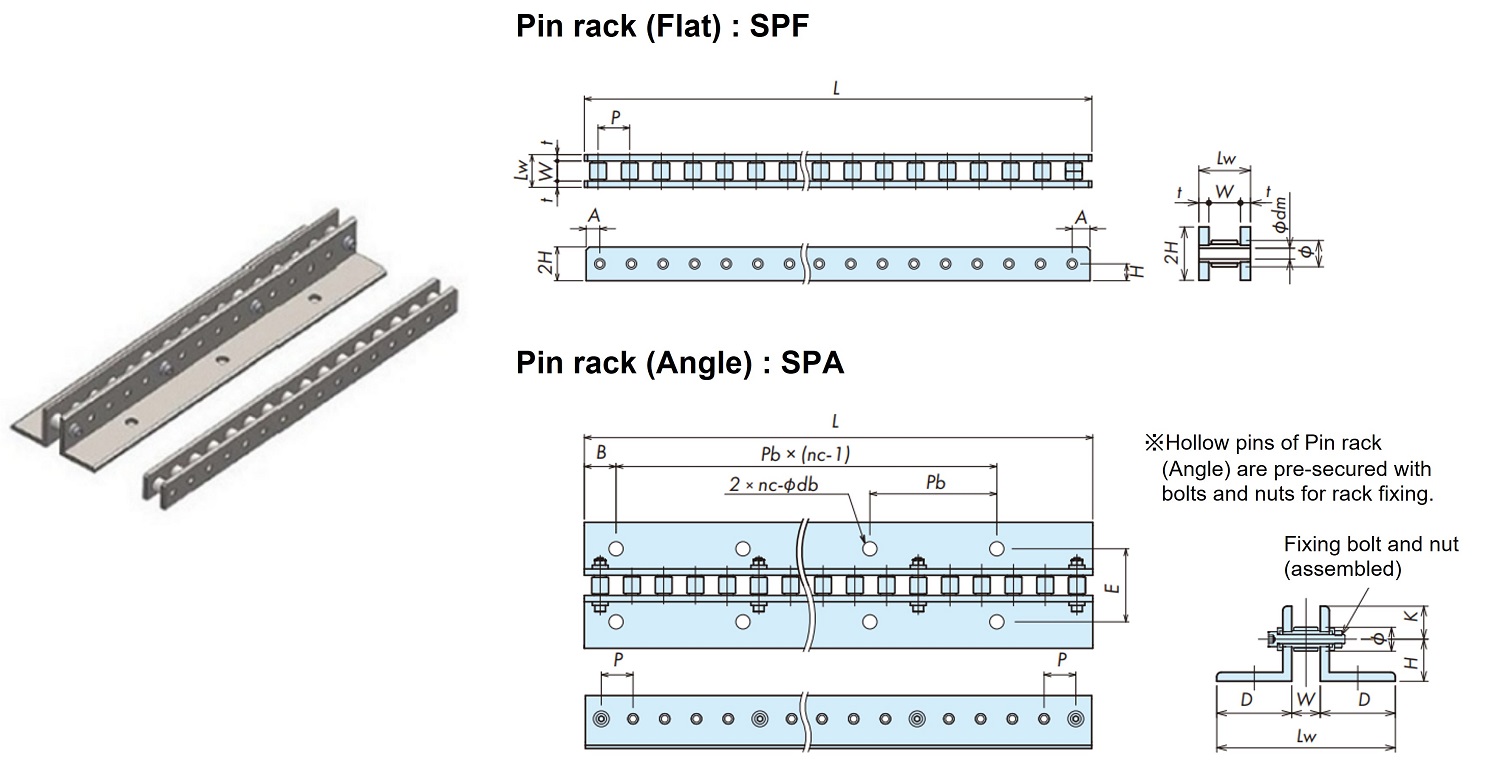

Pin rack types and specifications

Note)
1. The length of the segment is set to be easy to handle, and the number of pins is set as the standard number of pins.
We also set the minimum length and number of pins that can be produced.
2. If the total number of pins exceeds the standard number of pins, the cable will be configured with the standard number of pins and the number of pins less than the standard length (more than the minimum number of pins).
3. Mounting bolts are not included.

Model number display example

PDU050	-	S	P	A	080P	-	R
｜ Frame number		｜｜	｜ Pin rack	｜｜	｜ Total number of pins		｜ specification No symbol: Standard steel type K: Steel type with electroless nickel plating R: Steel type with high rust prevention Y: Flexible type S: Stainless steel type standard specification
		｜ Drive system S: Linear drive		｜ Mounting Method F: Flat type A: Angle type

Flat type specification table

Frame No.	pitch P mm	Standard length L mm	standard Number of pins NT	Plate thickness t mm	pin position A mm	Inner width W mm	Overall width Lw mm	Overall height 2H mm	bolt Hole Diameter Φdm	Installation bolt size	Standard length mass kg	minimum length mm	minimum Number of pins	DXF Data 3D CAD Data
PDU020	20	800	40	4.5 （S:5）	10	12	21 （S:22）	22	4.5	M4	1.4 （S:1.5）	160	8	DXF・3DCAD
PDU022	22	792	36	4.5 （S:5）	11	16	25 （S:26）	25	4.5	M4	1.7 （S:1.9）	286	13	DXF・3DCAD
PDU030	30	780	26	6	15	19	31	32	6.5	M6	2.8 （S:2.8）	300	10	DXF・3DCAD
PDU035	35	770	22	9 （S:6）	17.5	22	40 （S:34）	38	8.8	M8	4.7 （S:3.4）	280	8	DXF・3DCAD
PDU040	40	800	20	9 （S:8）	20	28	46 （S:44）	45	10.8	M10	6 （S:5.5）	280	7	DXF・3DCAD
PDU050	50	1000	20	12 （S:9）	25	28	52 （S:46）	65	12.8	M12	13.2 （S:10.3）	300	6	DXF・3DCAD
PDU055	55	990	18	12 （S:9）	27.5	36	60 （S:54）	65	12.8	M12	14 （S:11.2）	495	9	DXF・3DCAD
PDU070	70	980	14	16 （S:10）	35	40	72 （S:60）	75	17	M16	20.6 （S:14.3）	420	6	DXF・3DCAD
PDU080	80	960	12	16 （S:12）	40	42	74 （S:66）	90	17	M16	24.6 （S:19.6）	560	7	DXF・3DCAD
PDU090	90	990	11	19 （S:12）	45	52	90 （S:76）	100	22	M20	33.9 （S:24）	540	6	DXF・3DCAD
PDU120	120	960	8	22	60	68	112	150	32	M30	56.6	480	4	DXF・3DCAD
PDU150	150	1200	8	22	75	94	138	150	39	M36	82.5	900	6	DXF・3DCAD
PDU180	180	1260	7	30	90	112	172	200	45	M42	148.6	1080	6	DXF・3DCAD
PDU240	240	1200	5	38	120	150	226	250	52	M48	235.6	1200	5	DXF・3DCAD

*S in the table indicates the dimensions and weight of the stainless steel type.
*Stainless steel types with frame numbers of PDU070 or higher are only available in flat type.
*Frame numbers of PDU120 and above are only available in steel type.

Angle type specification table

Frame No.	pitch P mm	Standard length L mm	standard Number of pins NT	Inner width W mm	Overall width Lw mm	Anne Guru leg width D mm	Heart Height		Mounting holes position E mm	end face B mm	Mounting holes pitch Pb mm	Installation Anaman distance Pb X (nc-1) mm	Installation Number of holes (one side) nc	Installation Hole Diameter Φdb mm	Installation bolt size	Standard length mass kg	minimum length mm	minimum Number of pins
Frame No.	pitch P mm	Standard length L mm	standard Number of pins NT	Inner width W mm	Overall width Lw mm	Anne Guru leg width D mm	H mm	K mm	Mounting holes position E mm	end face B mm	Mounting holes pitch Pb mm	Installation Anaman distance Pb X (nc-1) mm	Installation Number of holes (one side) nc	Installation Hole Diameter Φdb mm	Installation bolt size	Standard length mass kg	minimum length mm	minimum Number of pins
PDU020	20	800	40	12	72	30	20	10	56	20	120	720	7	9	M8	2.4 （S:2.4）	160	8
PDU022	22	792	36	16	96	40	27	13	60	22	88	704	9	11	M10	3.3 （S:3.3）	132	6
PDU030	30	780	26	19	119	50	28	22	69	30	120	720	7	13.5	M12	7.5 （S:7.5）	180	6
PDU035	35	770	22	22	122	50	30	20	76	35	140	700	6	13.5	M12	7.7 （S:7.5）	210	6
PDU040	40	800	20	28	128	50	28	22	88	40	120	720	7	13.5	M12	8.6 （S:8.5）	320	8
PDU050	50	1000	20	28	158	65	40	25	104	50	150	900	7	17.5	M16	17.2 （S:13.8）	250	5
PDU055	55	990	18	36	166	65	37	28	112	55	165	825	6	17.5	M16	18 （S:14.8）	440	8
PDU070	70	980	14	40	190	75	43	32	130	70	210	840	5	17.5	M16	29	560	8
PDU080	80	960	12	42	222	90	55	35	142	80	160	800	6	22	M20	37	480	6
PDU090	90	990	11	52	252	100	55	45	162	90	180	720	5	22	M20	44.6	540	6
PDU120	120	960	8	68	368	150	85	65	232	120	240	720	4	33	M30	91	480	4
PDU150	150	1200	8	94	394	150	85	65	270	150	300	900	4	39	M36	134	900	6
PDU180	180	1260	7	112	462	175	125	95	Please contact us separately						M42	233	1260	7
PDU240	240	1200	5	150	554	202	157	119	Please contact us separately						M48	362	1200	5

Linear drive pin gears - Types and specifications

Model number display example

PDU050	-	S	G	B	014T	-	R
｜ Frame number		｜｜	｜ Pin gear	｜｜	｜ Number of teeth		｜ specification No symbol: Standard steel type K: Steel type with electroless nickel plating R: Steel type with high rust prevention Y: Flexible type S: Stainless steel type standard specification
		｜ Drive system S: Linear drive		｜ Pin gear type B: Single hub type C: Double hub type

Production specifications

*Materials other than those listed above can also be manufactured.
*We also handle shaft hole finishing processing.
	Steel Type	Stainless steel type
Material	Carbon steel for machine structures	stainless steel
Structure	B type C type
Hardened tooth tip	induction hardening and tempering	none

Pin gear applicable tooth number range

○：Can be used
△: The tangential load may decrease depending on the conditions of use. Please contact us.
×: Cannot be used due to reduced meshing rate.
Number of teeth NT	straight line rack	Circumscribed pinwheel								Inscribed pinwheel
Number of teeth NT	straight line rack	60	70	80	100	150	200	250	300	60	70	80	100	150	200	250
11	×	×	×	×	×	×	×	×	×	○	○	○	○	×	×	×
12	△	×	×	×	×	×	×	×	×	○	○	○	○	○	○	○
13	○	×	×	×	×	×	△	△	△	○	○	○	○	○	○	○
14	○	×	×	△	△	△	△	△	△	○	○	○	○	○	○	○
15	○	△	△	△	△	△	△	△	△	○	○	○	○	○	○	○
16	○	△	△	△	△	△	△	△	△	○	○	○	○	○	○	○
17	○	△	△	△	△	△	△	△	○	○	○	○	○	○	○	○
18	○	△	△	△	△	△	△	○	○	○	○	○	○	○	○	○
19	○	△	△	△	△	○	○	○	○	○	○	○	○	○	○	○
20	○	△	△	△	○	○	○	○	○	○	○	○	○	○	○	○
21	○	△	△	○	○	○	○	○	○	○	○	○	○	○	○	○
22	○	△	○	○	○	○	○	○	○	○	○	○	○	○	○	○
23	○	△	○	○	○	○	○	○	○	○	○	○	○	○	○	○
24 or more	○	○	○	○	○	○	○	○	○	○	○	○	○	○	○	○

Linear drive pin gear specification table

Frame number
(

Click to select by number of teeth
View details.)

pitch
P
mm

Roller diameter
d
mm

Pin gear tooth width
T
mm

PDU020　

10.16

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU020-SGB013T,　PDU020-SGC013T PDU020-SGB013T-S,　PDU020-SGC013T-S	13	84.76	100	12.7	50	30
PDU020-SGB014T,　PDU020-SGC014T PDU020-SGB014T-S,　PDU020-SGC014T-S	14	91.13	106	12.7	50	30
PDU020-SGB015T,　PDU020-SGC015T PDU020-SGB015T-S,　PDU020-SGC015T-S	15	97.29	111	12.7	50	30

PDU022　

11.91

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU022-SGB013T,　PDU022-SGC013T PDU022-SGB013T-S,　PDU022-SGC013T-S	13	93.44	110	15.9	60	40
PDU022-SGB014T,　PDU022-SGC014T PDU022-SGB014T-S,　PDU022-SGC014T-S	14	100.44	117	15.9	60	40
PDU022-SGB015T,　PDU022-SGC015T PDU022-SGB015T-S,　PDU022-SGC015T-S	15	107.04	122	15.9	60	40

PDU030　

15.88

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU030-SGB013T,　PDU030-SGC013T PDU030-SGB013T-R,　PDU030-SGC013T-R PDU030-SGB013T-S,　PDU030-SGC013T-S	13	126.94	150	19	80	50
PDU030-SGB014T,　PDU030-SGC014T PDU030-SGB014T-R,　PDU030-SGC014T-R PDU030-SGB014T-S,　PDU030-SGC014T-S	14	136.49	158	19	80	50
PDU030-SGB015T,　PDU030-SGC015T PDU030-SGB015T-R,　PDU030-SGC015T-R PDU030-SGB015T-S,　PDU030-SGC015T-S	15	145.84	167	19	80	50

PDU035　

19.05

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU035-SGB013T,　PDU035-SGC013T PDU035-SGB013T-R,　PDU035-SGC013T-R PDU035-SGB013T-S,　PDU035-SGC013T-S	13	148.43	175	23	95	80
PDU035-SGB014T,　PDU035-SGC014T PDU035-SGB014T-R,　PDU035-SGC014T-R PDU035-SGB014T-S,　PDU035-SGC014T-S	14	159.57	185	23	110	90
PDU035-SGB015T,　PDU035-SGC015T PDU035-SGB015T-R,　PDU035-SGC015T-R PDU035-SGB015T-S,　PDU035-SGC015T-S	15	170.51	194	28	110	90

PDU040　

22.23

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU040-SGB013T,　PDU040-SGC013T PDU040-SGB013T-R,　PDU040-SGC013T-R PDU040-SGB013T-S,　PDU040-SGC013T-S	13	169.92	200	28	110	90
PDU040-SGB014T,　PDU040-SGC014T PDU040-SGB014T-R,　PDU040-SGC014T-R PDU040-SGB014T-S,　PDU040-SGC014T-S	14	182.65	211	28	120	100
PDU040-SGB015T,　PDU040-SGC015T PDU040-SGB015T-R,　PDU040-SGC015T-R PDU040-SGB015T-S,　PDU040-SGC015T-S	15	194.99	222	33	120	100

PDU050　

25.4

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU050-SGB013T,　PDU050-SGC013T PDU050-SGB013T-R,　PDU050-SGC013T-R PDU050-SGB013T-S,　PDU050-SGC013T-S	13	211.7	250	33	130	100
PDU050-SGB014T,　PDU050-SGC014T PDU050-SGB014T-R,　PDU050-SGC014T-R PDU050-SGB014T-S,　PDU050-SGC014T-S	14	227.62	264	33	130	110
PDU050-SGB015T,　PDU050-SGC015T PDU050-SGB015T-R,　PDU050-SGC015T-R PDU050-SGB015T-S,　PDU050-SGC015T-S	15	243.13	277	33	130	110

PDU055　

28.58

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU055-SGB013T,　PDU055-SGC013T PDU055-SGB013T-R,　PDU055-SGC013T-R PDU055-SGB013T-S,　PDU055-SGC013T-S	13	232.79	275	33	150	140
PDU055-SGB014T,　PDU055-SGC014T PDU055-SGB014T-R,　PDU055-SGC014T-R PDU055-SGB014T-S,　PDU055-SGC014T-S	14	250.3	290	33	160	140
PDU055-SGB015T,　PDU055-SGC015T PDU055-SGB015T-R,　PDU055-SGC015T-R PDU055-SGB015T-S,　PDU055-SGC015T-S	15	267.41	305	33	160	140

PDU070　

35.71

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU070-SGB013T,　PDU070-SGC013T PDU070-SGB013T-R,　PDU070-SGC013T-R PDU070-SGB013T-S,　PDU070-SGC013T-S	13	295.66	349	43	180	160
PDU070-SGB014T,　PDU070-SGC014T PDU070-SGB014T-R,　PDU070-SGC014T-R PDU070-SGB014T-S,　PDU070-SGC014T-S	14	317.94	368	43	180	160
PDU070-SGB015T,　PDU070-SGC015T PDU070-SGB015T-R,　PDU070-SGC015T-R PDU070-SGB015T-S,　PDU070-SGC015T-S	15	339.83	388	43	180	160

PDU080　

39.68

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU080-SGB013T,　PDU080-SGC013T PDU080-SGB013T-R,　PDU080-SGC013T-R PDU080-SGB013T-S,　PDU080-SGC013T-S	13	337.64	399	43	190	160
PDU080-SGB014T,　PDU080-SGC014T PDU080-SGB014T-R,　PDU080-SGC014T-R PDU080-SGB014T-S,　PDU080-SGC014T-S	14	363.11	421	43	200	180
PDU080-SGB015T,　PDU080-SGC015T PDU080-SGB015T-R,　PDU080-SGC015T-R PDU080-SGB015T-S,　PDU080-SGC015T-S	15	388.17	443	43	200	180

PDU090　

47.63

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU090-SGB013T,　PDU090-SGC013T PDU090-SGB013T-R,　PDU090-SGC013T-R PDU090-SGB013T-S,　PDU090-SGC013T-S	13	380.42	449	43	220	190
PDU090-SGB014T,　PDU090-SGC014T PDU090-SGB014T-R,　PDU090-SGC014T-R PDU090-SGB014T-S,　PDU090-SGC014T-S	14	409.07	474	43	230	210
PDU090-SGB015T,　PDU090-SGC015T PDU090-SGB015T-R,　PDU090-SGC015T-R PDU090-SGB015T-S,　PDU090-SGC015T-S	15	437.32	498	63	230	210

PDU120　

120

63.5

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU120-SGB013T,　PDU120-SGC013T PDU120-SGB013T-R,　PDU120-SGC013T-R	13	508.56	599	63	270	250
PDU120-SGB014T,　PDU120-SGC014T PDU120-SGB014T-R,　PDU120-SGC014T-R	14	546.76	632	63	270	250
PDU120-SGB015T,　PDU120-SGC015T PDU120-SGB015T-R,　PDU120-SGC015T-R	15	582.96	664	63	280	260

PDU150　

150

79.38

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU150-SGB013T,　PDU150-SGC013T	13	635.7	749	120	260	250
PDU150-SGB014T,　PDU150-SGC014T	14	683.45	790	120	280	270
PDU150-SGB015T,　PDU150-SGC015T	15	728.7	830	120	290	290

PDU180　

180

95.25

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU180-SGB013T,　PDU180-SGC013T	13	762.85	899	160	310	300
PDU180-SGB014T,　PDU180-SGC014T	14	820.14	948	160	360	320
PDU180-SGB015T,　PDU180-SGC015T	15	874.44	996	160	360	340

PDU240　

240

127

120

Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Shaft Hole Diameter Φd mm	Hub
Model number	Number of teeth NT	Pitch circle diameter ΦDa mm	Outer diameter ΦDo mm	Pilot bore	diameter ΦDH mm	length LH mm
PDU240-SGB013T,　PDU240-SGC013T	13	1017.13	1198	160	460	400
PDU240-SGB014T,　PDU240-SGC014T	14	1093.52	1264	160	460	400
PDU240-SGB015T,　PDU240-SGC015T	15	1165.92	1328	160	460	400
