Innovative technology drives the times.
Born from Tsubaki's unique technology
"Zip Chain".
This innovative technology will change the workplace of manufacturing and logistics.
ZIP CHAIN REVOLUTION
Zip Chain delivers overwhelmingly high performance
This chain can be pushed and pulled, making full use of our chain technology, which boasts the world's largest market share. Two chains interlock like a zipper, forming one strong pillar.
This movement is only possible with Zip Chain The technological capabilities that support this excellent device.

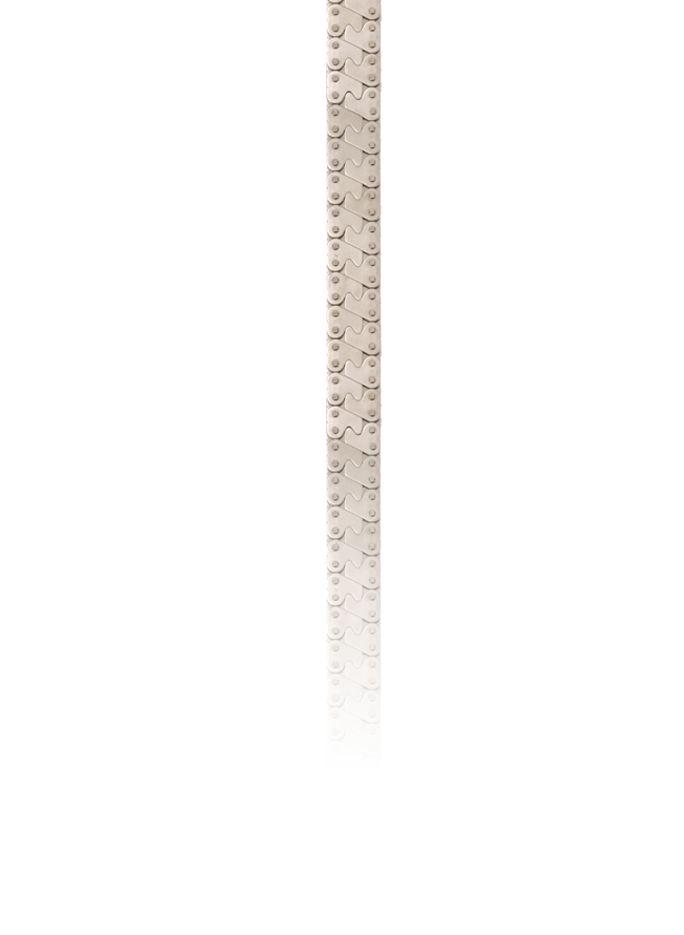

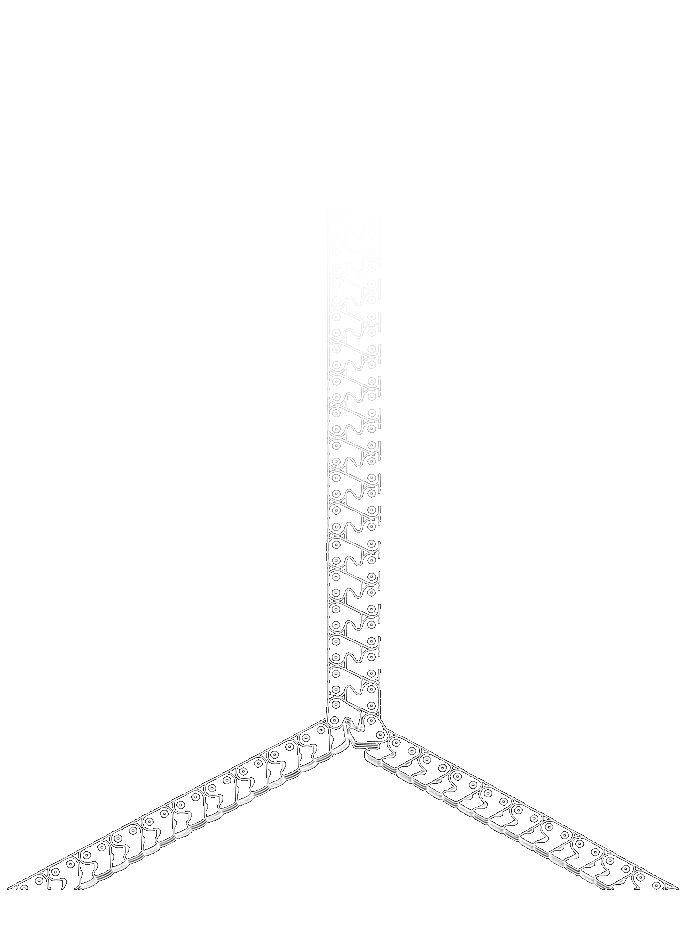

A unique structure that allows the two chains to maintain meshing.
It covers a wide range of thrust and realizes revolutionary "push and pull" that is also compatible with high-speed and high-frequency operation.
-
- High speed and high frequency
- 1,000mm/sec
-
- durability
- Up to 6 million round trips
-
- Compactness
- Up to 90 % lower floor
-
- Easy maintenance
- Easy stroke adjustment
Compared to screw mechanisms and hydraulic/pneumatic mechanisms, it has overwhelmingly high performance. Compared to conventional linear motion mechanisms
Zip Chain Mechanism
Screw mechanism
Hydraulic and pneumatic mechanism
I recommend it for these needs
-
- Want to improve production efficiency
-
High speed and high frequency
- Want to perform high-cycle operation.
- Want to quickly determine multiple stop positions
- I want to operate with a short time cycle even at a high lift.
-
- I want a machine with a long lifespan
-
durability
- I want to reduce the labor and costs involved in replacement work.
- Durability that can withstand high frequency operation is required.
- It has a high lift, long travel distance and a poor lifespan.
-
- A more compact production line
-
Compactness
- I want to achieve a low-profile equipment design without digging a pit.
- The installation space is small and difficult to install.
- I want to install a lifter on the cart.
-
- I want to reduce the hassle of maintenance
-
Ease of use
- It is difficult to change the oil regularly.
- We want to reduce the burden on workers by making the work easier.
- You want to avoid dangerous inspection work at high altitudes.
Tsubaki's lineup utilizing Zip Chain

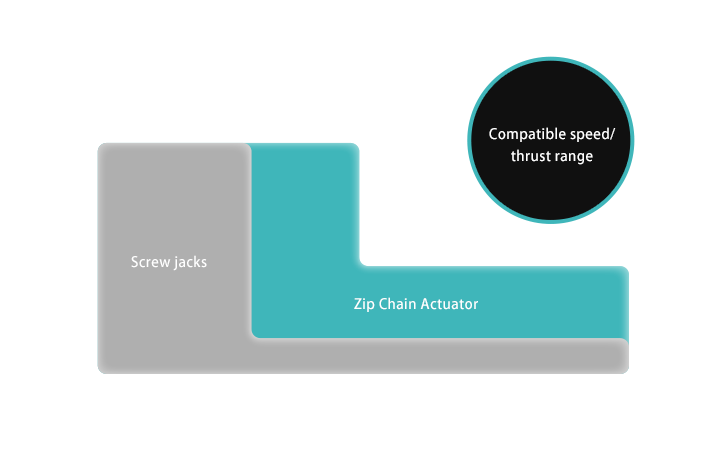

Zip Chain Actuator ZIP CHAIN ACTUATOR
Can be installed even in a small space,
A versatile linear actuator.
Zip Chain can be stored in a compact case, achieving far greater space savings than conventional linear actuators. It supports high-speed, high-frequency operation and uses significantly less power than hydraulic or pneumatic cylinders. It allows for highly accurate multi-point stopping and can be installed in any direction.

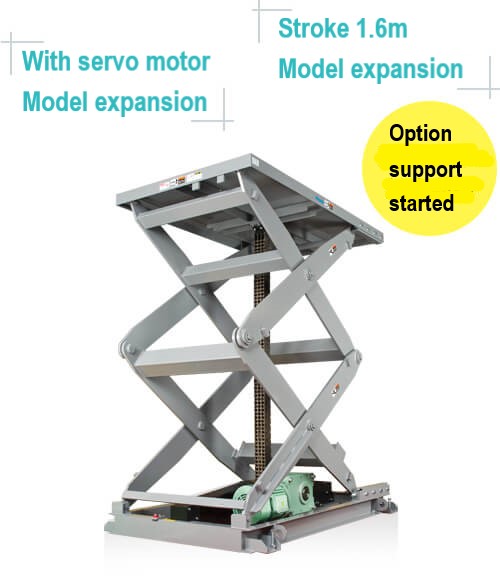

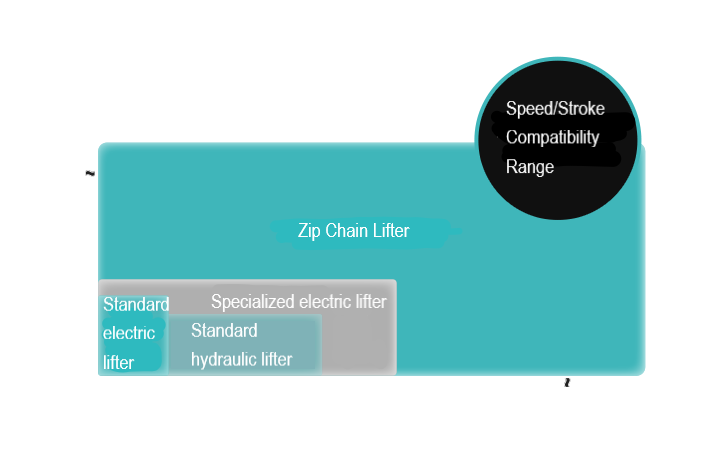

Zip Chain Lifter ZIP CHAIN LIFTER
Breakthrough high-speed lift
Table lifter realized.
This revolutionary lifter uses Zip Chain to directly transmit lifting thrust. It allows for high-speed lifting 3 to 10 times faster than hydraulic lifters, is suitable for frequent operation, and achieves energy savings of up to 50%.

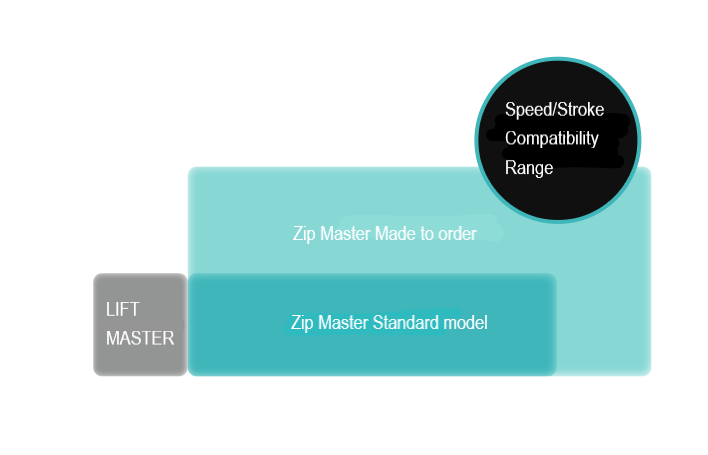

Zip Master
Supports Long travel length,
A cantilever electric lifter with a wide range of uses.
This is a cantilevered electric High-speed lifter that integrates Zip Chain, linear guide, and motor. Unlike conventional lifts that require assembly work, Zip Master 's "plug and play type" design means you can simply place it and use it. Its high speed, high frequency, and high lift allow for a wide range of applications.
