Tsubaki Cantilever Electric Lifter Feature Comparison and Applicable Range
~Comparison between Zip Master and Lift Master ~
We have posted a comparison of the features of Tsubaki's cantilever electric lifters, the Lift Master and Zip Master.
Please consider the best cantilever electric lifter for your application.
Comparison of features of cantilever electric lifters
| Series | Zip Master | Lift Master | ||
|---|---|---|---|---|
| Main Features |

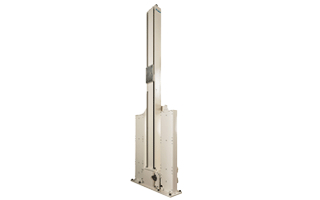

High speed and high frequency It also supports Long travel length.
|

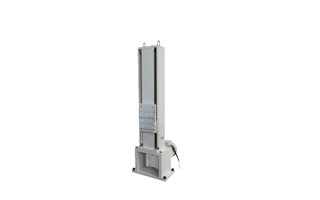

Compact and highly accurate Suitable for a wide range of uses.
|
||
| Drive system | Interlocking chain type | Screw and nut type | ||
|
Zip Chain
Features
|
Ball screw
High precision Trapezoidal Screw
Self-locking |
|||
| allowable load | ○ | 10kN (special types available up to 30kN) | ○ | 10kN (special types available up to 20kN) |
| Allowable Speed | ◎ | 1000mm/s (60m/min) | △ | 150mm/s (9m/min) |
| Stroke | ◎ | Up to 2000mm (special shapes available up to 4m) | △ | 400 to 1500 mm (special shapes available up to 2 m) |
| Allowable Frequency | ◎ | High frequency operation that surpasses other methods | ○ | Within the allowable Percentage duty cycle of the screw |
| Stopping accuracy and controllability | △ | Position control possible even during high-speed operation | ○ | High-precision screws for high positioning accuracy |
| lifespan | ◎ | 1 million round trips | ○ | Ball screw type has predictable lifespan |
| Quietness | △ | The chain meshes smoothly and quietly | ○ | Highly silent screw drive |
| Variations | ○ | Can handle a wide range of applications, including Long travel length and high loads | ◎ | Many specifications available (low-floor specifications, clean specifications, etc.) |
| Compact | ○ | Slim and self-standing | ◎ | Slimmer and self-standing |
| Complex movements | △ | Consideration upon request | ◎ | Compact, highly accurate and capable of multiple operations |
| Product Page | ||||

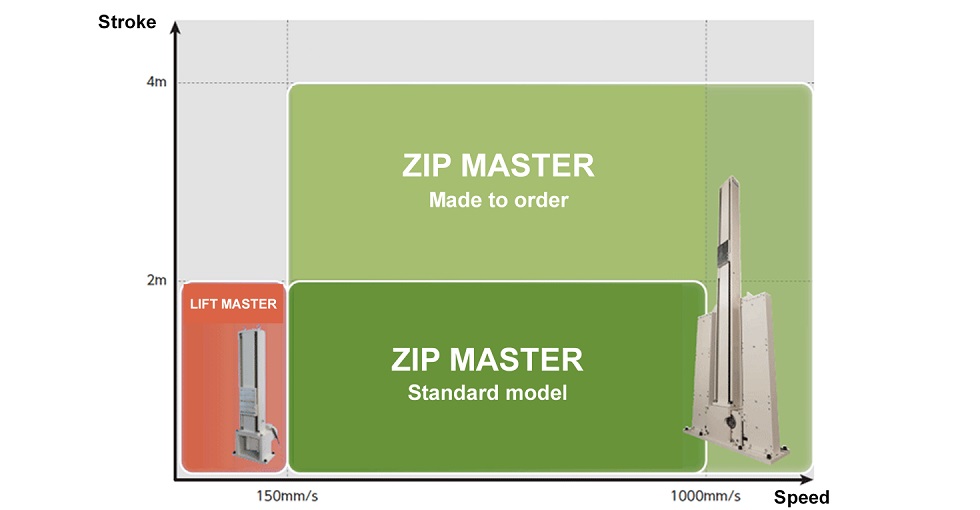

Comparison of the applicable range of cantilever electric lifters
