NEP Coated Chain -NEPTUNE Features and Application Examples
The combination of Tsubaki's newly developed special coating and special resin coating
High corrosion resistance (rust prevention) and chemical resistance
Tsubaki coated chain NEP Series NEPTUNE has been renewed!
Maintains corrosion resistance and chemical resistance to water and alkaline chemicals
Greatly improved corrosion resistance to salt water!

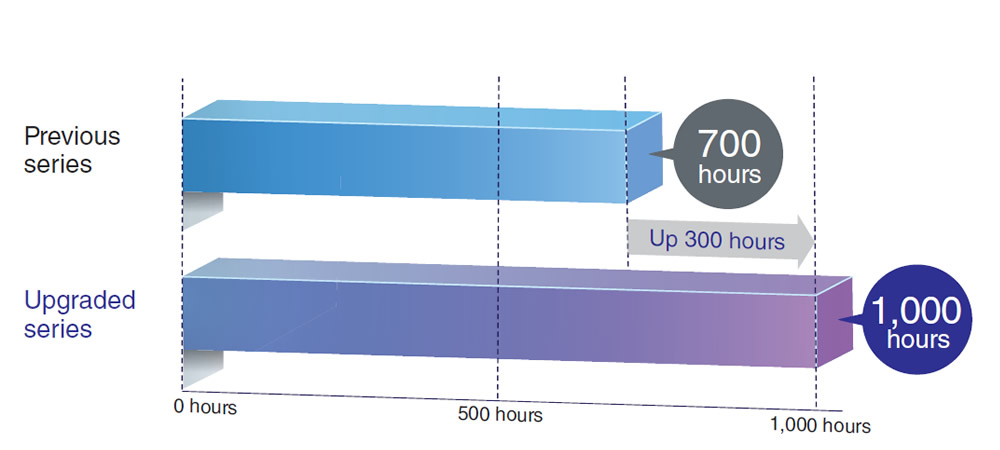

The renewal has improved corrosion resistance to salt water from the previous 700 hours to 1,000 hours (compared to our previous model).
It also has excellent chemical resistance to alkaline chemicals that are often used in the cleaning process of food processing equipment.

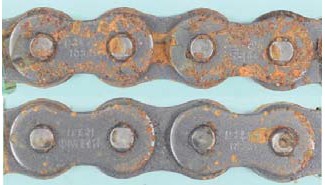

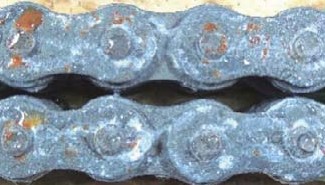

Salt spray test
Excellent corrosion and chemical resistance
| Corrosion resistance (rust prevention) | Salt spray test | ||
|---|---|---|---|
| General-purpose roller chain | Conventional product NEPTUNE | Renewal product NEPTUNE | |
10 hours have passed |
1000 hours passed |
1000 hours passed |
|
- The renewed specifications achieve even greater corrosion resistance. (Testing methods for highly corrosive environments conform to the salt spray test JIS-Z-2371.)
- The rollers also use the same coating as the plates, pins and bushings.

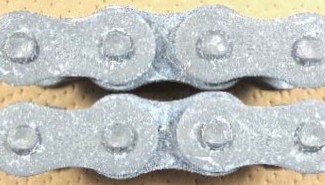

| Chemical resistance | Immersion in 1000 ppm sodium hypochlorite solution | Salt spray test after immersion in 5% sodium hydroxide solution |
|---|---|---|
| Renewal product NEPTUNE | Renewal product NEPTUNE | |
2000 hours passed |
|
- Corrosion resistance to sodium hypochlorite solution remains the same as previous specifications. (Results of immersion test in sodium hypochlorite solution are shown.)
- Tsubaki's unique chemical resistance evaluation method is designed for sodium hydroxide solution.
- Chemical resistance is also equal to or better than conventional specifications. (Indicated after 45 hours of immersion and 65 hours of salt spray testing.)

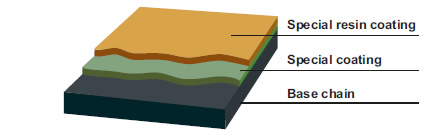

New surface treatment
- Tsubaki's original new development
- Special Coating: A new surface treatment with a special resin coating provides high corrosion resistance (rust prevention) and chemical resistance!
No loss of strength
A special treatment is used that does not affect chain strength (component hardness).
The chain's tensile strength and allowable tension are the same as standard steel chains.
| Specification | Standard Specifications | NEP Series | Zinc chromate composite coating | NP Series | stainless SS Series |
|---|---|---|---|---|---|
| Minimum Tensile Strength | 17.7 {1800} | 17.7 {1800} | 16.6 {1690} Note | 17.7 {1800} | - |
| Maximum allowable load | 3.63 {370} | 3.63 {370} | - | 3.04 {310} | 0.69 {70} |
Reducing environmental impact
NEPTUNE NEP Series Coated Chain does not contain any harmful hexavalent chromium, which is used in anti-rust surface treatment, nor any other harmful substances such as lead, cadmium, mercury, or arsenic. It also complies with the RoHS Directive.
- What is the RoHS Directive?
- European Union Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
Case studies of NEP Series NEPTUNE

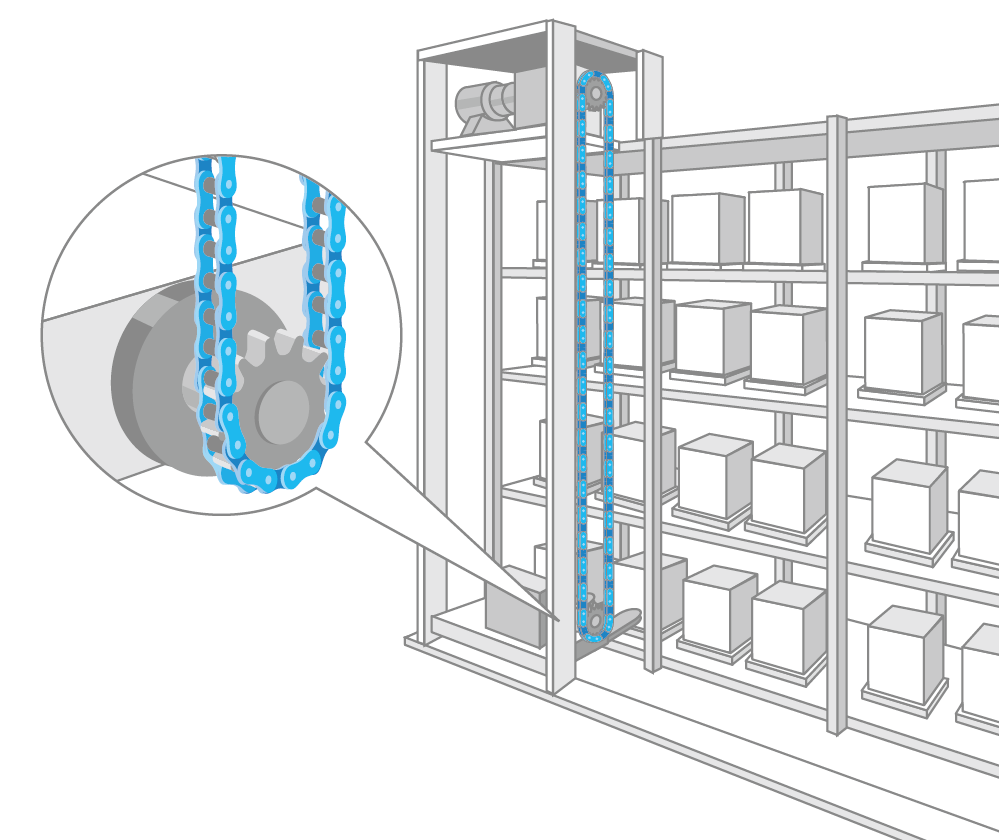

automated warehouse
Stacker crane for mushroom cultivation.
Due to the high temperature and humidity, steel chains would corrode and wear out in a very short period of time, and stainless steel chains would be too large, so NEP Series was adopted.

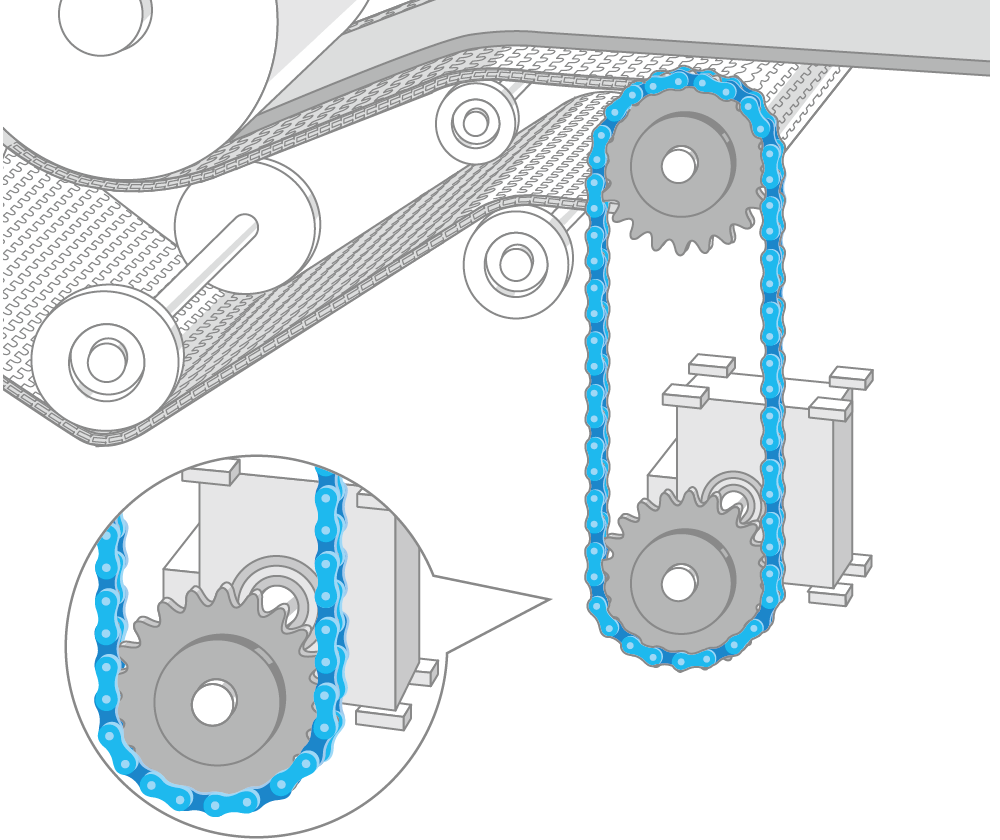

Sheet transport drive unit
A drive chain for the roller that transports wet sheets.
The device was used in a humid environment, and water droplets from the seat would get on the chain. The device was designed to use a general-purpose chain, but the corrosive environment was more severe than expected, causing corrosion problems.
NEP Series, which have the same power transmission capacity and high corrosion resistance, allowed us to solve the corrosion problem without having to renovate the equipment.

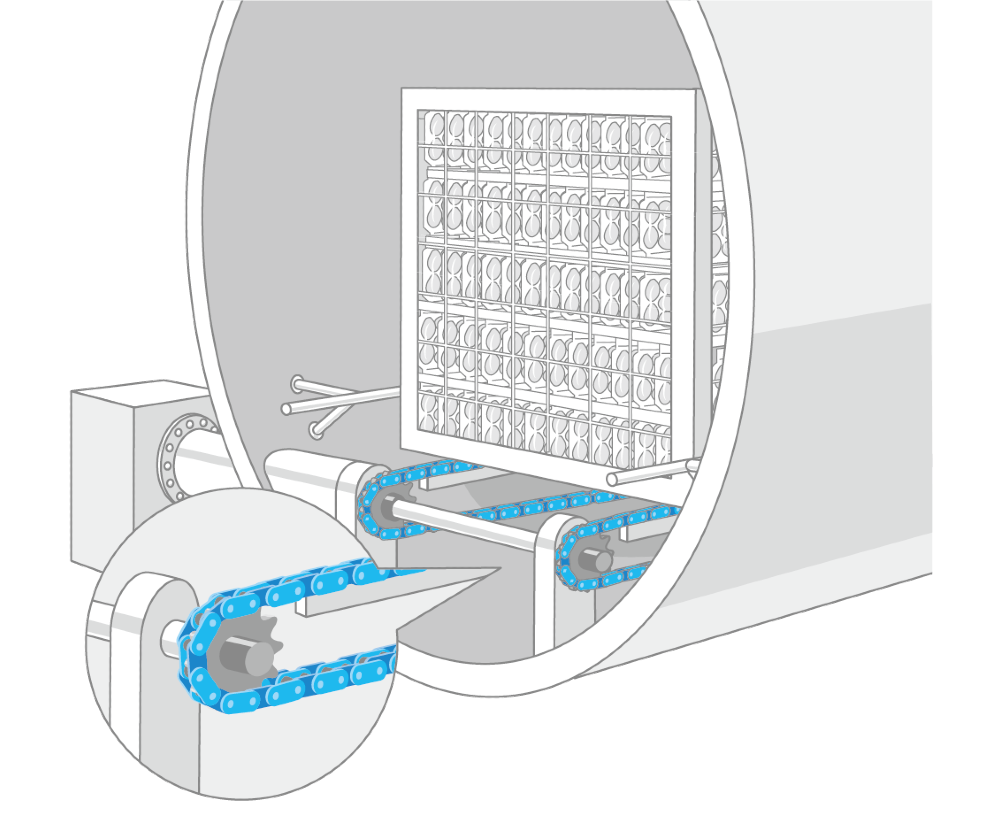

Cleaning machine
A machine for washing pouches containing packed food.
Chains are used to transport heavy loads and are exposed to large amounts of cleaning water.
Previously, we had been using stainless steel chains made by other companies, but they had to be replaced frequently due to wear and tear.
In addition to its excellent corrosion resistance, NEP Series offers wear resistance equivalent to that of heat-treated chains, resulting in improved running costs and operational efficiency.

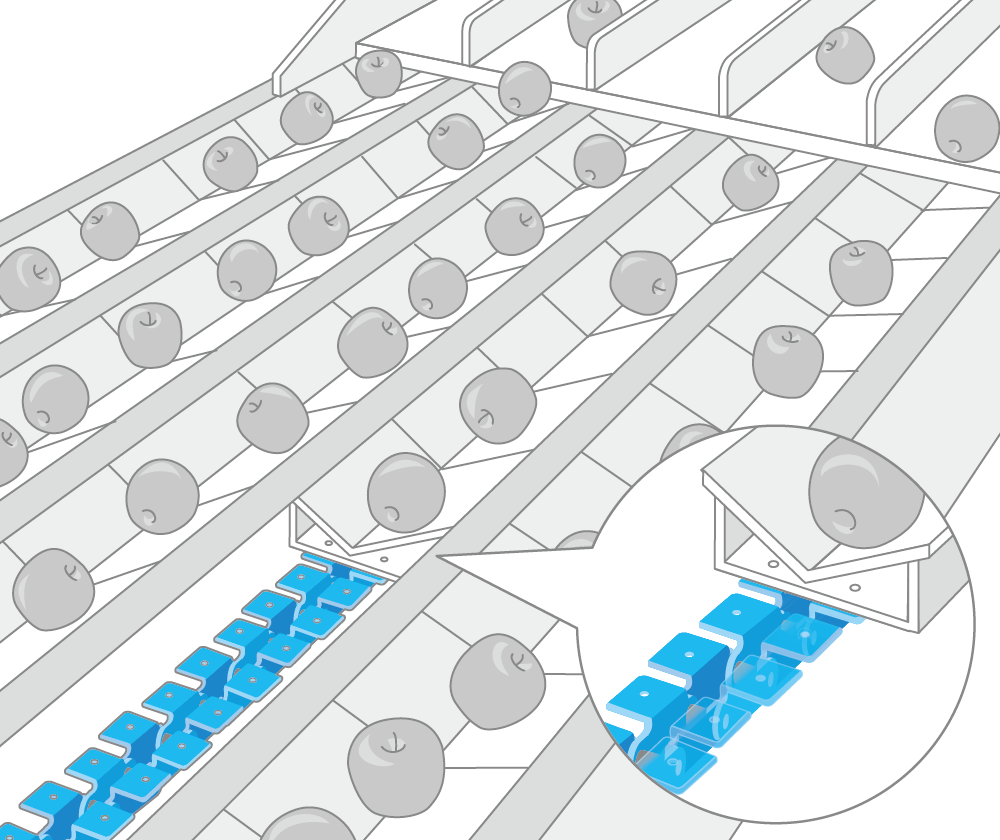

Fruit sorting machine
A sorting machine that sorts large amounts of fruit quickly and efficiently.
Chains have become one of the quality criteria by which customers select equipment.
NEP Series offers Tsubaki's stable quality, including uniform length and excellent wear elongation, as well as corrosion resistance in cleaning environments, contributing to shorter equipment delivery times and stable operation.
