technical data Synchronous Belts and Belt Sprockets Selection
Synchronous Belts provisional selection table
PX Belt / PX Belt RC Type

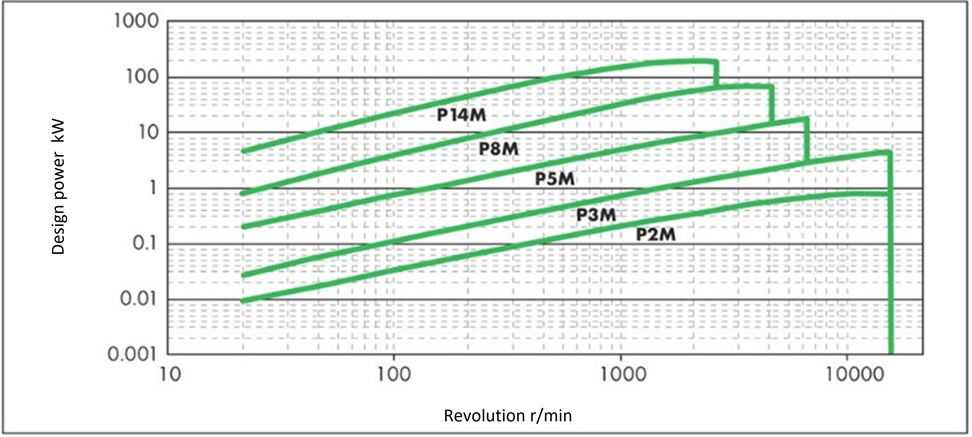

Standard transmission capacity

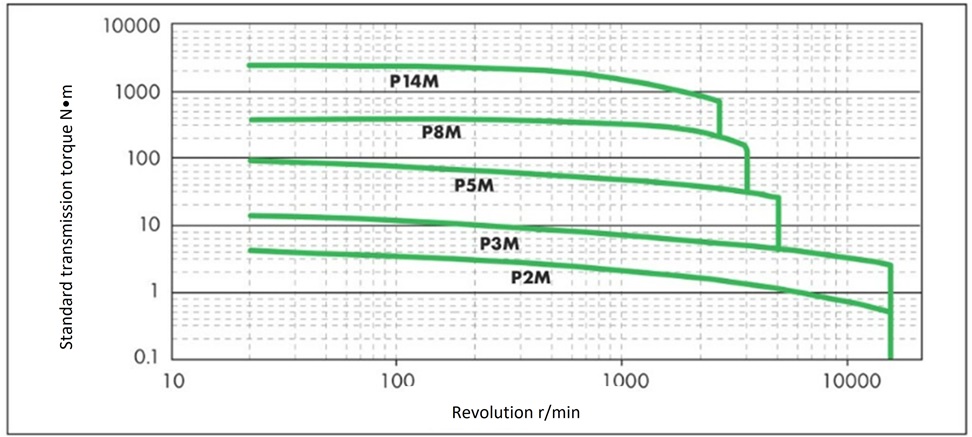

Reference transmission torque
Target width of provisional selection table
| Belt Type | Applicable belt | Maximum target width [mm] |
|---|---|---|
| PX Belt / PX Belt RC Type |
P2M | 10 |
| P2M-RC | ||
| P3M | 15 | |
| P3M-RC | ||
| P5M | 25 | |
| P5M-RC | ||
| P8M | 60 | |
| P8M-RC | ||
| P14M | 120 | |
| P14M-RC |
*This table shows the maximum width of standard products.
Ultra PX Belt HC Type

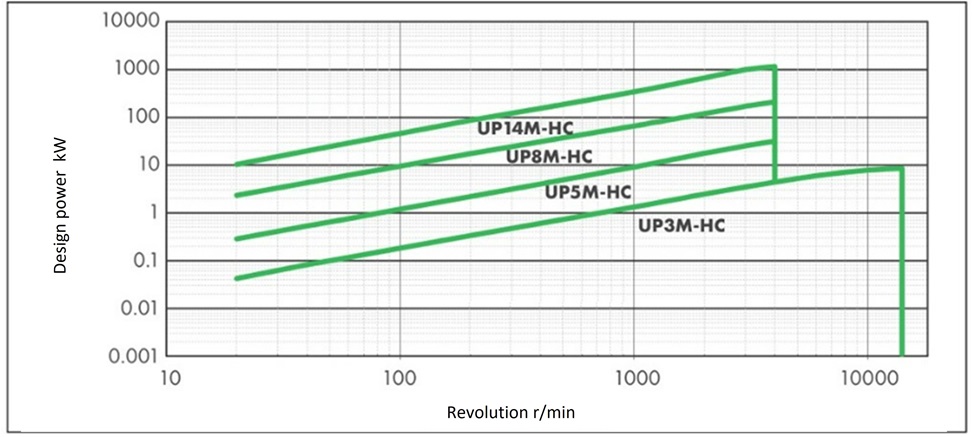

Standard transmission capacity

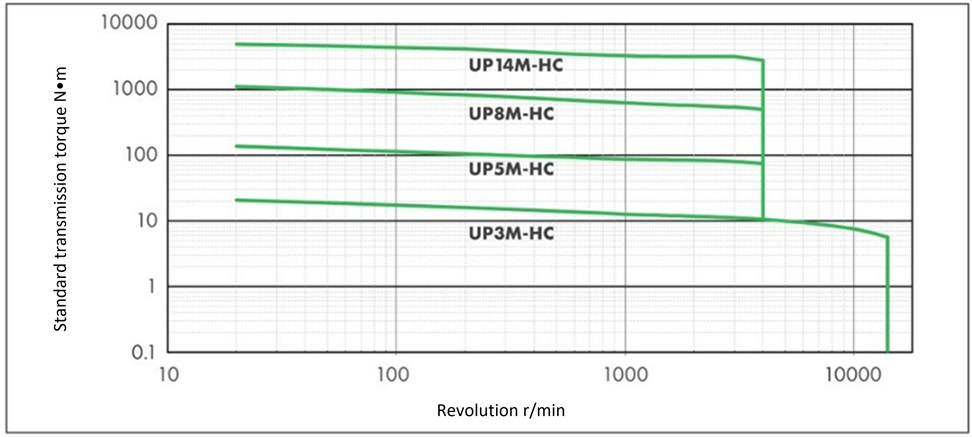

Reference transmission torque
Target width of provisional selection table
| Belt Type | Applicable belt | Maximum target width [mm] |
|---|---|---|
| Ultra PX Belt HC Type |
||
| UP3M-HC | 15 | |
| UP5M-HC | 25 | |
| UP8M-HC | 60 | |
| UP14M-HC | 120 |
*This table shows the maximum width of standard products.
Ultra PX Belt HA specification (oil/water resistant)

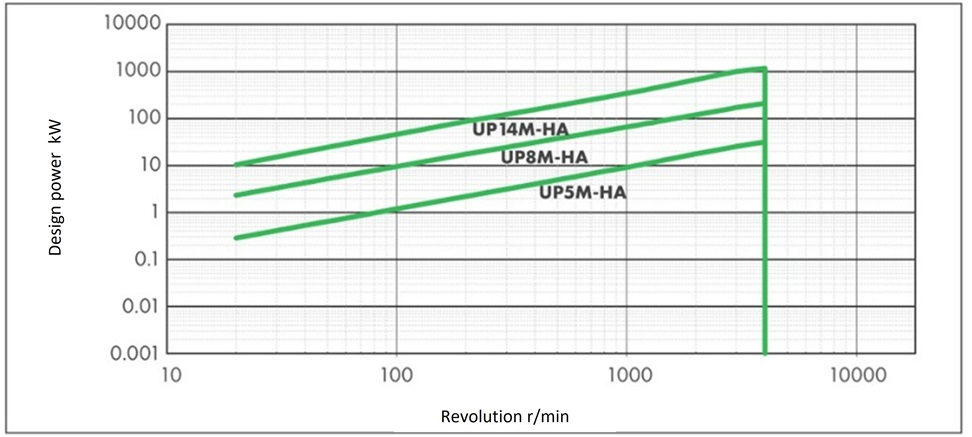

Standard transmission capacity

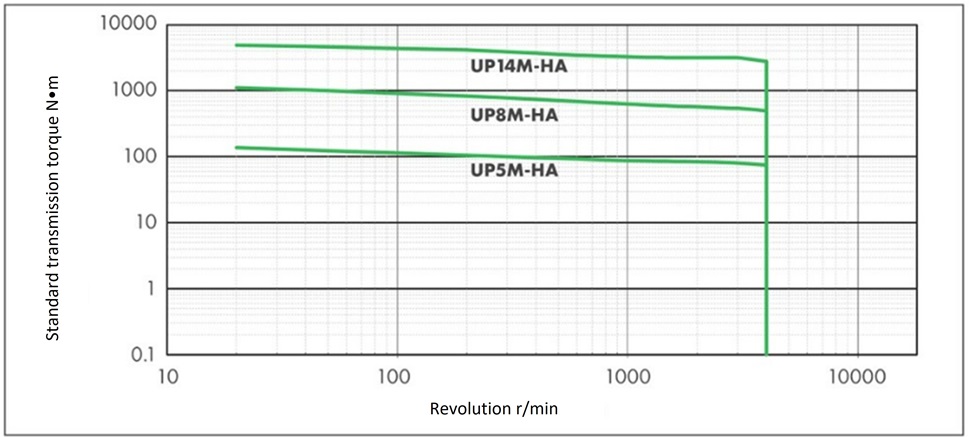

Reference transmission torque
Target width of provisional selection table
| Belt Type | Applicable belt | Maximum target width [mm] |
|---|---|---|
| Ultra PX Belt HA specifications (oil/water resistant) |
||
| UP5M-HA | 25 | |
| UP8M-HA | 60 | |
| UP14M-HA | 120 |
*This table shows the maximum width of standard products.
Ultra PX Belt HY Type

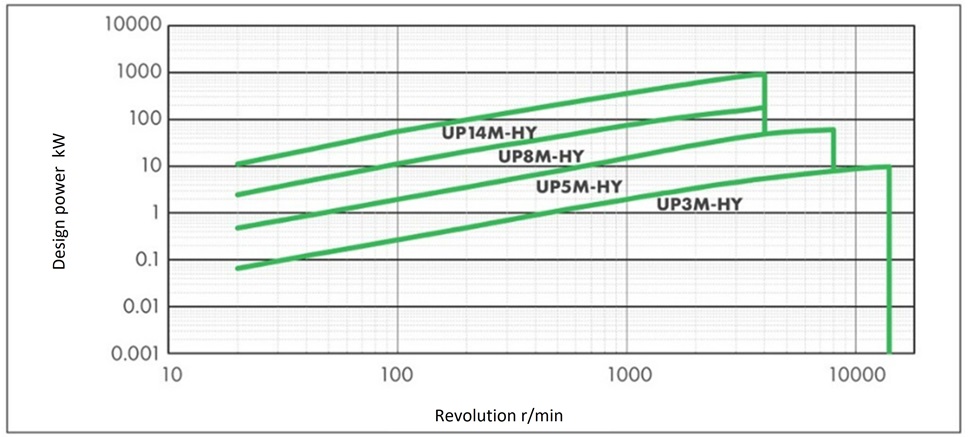

Standard transmission capacity

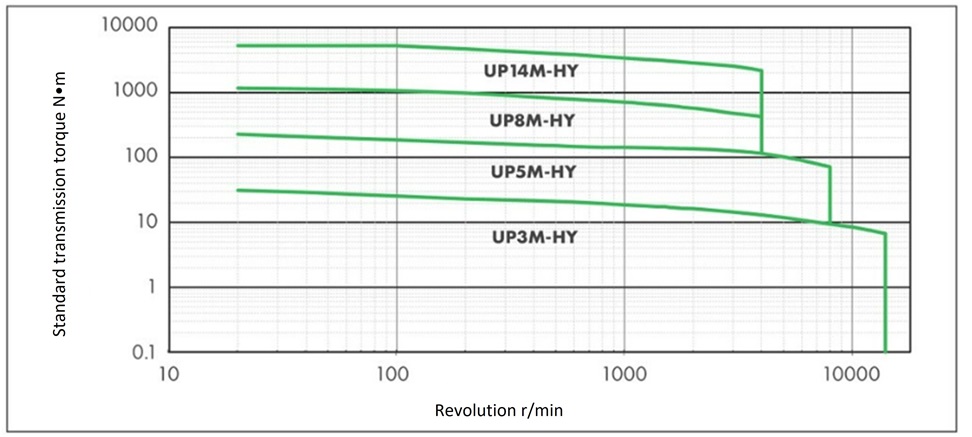

Reference transmission torque
Target width of provisional selection table
| Belt Type | Applicable belt | Maximum target width [mm] |
|---|---|---|
| Ultra PX Belt HY Type |
||
| UP3M-HY | 15 | |
| UP5M-HY | 25 | |
| UP8M-HY | 60 | |
| UP14M-HY | 120 |
*This table shows the maximum width of standard products.
