technical data linear actuator Zip Chain Actuator Hypoid Motor with Standard Terminal Box

Standard terminal box specifications

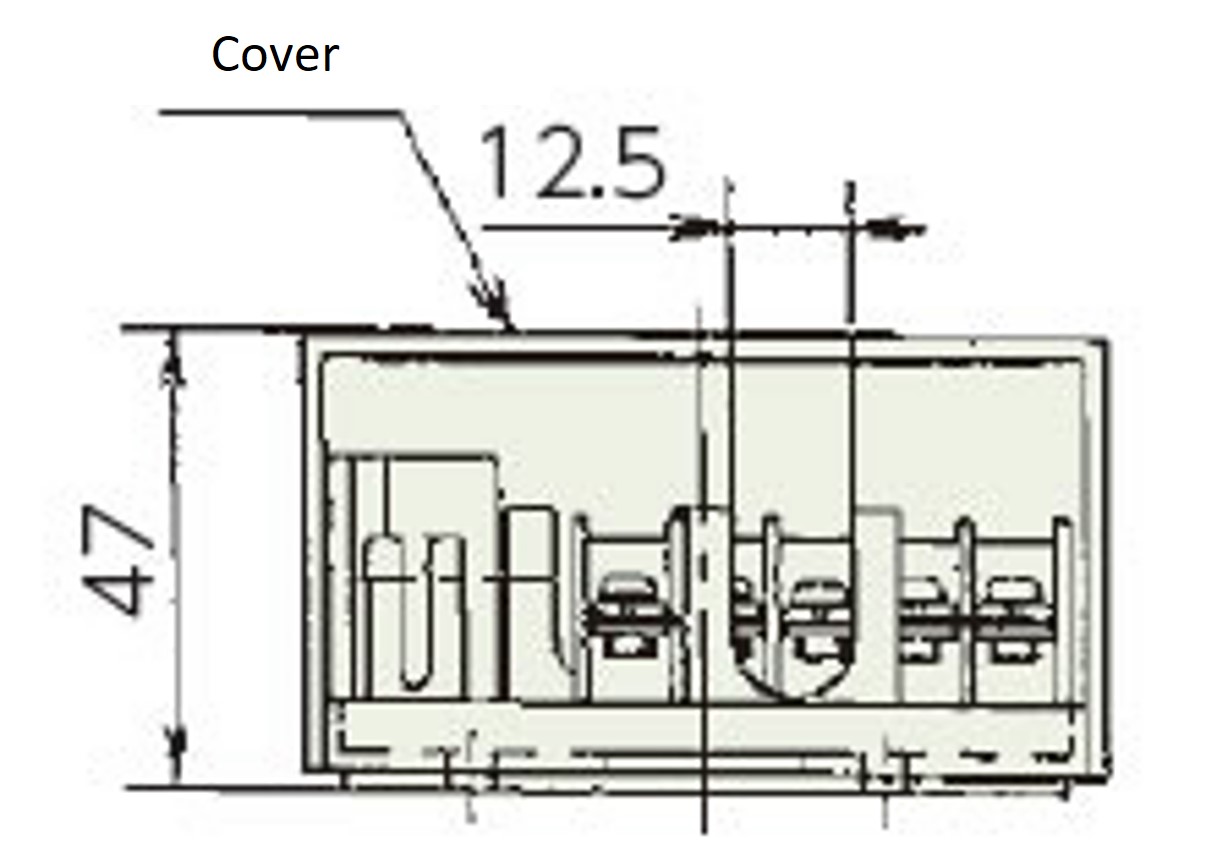

  Terminal Dimensions Terminal box position

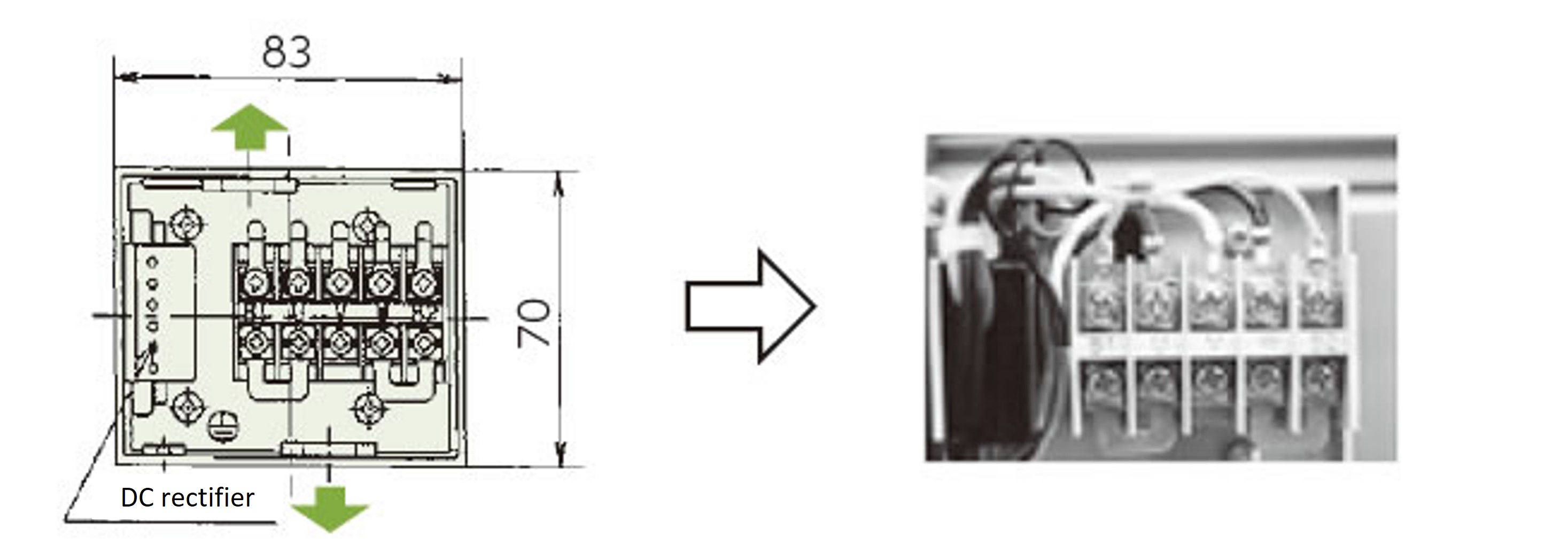

With brake Terminal Dimensions
Terminal Dimensions
  • 1. Terminal screw size
    M3.5 [Tightening torque 0.8N・m {0.08kgf-m}]
  • 2. Ground terminal screw size
    M4 [Tightening torque 1.2N・m{0.12kgf-m}]
  • 3. The terminal box outlet direction can be changed by the customer by fitting the cover up or down.

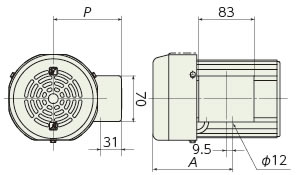

 Terminal box position
Motor Output A P
0.2kW 119.5 104.5
0.4kW 119.5 104.5
