technical data linear actuator Zip Chain Actuator Hypoid Motor with Brake Motor Wiring

Brake motor wiring

1.ZCA25M：60W・90W

・Standard products are shipped with AC internal wiring.

・Response times vary depending on the wiring, so refer to the diagram below and select the appropriate setting according to your application.

Purpose Three-phase motor standard voltage
(200V class)		 Three-phase motor voltage doubler
(400V class)
AC internal wiring
  • ・General use
  • ・Standard shipping specifications

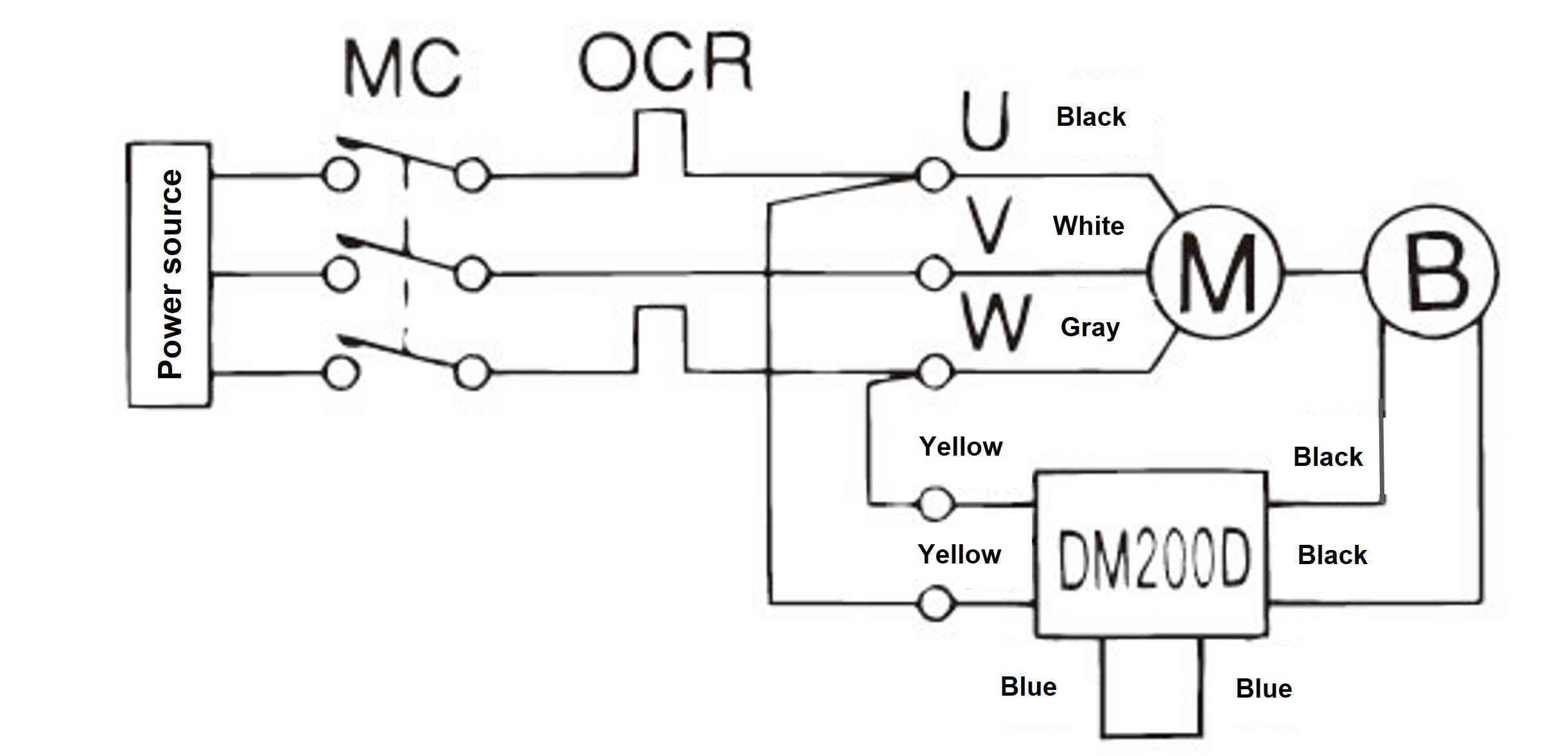

 三相モータ　標準電圧　交流同時切り

[Click to enlarge]

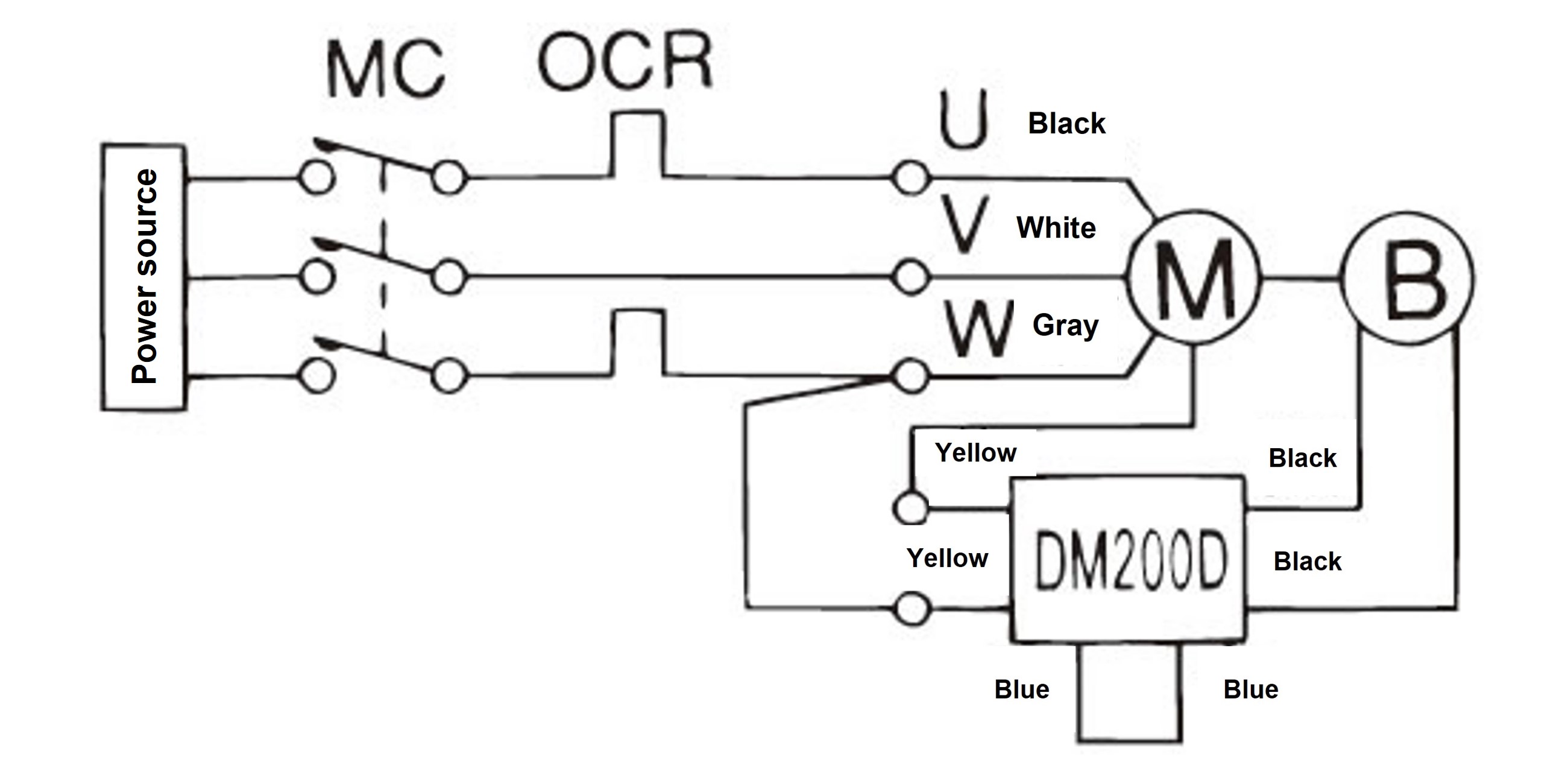

 三相モータ　倍電圧　交流同時切り

[Click to enlarge]
AC external wiring
  • ・When you want to shorten the downtime

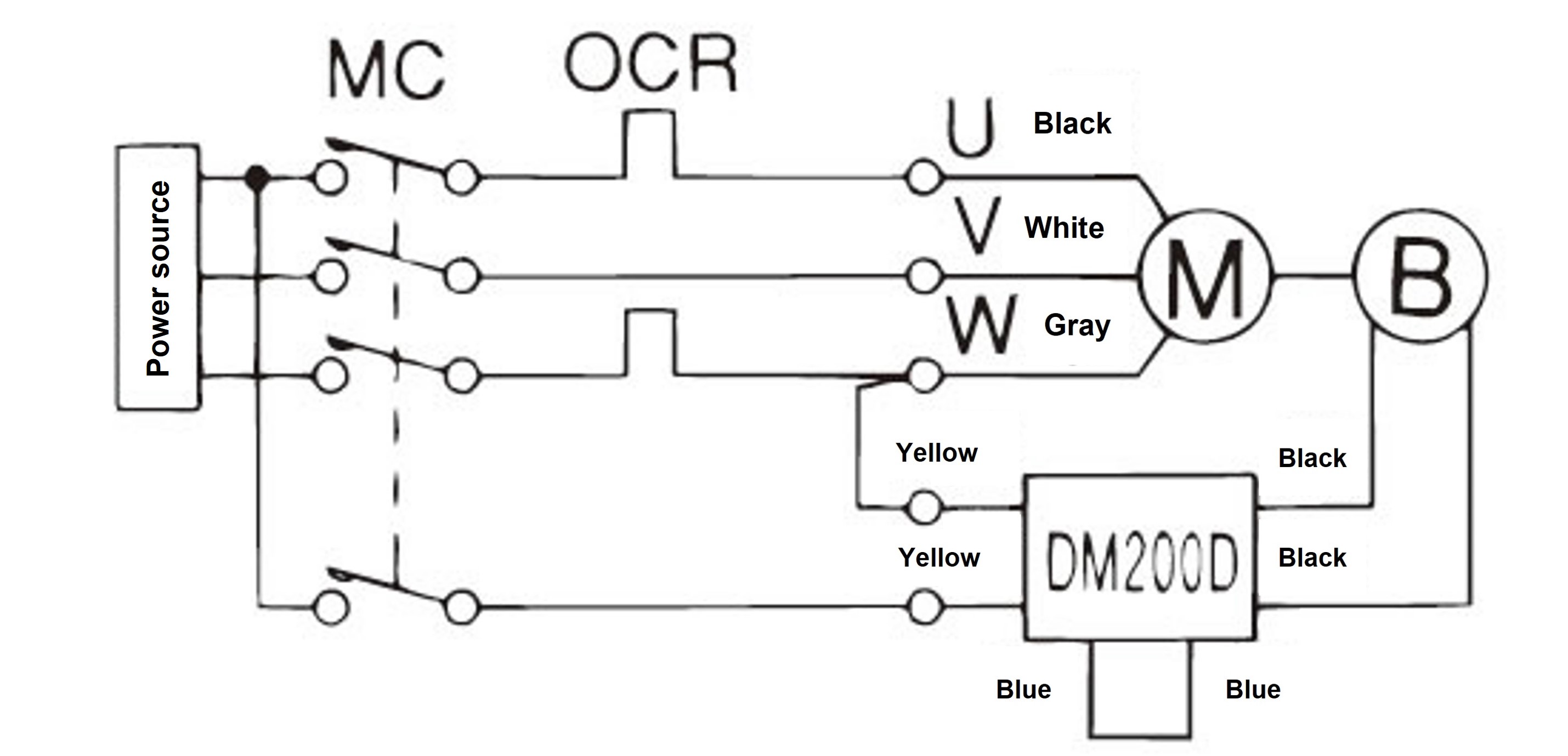

 三相モータ　標準電圧　交流別切り

[Click to enlarge]

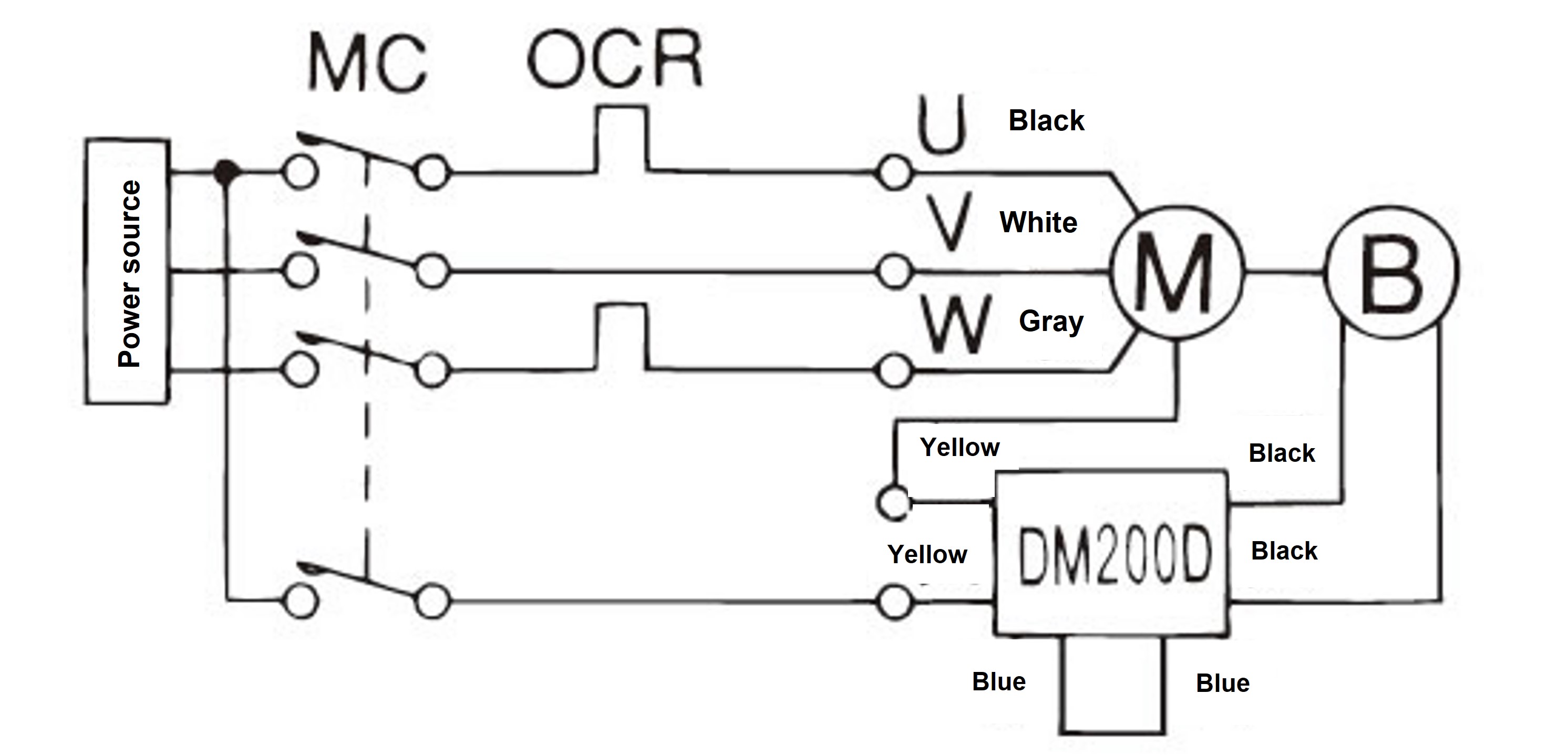

 三相モータ　倍電圧　交流別切り

[Click to enlarge]
AC external operation
  • ・When operating the brakes separately

Note: Use Auxiliary relay MCa with a rated load of 200V AC 7A or more.

 三相モータ　標準電圧　交流別操作

[Click to enlarge]

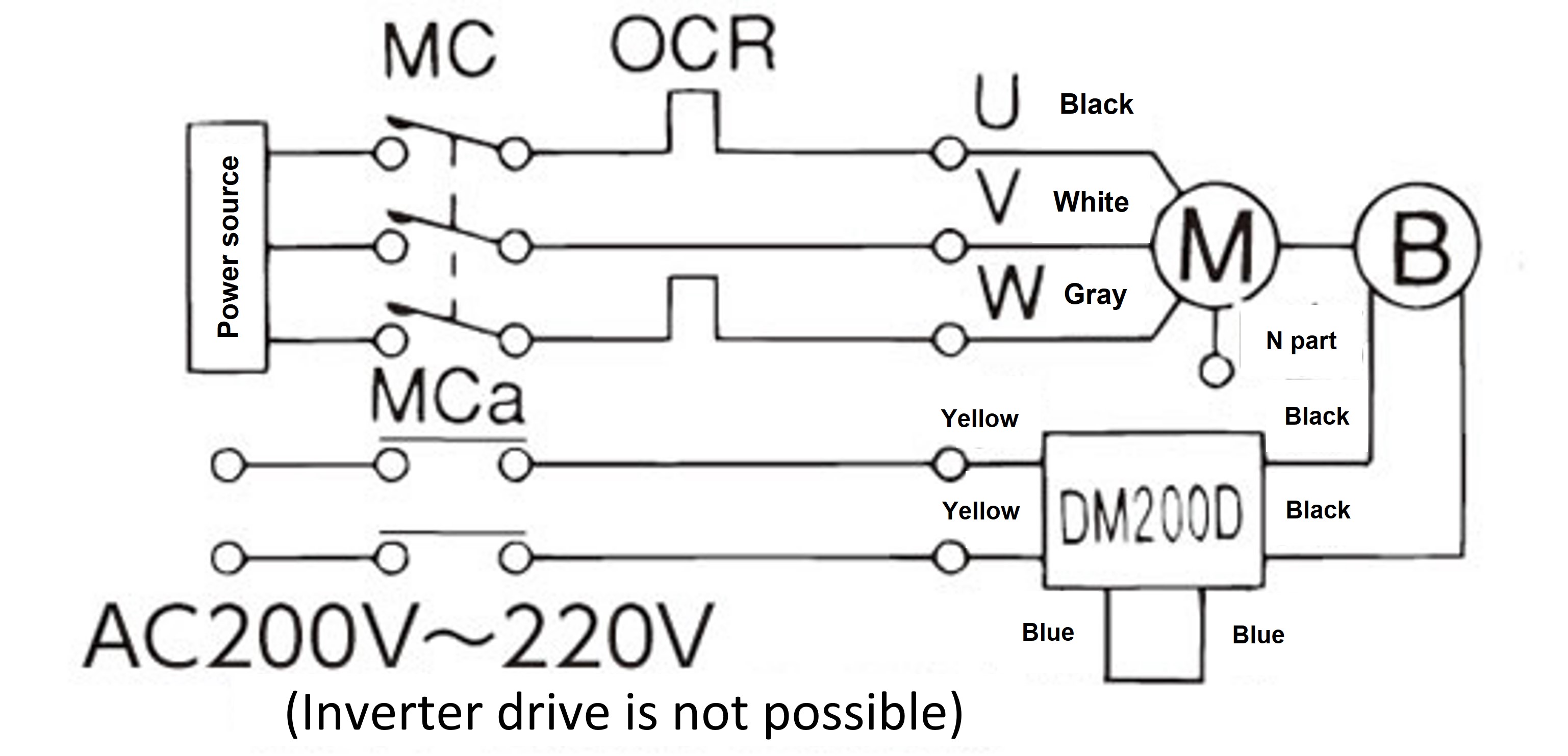

 三相モータ　倍電圧　交流別操作

[Click to enlarge]

Note: Be sure to cut off the N part connected with the closed end connector and insulate the N part.
Also, if you use a transformer to input 200V voltage to DC rectifier, use a transformer with a capacity of 60VA or more.
DC external wiring
  • ・When lifting equipment and stopping precision are required

Note: *Please use a setting capacity of AC200V 10A or more.

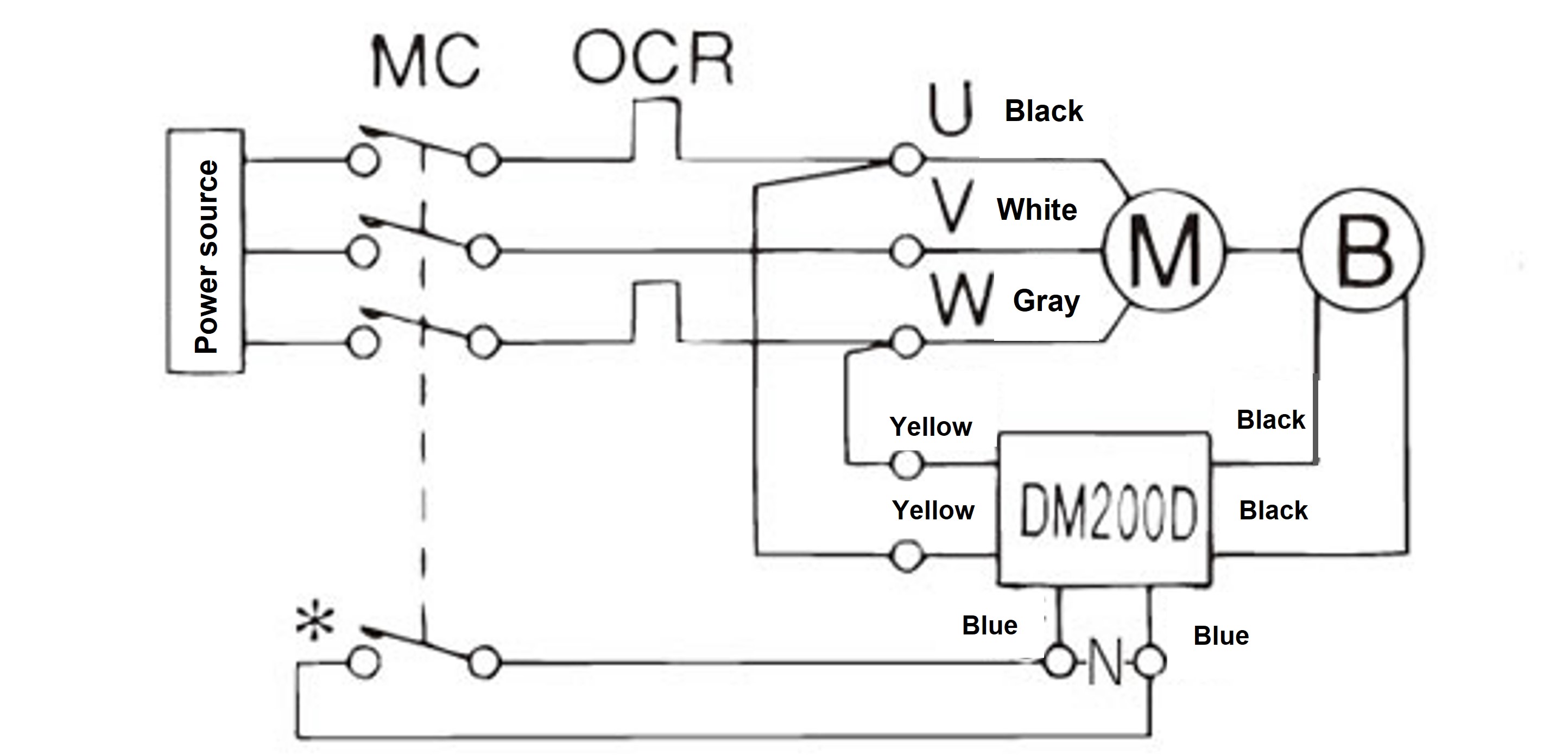

 三相モータ　標準電圧　直流別切り

[Click to enlarge]

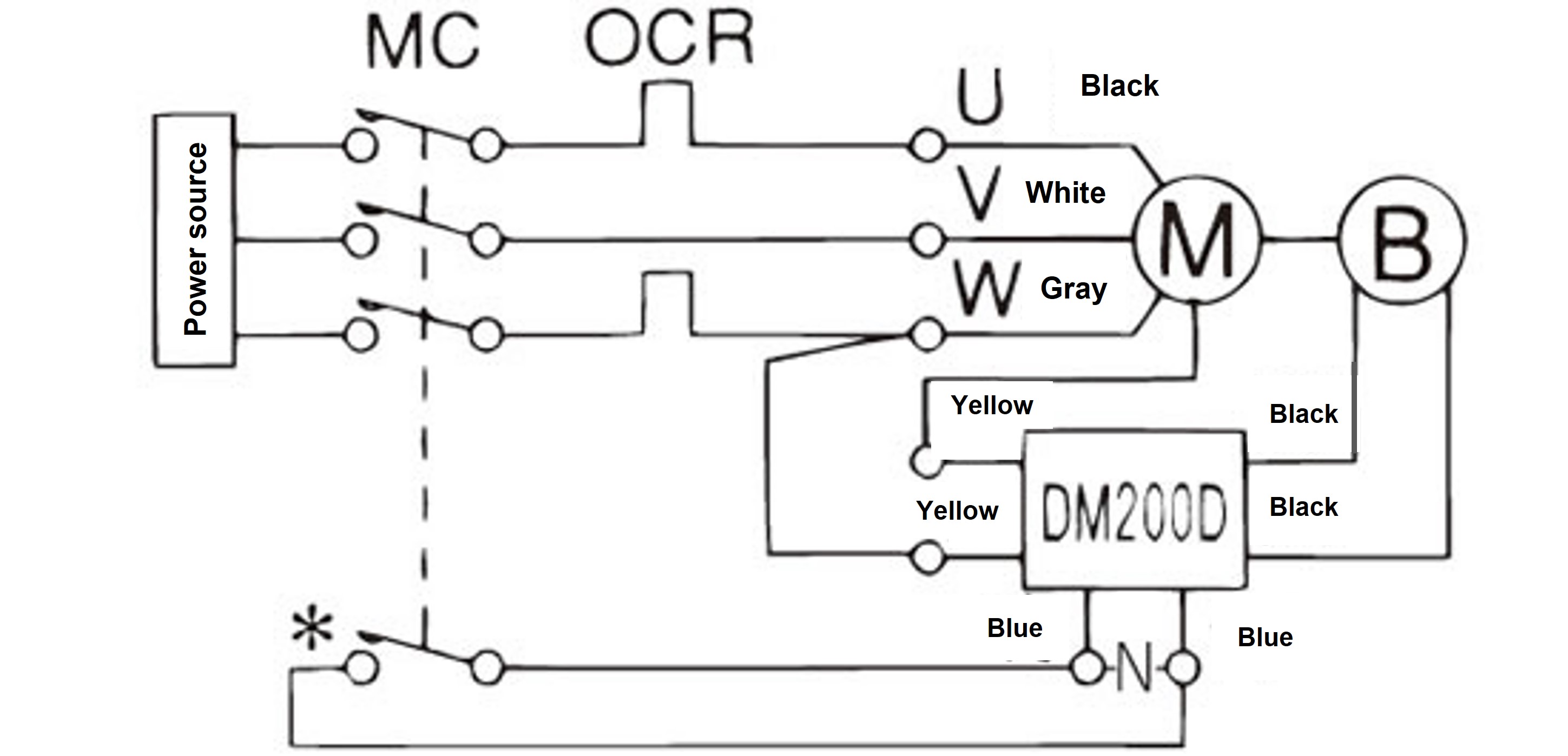

 三相モータ　倍電圧　直流別切り

[Click to enlarge]
  • M: Motor
  • B: Brake
  • MC: Magnetic contactor
  • MCa: Auxiliary relay
  • OCR: Overcurrent relay
  • C: Capacitor (accessory)
  • DM200D: DC rectifier
  • -N-: Protection element (varistor)
  • Note 1) After wiring, before turning on the power, make sure that the yellow (or red) lead wires of DC rectifier are on the power supply side and the black lead wires are on the brake side.
  • Note 2) DC rectifier has a built-in diode, so if it is shorted due to incorrect wiring, DC rectifier will be damaged.
  • Note 3) Add protective elements to each contact as necessary.
  • Note 4) When using an inverter, do not use it on a circuit other than that for AC external operation.
  • Note 5) When using DC external wiring, the brake power supply module may be damaged depending on the wiring length, wiring method, relay type, etc., so connect a varistor between the DC external wiring terminals. It is more effective to connect it near the brake power supply module (to the blue lead wire). The specific varistor model numbers are as follows, but equivalent varistors can also be used. For the DM200D, select a varistor voltage of 470V.
    Product name Manufacturer Model number
    When using the DM200D
    surge absorber Panasonic Corporation ERZV14D471
    Ceramic varistor Nippon Chemi-Con Corporation TND14V-471KB00AAA0

2. ZCA35M・45M：0.2kW・0.4kW・0.75kW

・Standard products are shipped with AC internal wiring.

・Response times vary depending on the wiring, so refer to the diagram below and select the appropriate setting according to your application.

Purpose Three phase 200V
0.2kW・0.4kW		 Three phase 200V
0.75kW
AC internal wiring
  • ・General use
  • ・Standard shipping specifications

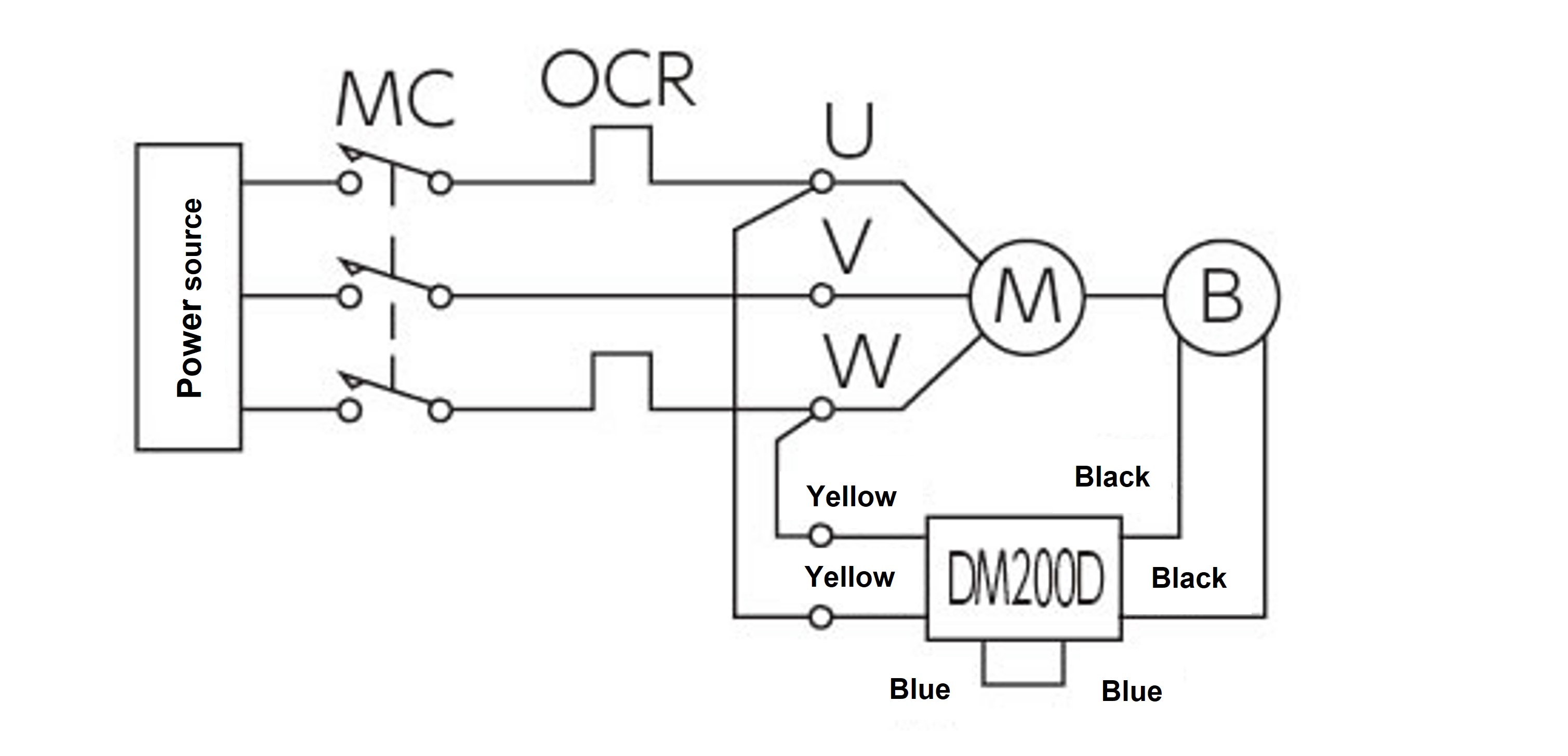

 三相200V　0.2kW・0.4kW　交流同時切り

[Click to enlarge]

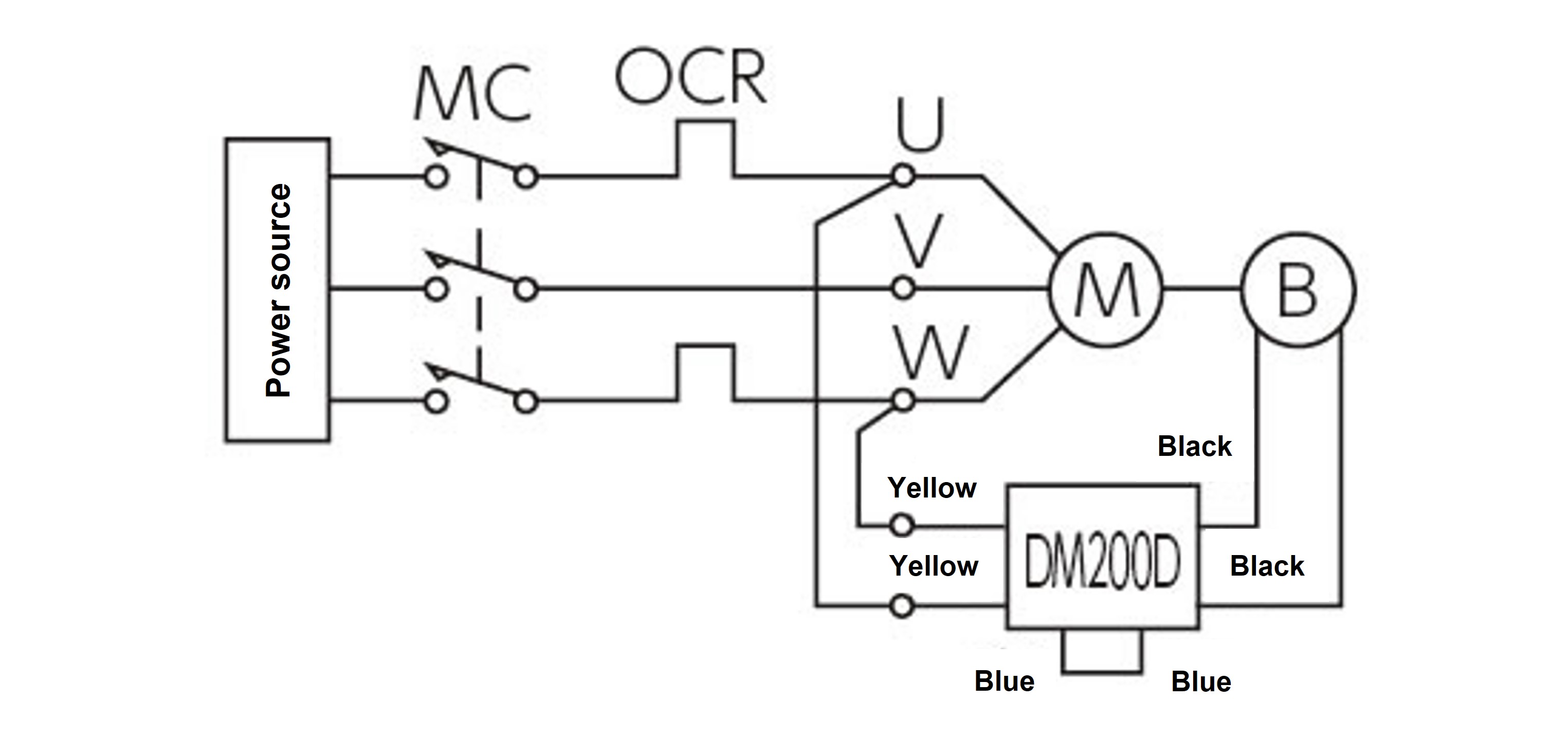

 三相200V　0.75kW　交流同時切り

[Click to enlarge]
AC external wiring
  • ・When you want to shorten the downtime
 三相200V　0.2kW・0.4kW　交流別切り

[Click to enlarge]

 三相200V　0.75kW　交流別切り

[Click to enlarge]
AC external operation
  • ・For inverters

    (The inverter is located in the MC section.
    Please)

  • ・When operating the brakes separately

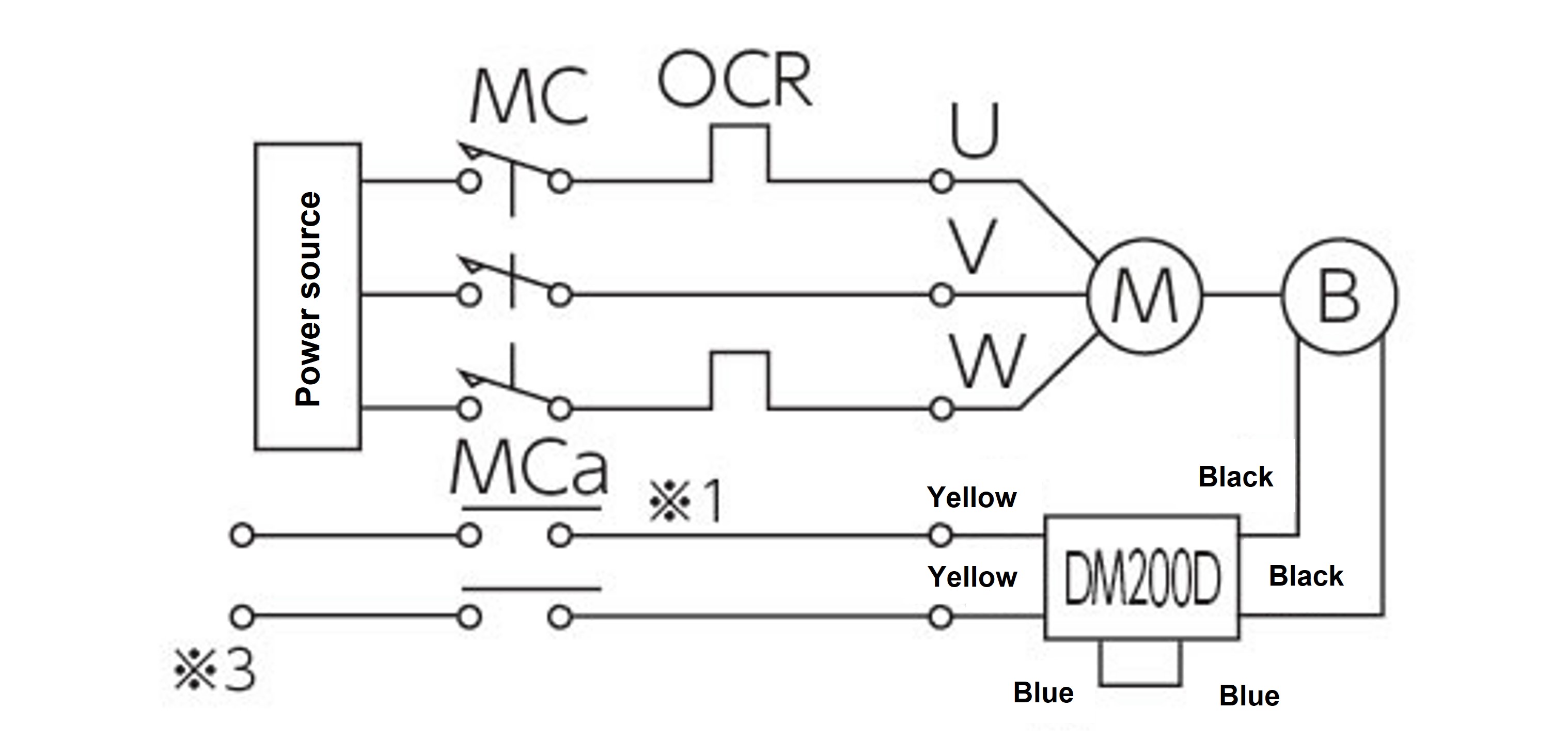

 三相200V　0.2kW・0.4kW　交流別操作

[Click to enlarge]

*3 The supply voltage for the brake marked with 3 is AC200V to AC254V for 0.1kW and 0.2kW.
For 0.4kW, use AC200V to AC220V.

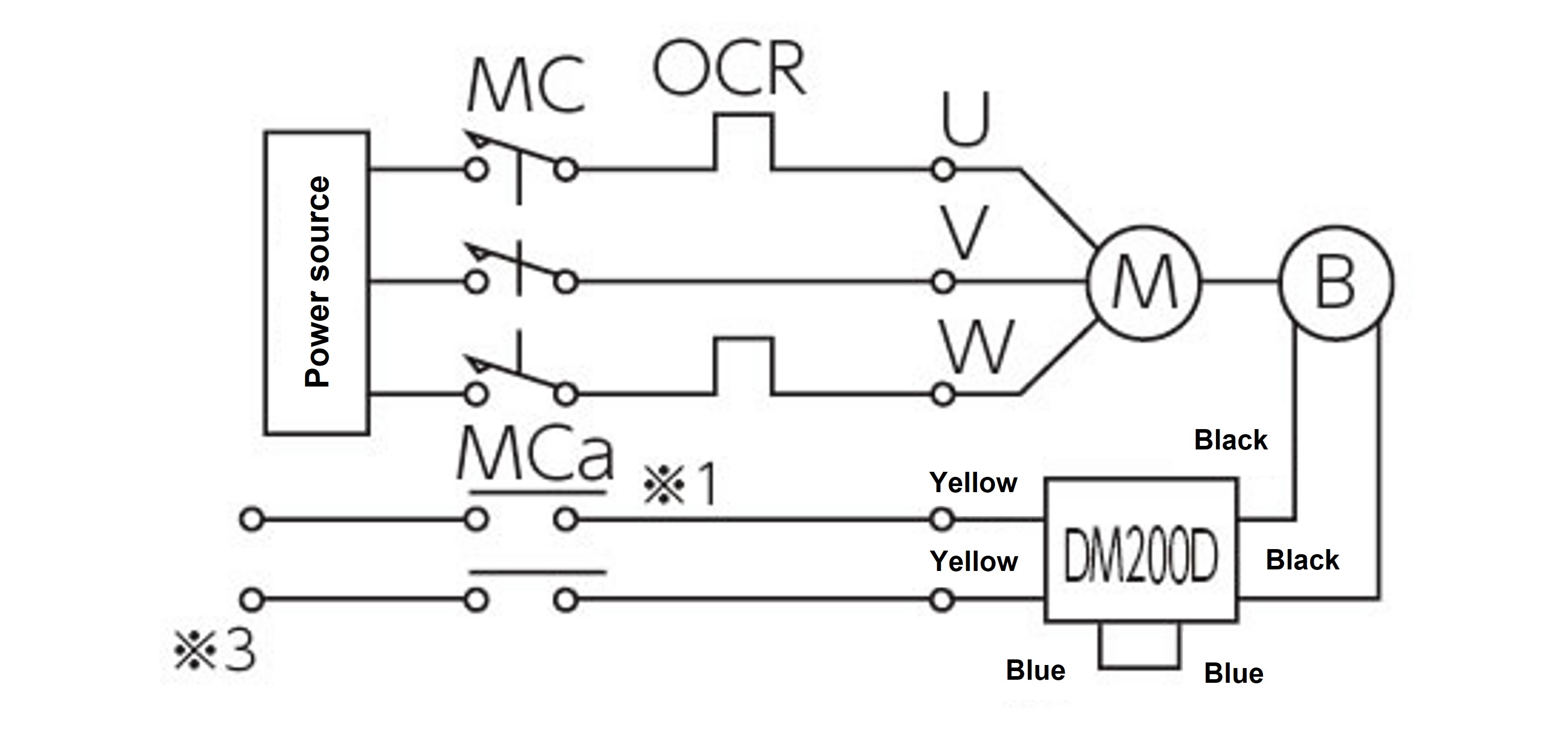

 三相200V　0.75kW　交流別操作

[Click to enlarge]

*3 The supply voltage for the brake marked with 3 should be AC200V to AC220V.
DC external wiring
  • ・When stopping accuracy is required

    (e.g. lifting devices)

 三相200V　0.2kW・0.4kW　直流別切り

[Click to enlarge]

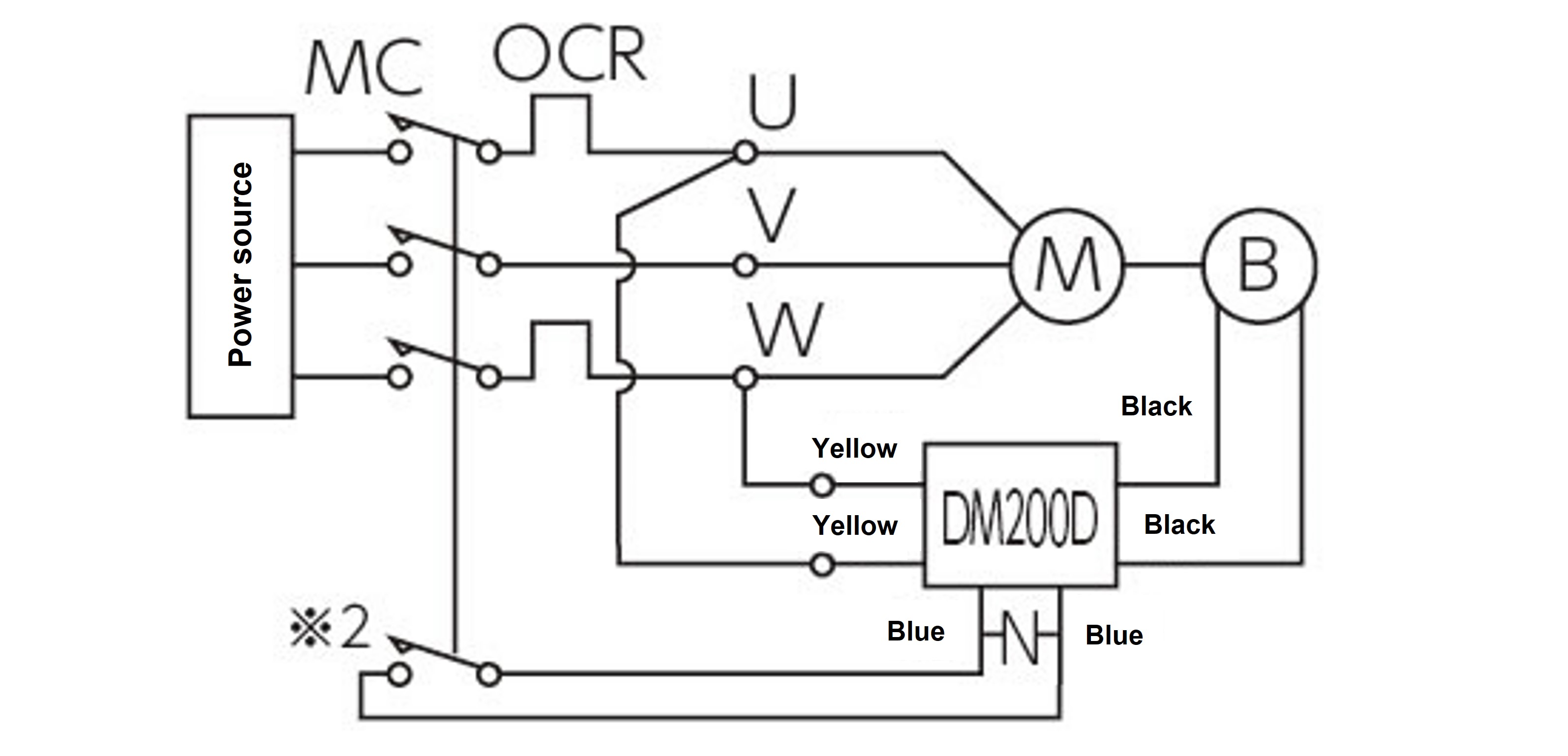

 三相200V　0.75kW　直流別切り

[Click to enlarge]
  • M: Motor
  • B: Brake
  • MC: Magnetic contactor
  • MCa: Auxiliary relay
  • OCR: Overcurrent relay
  • DM200D: DC rectifier
  • -N-: Protection element (varistor)
  • Note 1) The brake voltage is DC 90V (when AC 200V is input to DM200D).
  • Note 2) When using DC external wiring, the brake power supply module may be damaged depending on the wiring length, wiring method, relay type, etc., so connect a varistor between DC external wiring terminals. It is more effective to connect it near the brake power supply module (to the blue lead wire). Specific varistor model numbers are listed below, but equivalent varistors can also be used. For the DM200D, select a varistor voltage of 470V.
    Product name Manufacturer Model number
    When using the DM200D
    surge absorber Panasonic Corporation ERZV14D471
    Ceramic varistor Nippon Chemi-Con Corporation TND14V-471KB00AAA0
  • Note 3) Auxiliary relay (MCa) in *1 must have a contact capacity of AC200V7A or more (resistive load).
    *2 If an MC auxiliary contact or Auxiliary relay is used, the contact capacity must be AC200V10A or more (resistive load).
