technical data Reducer Small Gear Motor Handling

This section describes general handling of Gear Motor, Hypoid Motor, and Croise Motor.

For details, please refer to Instruction Manuals attached to the product.

Inspection upon receipt

When you receive the reducer, please check the following items.

If you have any problems or questions, please contact the store where you purchased the product.

  • (1) Check whether the output, reduction ratio, model number, voltage, etc. listed on the nameplate match those you require.
  • (2) Are all accessories (pressure vent, etc.) included?
  • (3) Is there any damage caused by transportation?
  • (4) Are there any loose screws or bolts?

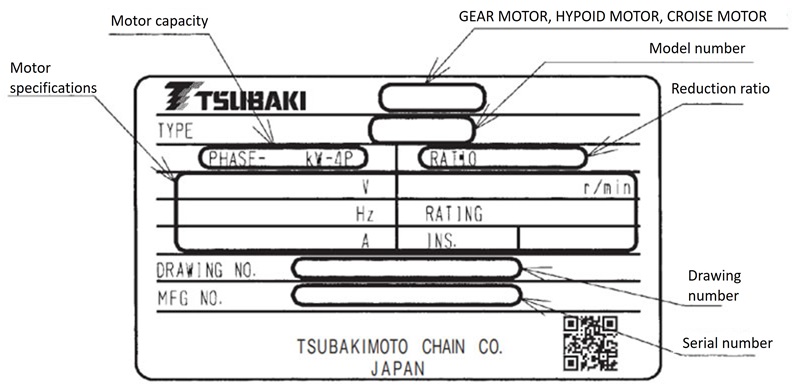

1. How to read the nameplate

0.1 ～ 0.4kW

銘板の見方

0.75 ～ 5.5kW

銘板の見方

When making an inquiry, please provide the following information: (1) TYPE (model number), (2) RATIO (reduction ratio), (3) MFG. NO. (manufacturing number), and (4) DRAWING NO. (drawing number).
