technical data Reducer Small Gear Motor Motor Specifications

Standard terminal box specification Gear Motor, Hypoid Motor, Croise Motor

1.Motor output: 0.1kW to 0.55kW [Resin]

	Terminal Dimensions	Terminal box position

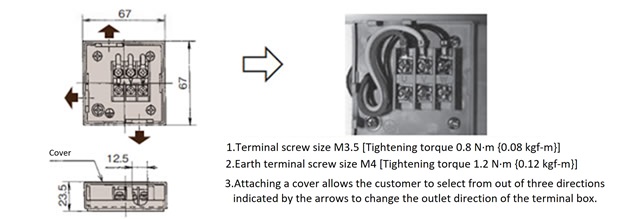

No brakes		Motor Output A P 0.1kW 64.5 81 0.2kW 102.5 81 0.4kW 102.5 81 0.55kW 102.5 81

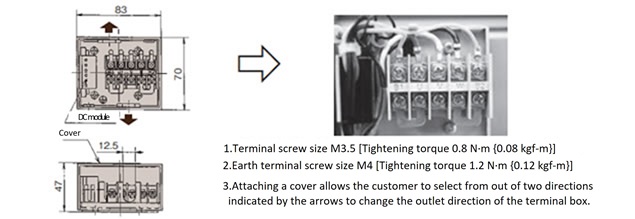

With brake		Motor Output A P 0.1kW 102.5 104.5 0.2kW 119.5 104.5 0.4kW 119.5 104.5 0.55kW 119.5 104.5

2. Motor output: 0.75kW [steel plate]

	Terminal Dimensions	Terminal box position
No brakes		Motor Output A B C P 0.75kW 116.5 135 98 140
With brake		Motor Output A B C P 0.75kW 161.5 135 98 140

3. Motor output: 1.5kW to 2.2kW [steel plate]

	Terminal Dimensions	Terminal box position
No brakes		Motor Output A B C P 1.5kW 106.5 98 102 160 2.2kW 106.5 98 102 160
With brake		Motor Output A B C P 1.5kW 191 135 98 155 2.2kW 191 135 98 155

4. Motor output: 3.7kW [steel plate]

	Terminal Dimensions	Terminal box position
No brakes
With brake

5. Motor output: 5.5kW [steel plate]

	Terminal Dimensions	Terminal box position
No brakes
With brake
