technical data Reducer Small Gear Motor Selection

Rectifier (DC rectifier)

DC rectifier is built-in and already connected to the motor lead wires. If DC external wiring circuit is used, connect it according to the wiring diagram.

If you specify this when ordering, we will ship the product with DC wiring connected.

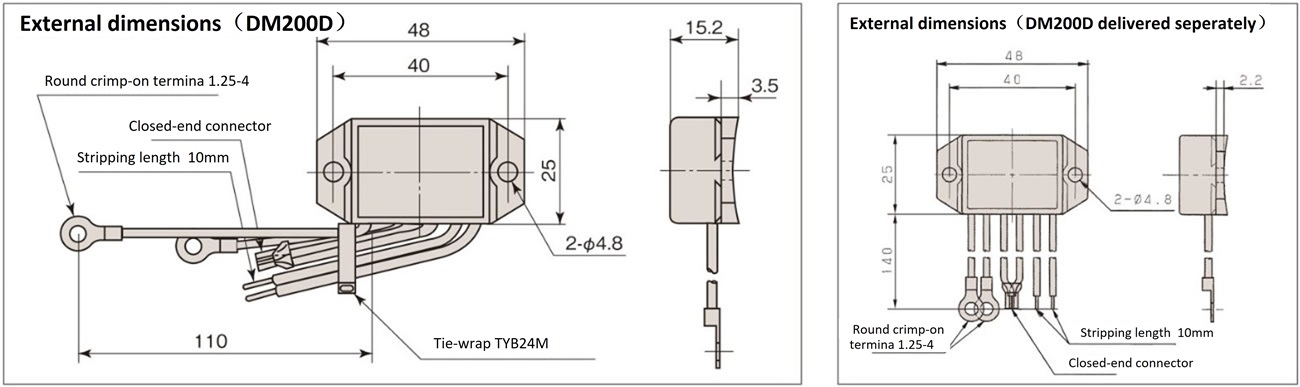

If you are using the DM200D inside a control panel or otherwise installing a separate DC rectifier, please specify this when placing your order and we will include the one shown in the diagram below (for separate installation).
