technical data Reducer DCBL Hypoid Motor Handling
This section describes general handling of DCBL Hypoid Motor drivers.
For details, please refer to Instruction Manuals attached to the product.

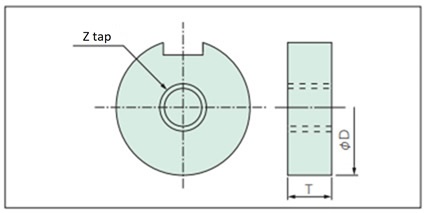

Recommended plate dimensions
| Model number | Output hollow shaft Hole Diameter |
Plate | Stop ring size |
||
|---|---|---|---|---|---|
| ΦD | T | Z | |||
| DCHM020-20H10～60 | Φ20 | 19.5 | 6 | M8 | C20 |
| DCHM040-30H10～50 | Φ30 | 29.5 | 9 | M12 | C30 |
| DCHM075-35H10～50 | Φ35 | 34.5 | 12 | M12 | C35 |
