Product box packing line conveyor end swing device
Before improvement
- - Products coming down the floor conveyor were manually packed into boxes.
- ・The conveyor height was fixed. The size of the boxes varied, so workers had to lift the products according to the size of the boxes.
problem
- - Lifting the product to a high position was a big burden on the worker.
solution

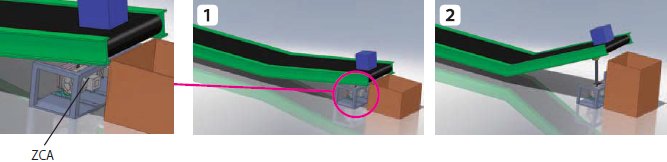

- ・The end of the conveyor has been modified to have a swinging mechanism, making it possible to adjust the height of the conveyor inlet according to the height of the box.
- - Compact: It can be installed directly under the conveyor.
- - Controllability: Direct lifting by chain makes positioning easier than commercially available simple pantograph types.
