Application Examples of Zip Zip Chain Lifter - 2. Mounted on an AGV

Application Examples

Mounted on AGV

  • Load capacity: 300kg
  • Lifting speed: 25m/min
  • ・Stroke: 1,250mm
    50sec/cycle

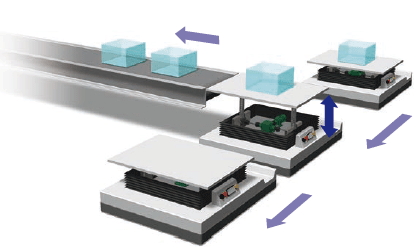

Mounted on AGV

Equipped to give the AGV not only horizontal movement of transported items but also lifting and lowering functions

Key points for recruitment

  • ・No hydraulic tank is required, and it can be installed compactly on top of the AGV
  • ・The workpiece can be raised and lowered with high precision, making it easy to transfer it to an existing conveyor.
