The drum rotation mechanism has been simplified, significantly reducing installation time.

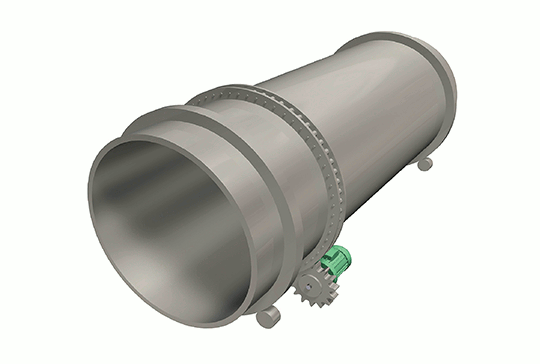

For the rotary drive of drum-type machines used in washing, mixing and sorting at food processing companies, we have adopted an external pin Pin gear drive unit, replacing the drive system in which a stainless steel chain is wrapped around a large sprocket.
| Problem | Industry | Purpose | Product group |
|---|---|---|---|
| Reduced man-hours, ensuring safety | Food/Beverage | Rotate and decelerate | Pin gear drive |
Problem
The large sprockets we previously used were manufactured using laser processing, and the process of removing distortion was difficult.
Additionally, stainless steel chains tend to stretch easily and there was a risk of them breaking.
Adopted products
Pin gear drive Unit
This is a gear rack with rollers that transmits power through the meshing of pin gears and pins (rollers).
It has the same function as a gear or rack and pinion, and is a transmission part that converts rotation into linear motion or rotation into another type of rotational motion by combining a pin-mechanical wheel and rack with a special gear.
Benefits of adopting the product
Although the cost increased compared to the parts used in the conventional method, the need to correct distortion on the sprocket was eliminated, there was no longer any risk of the stainless steel chain breaking due to stretching, and most importantly, Pin gear drive unit was easy to install on the device, so overall costs were reduced.
Pin gear drive unit is also available in stainless steel, so it can be used safely in food manufacturing machinery.
Comments from the person in charge
Installation is easy, there is no need to worry about the SUS chain stretching or breaking, and safety is ensured.
We would like to continue using this product when manufacturing drum-type washing machines and mixers.
Tsubaki will do its utmost to support you in solving any problems you may have.
Please feel free to contact us with any concerns you may have.
