天井部ユニットをワイヤー昇降方式よりも省スペースに

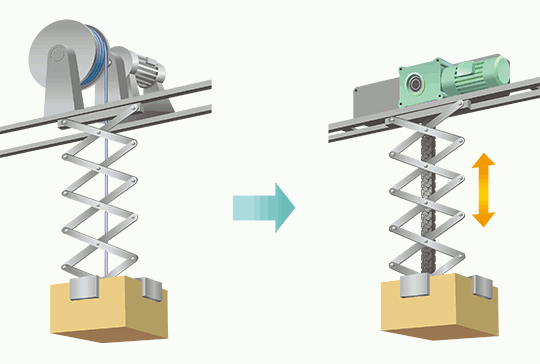

コンベヤで流れてくる製品をパレットに移載する吊り下げユニットの昇降をワイヤー方式からジップチェーンアクチュエータに置き換えることで高さ方向の省スペース化を実現することができました。
| Problem | Industry | Purpose | Product group |
|---|---|---|---|
| 省スペース | Food/Beverage | Move linearly | Linear Actuator |
Problem
従来はワイヤーを使った吊り下げ方式を採用していましたが、ワイヤーを巻き取る機構が必要で吊り下げユニットの天井部分にスペースの確保が必要なため、天井が低いエンドユーザ様へも装置を採用いただけるよう、コンパクトな昇降機構を探していました。
Adopted products
Zip Chain Actuator
The interlocking chain (Zip Chain) is a chain developed exclusively by our company in which two chains interlock like a zipper to form one strong rod that can be "pushed and pulled."
Zip Chain Actuator is a completely new linear actuator that uses this mechanism.
Zip Chain can be stored in a compact case, achieving overwhelming space savings compared to conventional linear actuator.
It is compatible with high-speed, high-frequency operation and uses significantly less power than hydraulic or pneumatic cylinders.
It is possible to stop at multiple points with high precision, and the installation direction is free.
Benefits of adopting the product
ジップチェーンアクチュエータを採用したことで吊り下げユニットを昇降させるために必要な機構がコンパクトになり、課題としていた装置の天井部分の省スペース化が実現できました。
これにより装置全体の高さを抑えることができ、高さの制限があったエンドユーザ様に採用いただくことも可能になりました。
Tsubaki will do its utmost to support you in solving any problems you may have.
Please feel free to contact us with any concerns you may have.
