ピットレスで長ストロークの昇降を実現
多種のエンジン部品をサブラインからメインラインへ搬送する箇所にモノレール式搬送システムの導入を検討していたタイミングで入口・出口の昇降機構にジップチェーンアクチュエータの2台使い方式を採用しました。
| Problem | Industry | Purpose | Product group |
|---|---|---|---|
| 長ストローク | Automotive industry | Move linearly | Linear Actuator |
Problem
モノレール搬送システムへの受け渡しには3m近いストロークが必要でしたが、設置スペースの関係上できるだけコンパクトな製品を探していました。
Adopted products
Zip Chain Actuator
The interlocking chain (Zip Chain) is a chain developed exclusively by our company in which two chains interlock like a zipper to form one strong rod that can be "pushed and pulled."
Zip Chain Actuator is a completely new linear actuator that uses this mechanism.
Zip Chain can be stored in a compact case, achieving overwhelming space savings compared to conventional linear actuator.
It is compatible with high-speed, high-frequency operation and uses significantly less power than hydraulic or pneumatic cylinders.
It is possible to stop at multiple points with high precision, and the installation direction is free.
Benefits of adopting the product

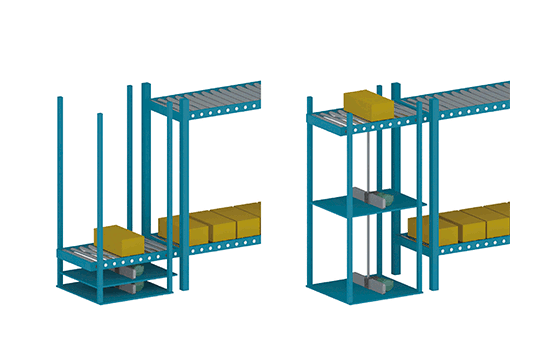

ジップチェーンアクチュエータを使用することで長ストロークでもピットを設けずにリフタの設置ができました。
さらにカタログでも紹介されていたジップチェーンアクチュエータの2台直列使い方式を採用することで、標準ストロークのラインナップから選定できました。
Tsubaki will do its utmost to support you in solving any problems you may have.
Please feel free to contact us with any concerns you may have.
