pilot bore series engineering plastic type Major Specifications

RS60-1B□T-P


[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.

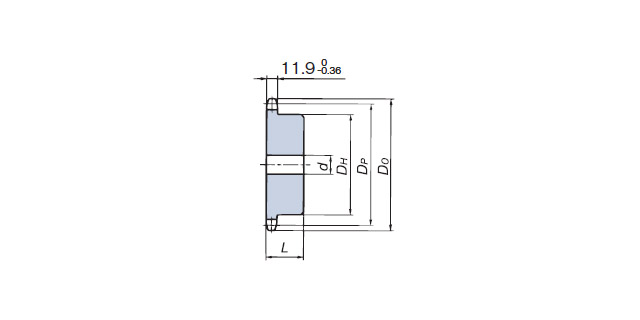

PDF outline drawing

Please refer to the table below

Model number display example

RS60 - 1 B 21T - P
｜
Size		 ｜
No. of strands		 ｜
Hub type		 ｜
Number of teeth		 ｜
Specification Code
SS: Stainless steel
SST: Stainless steel type, wear-resistant
P: Engineering plastic

Main dimensions, price, delivery

Model number Number of teeth Pitch circle
diameter
DP
mm		 Outer diameter
DO
mm		 Pilot bore diameter
d
mm		 Maximum
shaft bore diameter
d
mm		 Hub
Outer diameter
DH
mm		 Hub
length
L
mm		 Estimated
mass
kg		 PDF
drawing		 標準価格 Delivery
RS60-1B13T-P 13 79.60 88 15.9 30 57 32 0.12 PDF Please contact us Please contact us
RS60-1B14T-P 14 85.61 93 15.9 32 62 32 0.14 PDF Please contact us Please contact us
RS60-1B15T-P 15 91.62 99 15.9 35 68 32 0.16 PDF Please contact us Please contact us
RS60-1B16T-P 16 97.65 107 15.9 42 73 32 0.19 PDF Please contact us Please contact us
RS60-1B17T-P 17 103.67 113 15.9 50 80 32 0.21 PDF Please contact us Please contact us
RS60-1B18T-P 18 109.71 119 15.9 52 85 40 0.30 PDF Please contact us Please contact us
RS60-1B20T-P 20 121.78 132 15.9 60 95 40 0.38 PDF Please contact us Please contact us
RS60-1B22T-P 22 133.86 144 15.9 65 110 40 0.51 PDF Please contact us Please contact us
RS60-1B24T-P 24 145.95 156 18 70 120 40 0.57 PDF Please contact us Please contact us
RS60-1B25T-P 25 151.99 162 18 70 120 40 0.59 PDF Please contact us Please contact us
RS60-1B26T-P 26 158.04 168 18 70 120 40 0.62 PDF Please contact us Please contact us
RS60-1B28T-P 28 170.14 180 18 70 120 40 0.65 PDF Please contact us Please contact us
RS60-1B30T-P 30 182.25 193 18 70 120 40 0.70 PDF Please contact us Please contact us
