pilot bore series stainless steel type Major Specifications
RS50-1B□T-SS
[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
PDF outline drawing
Please refer to the table below
DXF Drawing and 3D CAD data
Please refer to the table below
| ※ | CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries about CAD data and PARTcommunity, please contact Cadenas Web2CAD. Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032 |
Model number display example
| RS50 | - | 1 | B | 21T | - | SS |
| ｜ Size |
｜ No. of strands |
｜ Hub type |
｜ Number of teeth |
｜ Specification Code SS: Stainless steel SST: Stainless steel type, wear-resistant P: Engineering plastic |
||

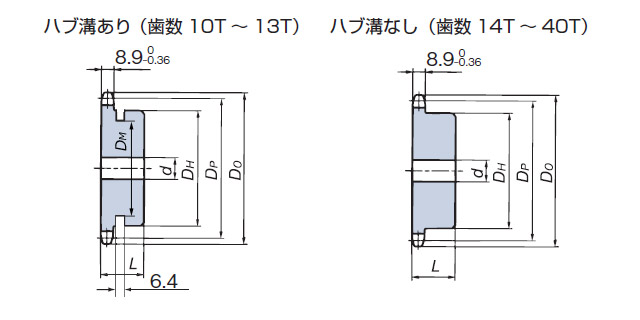

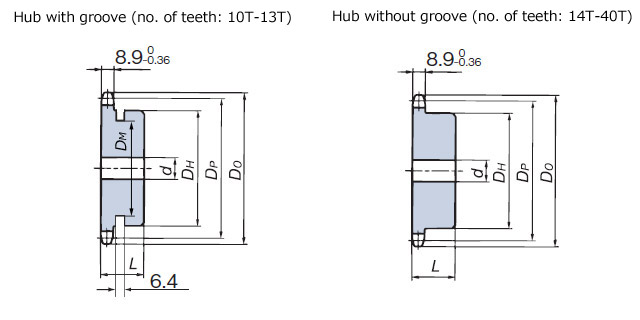

Main dimensions, price, delivery
| Model number | Number of teeth | Pitch circle diameter DP mm |
Outer diameter DO mm |
Pilot bore diameter d mm |
Maximum shaft bore diameter d mm |
Hub Outer diameter DH mm |
Hub length L mm |
Hub groove Outer diameter DM mm |
Estimated mass kg |
DXF Drawing 3D CAD data PDF Drawings |
標準価格 | Delivery | Fit bore (finished bores) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RS50-1B10T-SS | 10 | 51.37 | 58 | 9.5 | 22 | 40 | 25 | 32 | 0.27 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B11T-SS | 11 | 56.35 | 64 | 12.7 | 25 | 46 | 25 | 37 | 0.33 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B12T-SS | 12 | 61.34 | 69 | 12.7 | 32 | 51 | 25 | 42 | 0.41 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B13T-SS | 13 | 66.33 | 74 | 12.7 | 32 | 51 | 25 | 47 | 0.46 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B14T-SS | 14 | 71.34 | 79 | 12.7 | 32 | 52 | 25 | --- | 0.52 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B15T-SS | 15 | 76.35 | 84 | 12.7 | 35 | 57 | 25 | --- | 0.62 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B16T-SS | 16 | 81.37 | 89 | 12.7 | 40 | 62 | 25 | --- | 0.72 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B17T-SS | 17 | 86.39 | 94 | 12.7 | 45.5 | 67 | 25 | --- | 0.83 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B18T-SS | 18 | 91.42 | 100 | 12.7 | 47.5 | 72 | 28 | --- | 1.0 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B19T-SS | 19 | 96.45 | 105 | 12.7 | 47.5 | 73 | 28 | --- | 1.1 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B20T-SS | 20 | 101.48 | 110 | 12.7 | 47.5 | 73 | 28 | --- | 1.2 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B21T-SS | 21 | 106.51 | 115 | 15.9 | 47.5 | 73 | 28 | --- | 1.2 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B22T-SS | 22 | 111.55 | 120 | 15.9 | 47.5 | 73 | 28 | --- | 1.3 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B23T-SS | 23 | 116.59 | 125 | 15.9 | 47.5 | 73 | 28 | --- | 1.3 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B24T-SS | 24 | 121.62 | 130 | 15.9 | 47.5 | 73 | 28 | --- | 1.4 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B25T-SS | 25 | 126.66 | 135 | 15.9 | 47.5 | 73 | 28 | --- | 1.5 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B26T-SS | 26 | 131.70 | 140 | 18 | 48 | 73 | 28 | --- | 1.5 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B27T-SS | 27 | 136.74 | 145 | 18 | 48 | 73 | 28 | --- | 1.5 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B28T-SS | 28 | 141.79 | 150 | 18 | 48 | 73 | 28 | --- | 1.6 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B30T-SS | 30 | 151.87 | 161 | 18 | 48 | 73 | 28 | --- | 1.8 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B32T-SS | 32 | 161.96 | 171 | 18 | 48 | 73 | 28 | --- | 1.9 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B34T-SS | 34 | 172.05 | 181 | 18 | 48 | 73 | 28 | --- | 2.1 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B35T-SS | 35 | 177.10 | 186 | 18 | 48 | 73 | 28 | --- | 2.2 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B36T-SS | 36 | 182.15 | 191 | 23 | 55 | 83 | 35 | --- | 2.7 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B38T-SS | 38 | 192.24 | 201 | 23 | 55 | 83 | 35 | --- | 2.9 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
| RS50-1B40T-SS | 40 | 202.33 | 211 | 23 | 55 | 83 | 35 | --- | 3.1 | DXF・3DCAD | Please contact us | Please contact us | Search Fit Bore | |
