pilot bore series engineering plastic type Major Specifications

RS35-1B□T-P


[Click to enlarge]

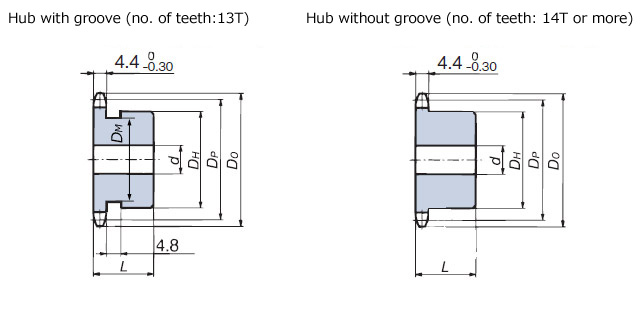

PDF outline drawing

Please refer to the table below

Model number display example

RS35 - 1 B 21T - P
｜
Size		 ｜
No. of strands		 ｜
Hub type		 ｜
Number of teeth		 ｜
Specification Code
SS: Stainless steel
SST: Stainless steel type, wear-resistant
P: Engineering plastic

Main dimensions, price, delivery

Model number Number of teeth Pitch circle
diameter
DP
mm		 Outer diameter
DO
mm		 Pilot bore diameter
d
mm		 Maximum
shaft bore diameter
d
mm		 Hub
Outer diameter
DH
mm		 Hub
length
L
mm		 Hub groove
Outer diameter
DM
mm		 Estimated
mass
kg		 PDF
drawing		 Price Delivery
RS35-1B13T-P 13 39.80 44 9.5 14 32 20 28 0.02 PDF Please contact us Please contact us
RS35-1B14T-P 14 42.80 46 9.5 15 30 20 --- 0.02 PDF Please contact us Please contact us
RS35-1B15T-P 15 45.81 51 9.5 17 35 20 --- 0.02 PDF Please contact us Please contact us
RS35-1B16T-P 16 48.82 53 9.5 19 37 20 --- 0.03 PDF Please contact us Please contact us
RS35-1B17T-P 17 51.84 57 9.5 22 41 20 --- 0.03 PDF Please contact us Please contact us
RS35-1B18T-P 18 54.85 60 12.7 22 44 20 --- 0.04 PDF Please contact us Please contact us
RS35-1B20T-P 20 60.89 66 12.7 27 50 20 --- 0.05 PDF Please contact us Please contact us
RS35-1B22T-P 22 66.93 72 12.7 28 53 20 --- 0.06 PDF Please contact us Please contact us
RS35-1B24T-P 24 72.97 78 12.7 32 60 22 --- 0.08 PDF Please contact us Please contact us
RS35-1B25T-P 25 76.00 81 12.7 32 60 22 --- 0.08 PDF Please contact us Please contact us
RS35-1B26T-P 26 79.02 83 12.7 35 65 22 --- 0.09 PDF Please contact us Please contact us
RS35-1B28T-P 28 85.07 90 12.7 40 70 22 --- 0.10 PDF Please contact us Please contact us
RS35-1B30T-P 30 91.12 96 12.7 42 75 22 --- 0.12 PDF Please contact us Please contact us
