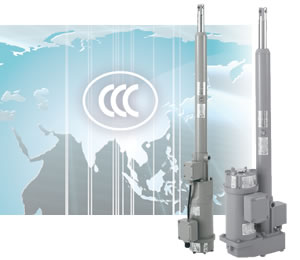

Power Cylinder G Series CCC Certified Quick delivery
All sizes available with Quick delivery and CCC certification
As of June 1, 2014, all sizes of Tsubaki Power Cylinder G Series (LPG) are now available with CCC certification and Quick delivery.
The standard delivery has been significantly shortened delivery 14 days (our standard delivery).
The Tsubaki Power Cylinder G Series has been certified by the China Import and Export Product Quality Certification Center (RCQC).
[National standard: GB12350]
[What is CCC?]
CCC is a compulsory certification system in China, and in order to export small-output electric motors of 1.1kW or less to China, they must display the CCC mark, which certifies compulsory certification.
Compatible models: All models of Power Cylinder G series
- ・Applicable motor capacity: 0.1-0.4kW
- ・Specifications: All outdoor specifications (IP55), with brake
- - Usable temperature range: -15 to 40°C (no condensation)
- Motor rating: S2 25min
- - Heat resistance class: E
[Notes]
*For lots of 5 or more units, please contact us.
*Please note that we may not be able to meet the stated delivery due to production conditions or other reasons.
CCC certified product model number example
(1) Power Cylinder (2) G series: LPGA = basic type, LPGB = with Torque Limiter (parallel type only), LPGC = with Thrust detection limit switch
(3) Thrust: 070=700N{71.4kNf}, 100=1.00kN{102kNf}, 150=1.50kN{153kNf}, 300=3.00kN{306kNf} (4) Speed: L, M, H, U
(5) Body shape: T = straight, K = parallel (6) Nominal stroke: [Example] 1 = 100 mm, 3 = 300 mm, 5 = 500 mm, 10 = 100 mm
(7) N3: 200V class CCC compatible, VN3: 380V/50Hz CCC compatible
(8) Options: M = Rod rotation prevention specification, L = Stroke adjustment external LS (2 pieces), K2/K4 = Position detection internal LS, P = Potentiometer, R = Rotary encoder
C = Clevis fitting, I = I-shaped End fitting, J = Bellows
* Be sure to select the stroke taking into consideration the coasting amount.
*Rod anti-rotation mechanism for LPGC type cannot be manufactured.
*Clevis fittings cannot be combined with K2, K4, P, or R.
