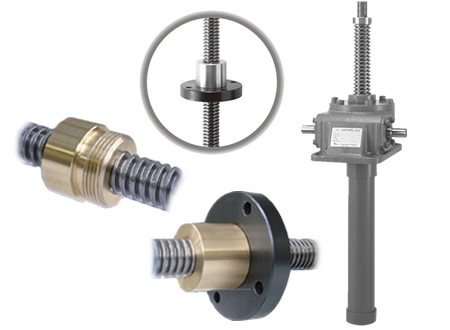

Linipower Jack Trapezoidal Trapezoidal Screw Type Stainless Steel Screw Specification
Austenitic stainless steel screw shafts are now standardized for two models, JWM025 and JWM050.
We manufacture original Trapezoidal Screw using stainless steel.
- Advantages of Linipower Jack Trapezoidal Screw type stainless steel screw specification
-
- - Austenitic stainless steel provides excellent corrosion resistance.
- -we produce with Quick delivery.
- - Ideal for equipment that requires rust prevention on the screw shaft, opening and closing water gates and various gates, environmental equipment, paper-making machines, etc.
*JWM025-S can be manufactured with a stroke of up to 1200mm, and JWM050-S can be manufactured with a stroke of up to 1500mm.
*Please contact us for capacity and detailed specifications.
*Left-handed specifications are also available. Please contact us for details.
*Please consult us about delivery.
Trapezoidal Screw type Stainless steel screw specifications Application examples
Ideal for opening and closing various gates. *The jack is not designed for outdoor use. Please take waterproof measures such as installing a cover.
Horizontal sliding gate
Swing gate
Tumble gate

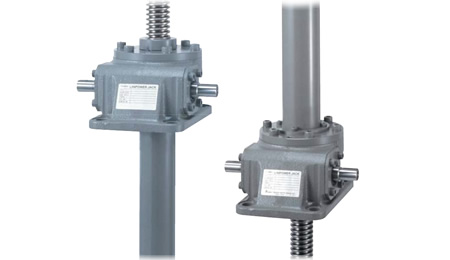

Trapezoidal Screw type stainless steel screw specifications Model number example
(1) JW: Linipower Jack (2) M: Trapezoidal Screw type (3) Frame number: 025, 050 (4) U: For lifting, D: For hanging
(5) S: Basic type specification, M: Screw shaft anti-rotation specification, R: Traveling nut specification (6) Worm speed ratio: H = 6, L = 24
(7) Stroke: 1 = 100, 3 = 300, 6 = 600, 10 = 1000 (8) Various options (9) S: Stainless steel screw specifications (10) TK: Special type (quote required)
Trapezoidal Screw type stainless steel screw specifications custom-made
For stainless steel screw specifications, the following special models are also available. Please contact us.
- Input shaft: Electroless nickel plating
- Screw shaft cover: Steel pipe
- Painting: Various special paints
- With bellows
