Linipower Jack Trapezoidal Screw Type Left-Hand Thread Specification
We have significantly shortened delivery compared to previous models, and now offer Quick delivery for both right-hand and left-hand thread specifications.
What is a left-hand thread specification?
The input rotation direction is the same, but the screw moves in the opposite direction to the right-hand screw specification.
- Advantages of left-hand thread specifications
-
- - If multiple jacks are used with one motor, or if the input rotation direction of the jacks is not the same due to installation, the left-hand thread specification can solve the problem without any problems.
- -Ideal for steel equipment and floodgate applications.

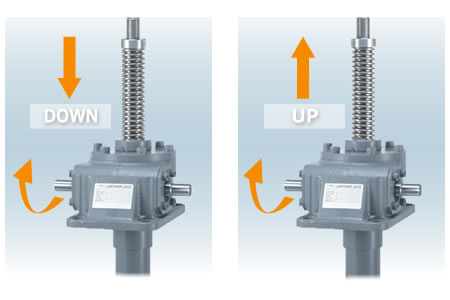

Left photo: Right-hand thread specification
Right photo: Left-handed screw specification
Standardized Response Criteria delivery 3-week response start
- Released models
- Linipower Jack Trapezoidal Screw Type 2.5t, 5t Type
- Model number
- JWML025, JWML050
- price
- This item requires a quote. Please request a quote from your nearest distributor or retailer.
Trapezoidal Screw type left-hand screw specification Model number example
(1) JW: Linipower Jack (2) M: Trapezoidal Screw type (3) L: Left-hand screw specification (Right-hand screw specification is left blank) (4) Frame number: 025 = 24.5kN {2.5tf}, 050 = 49.0kN {5tf}
(5) U: For lifting, D: For hanging (6) S: Basic type, M: Screw shaft anti-rotation type, R: Traveling nut type
(7) Worm speed ratio: H = 6, L = 24 (8) Stroke: 1 = 100, 3 = 300, 6 = 600, 10 = 1000 (9) Various options
(10) TK: Special (Quote Item)
