Shaft arrangement and rotation
| Lateral 1-shaft type | Lateral 2-shaft type | |||||||
|---|---|---|---|---|---|---|---|---|
| Cross 2 axes type |

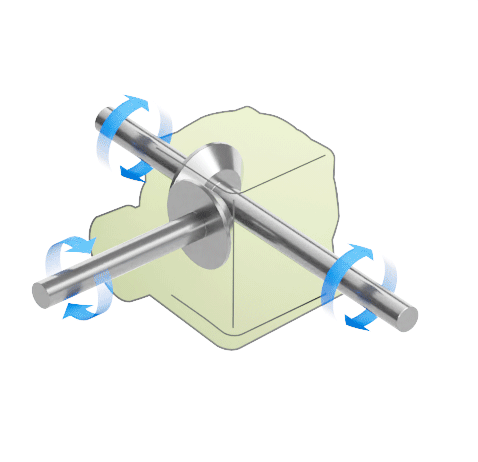

1-LR  |

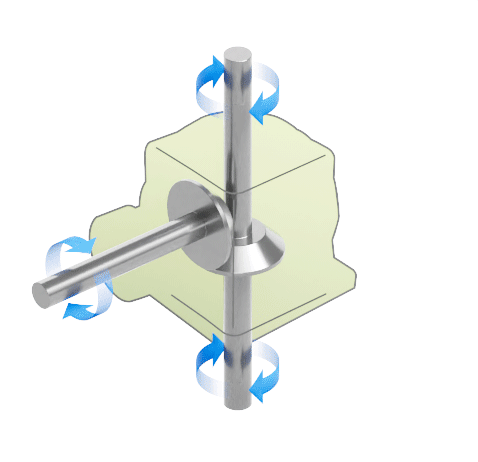

1-UD  |

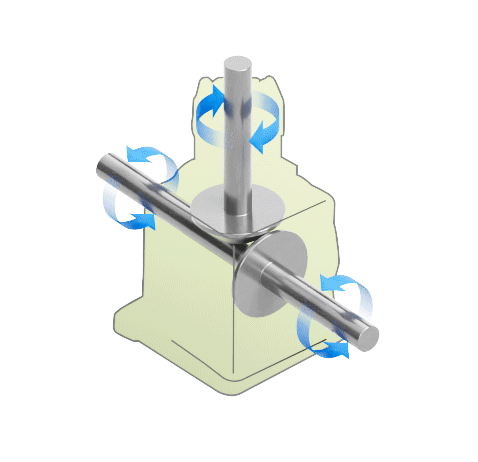

U-LR  |

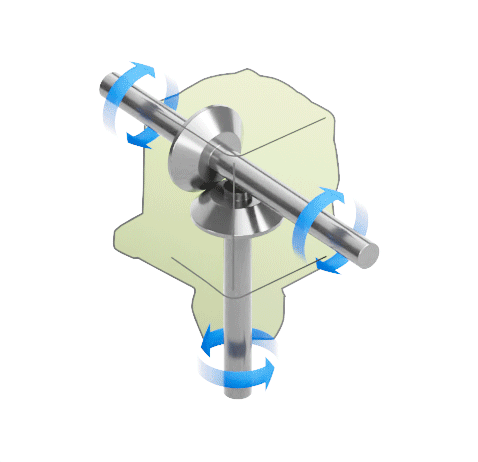

D-LR  |

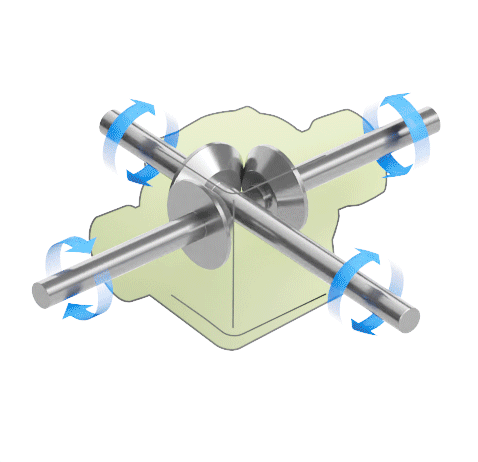

1-1-LR  |

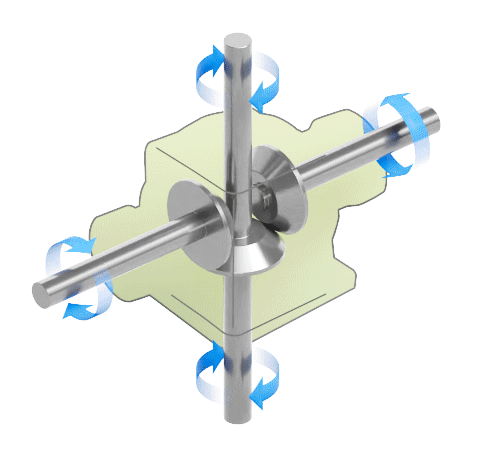

1-1-UD  |

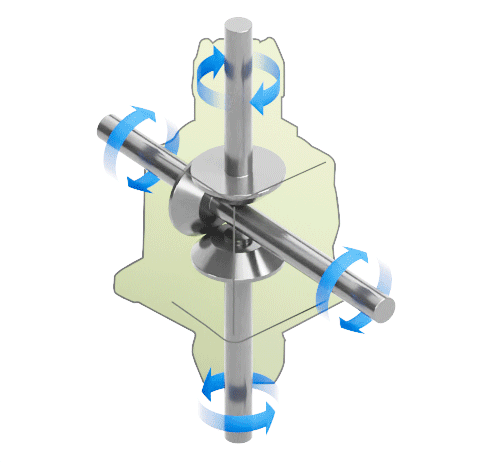

U-D-LR  |
|

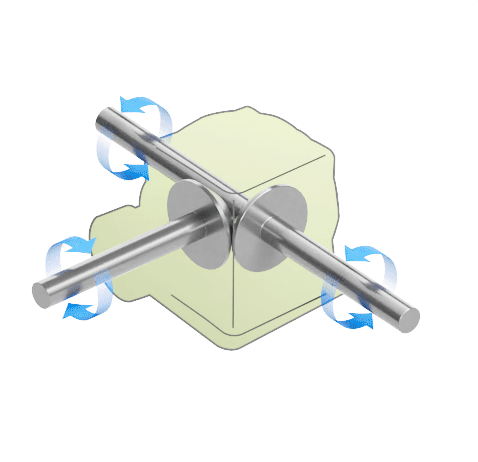

1-LR-O  |

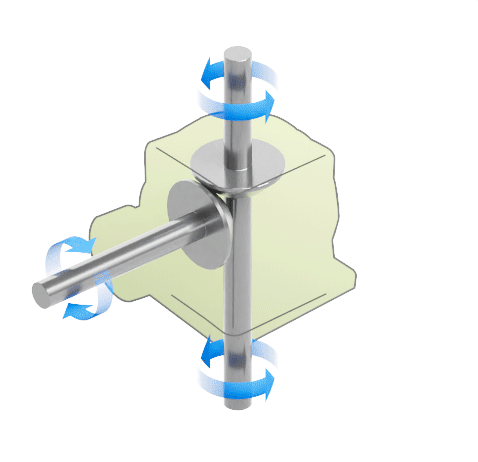

1-UD-O  |

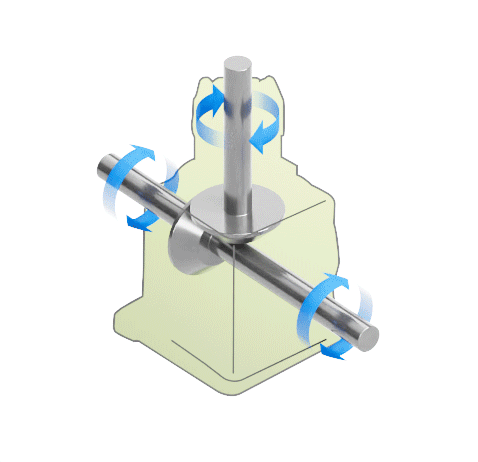

U-LR-O  |

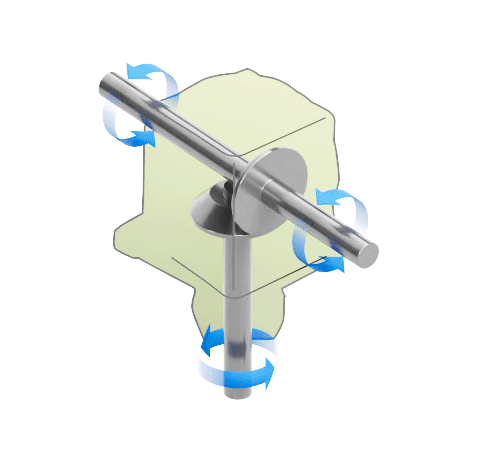

D-LR-O  |
1-1-LR-O  |

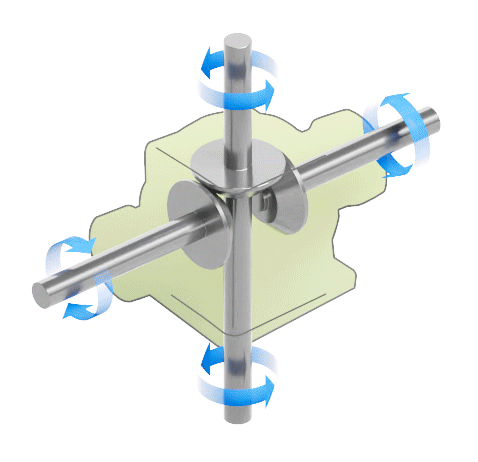

1-1-UD-O  |

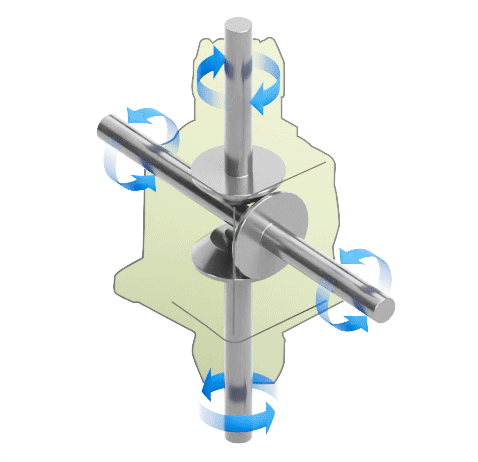

U-D-LR-O  |
||
| Cross 1 axis type |

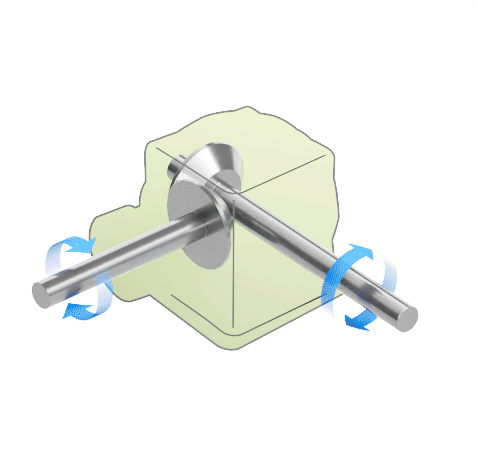

1-R  |

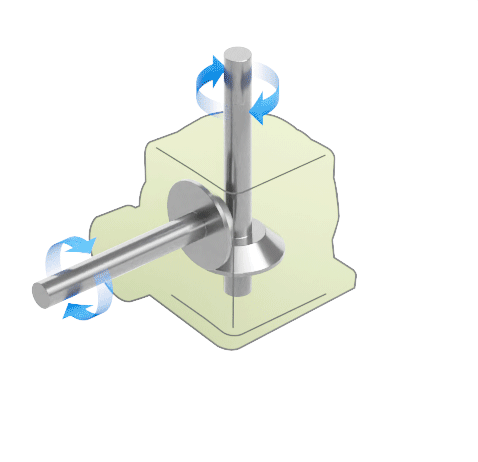

1-U  |

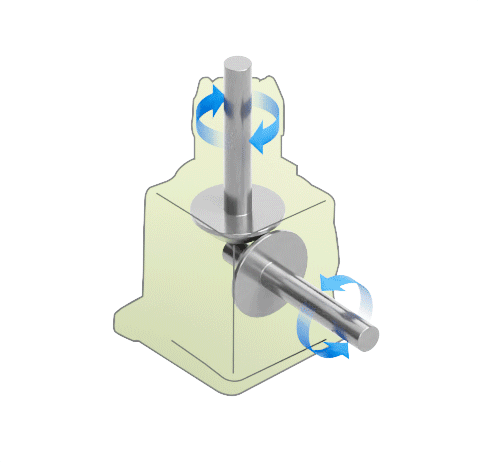

U-R  |

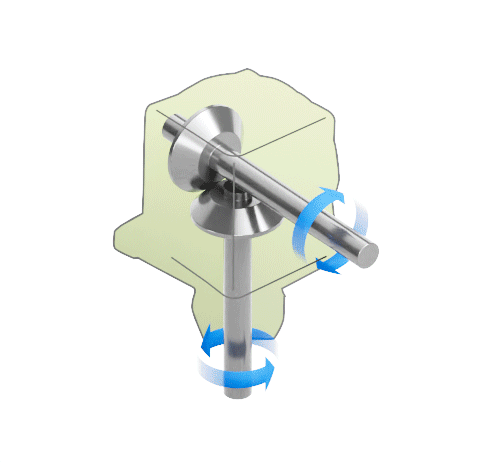

D-R  |

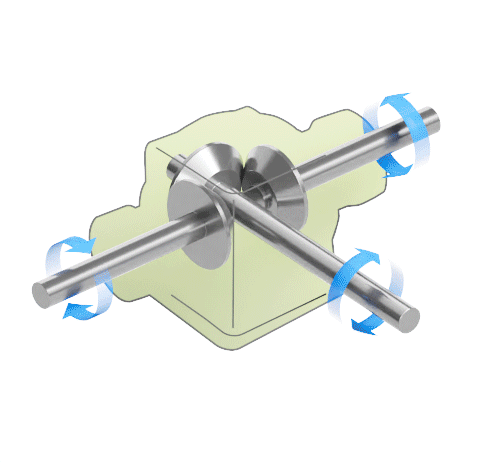

1-1-R  |

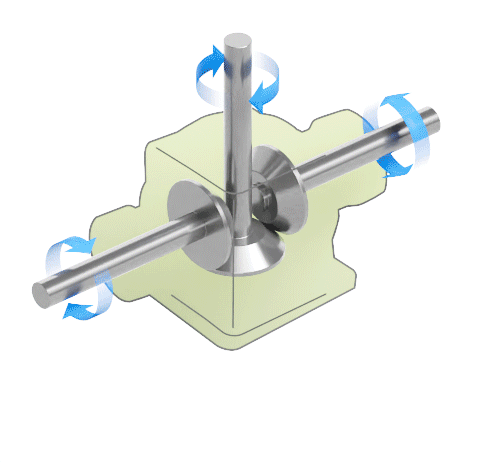

1-1-U  |

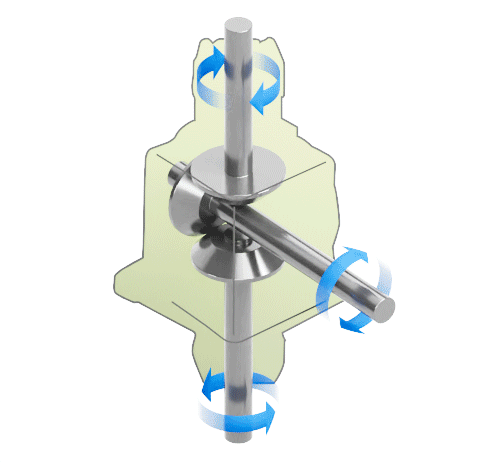

U-D-R  |
|

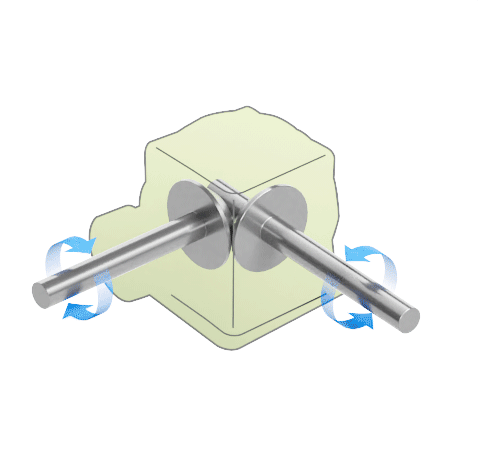

1-R-O  |

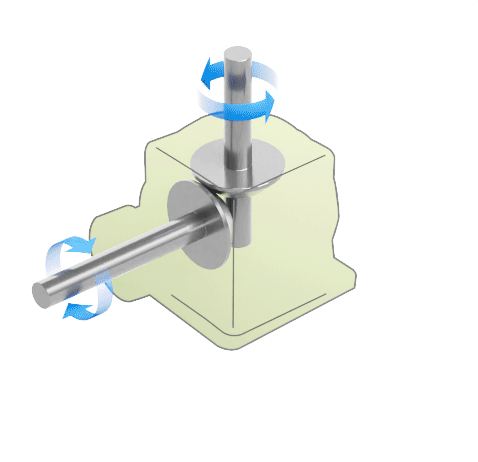

1-U-O  |

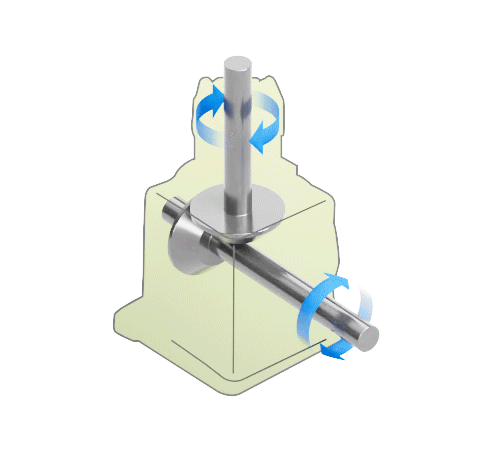

U-R-O  |

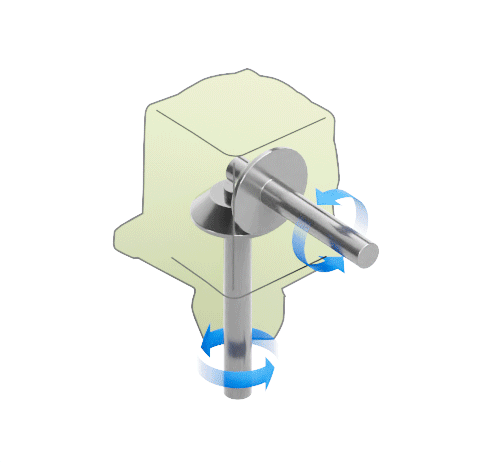

D-R-O  |

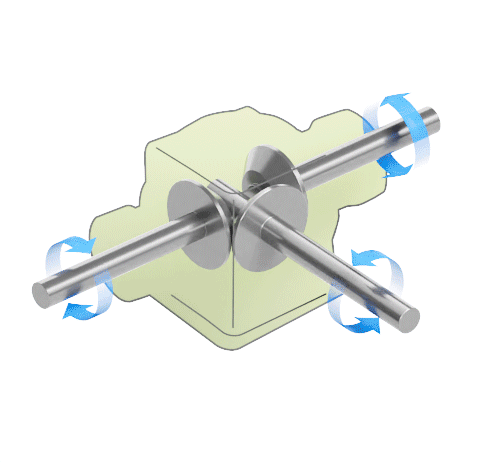

1-1-R-O  |

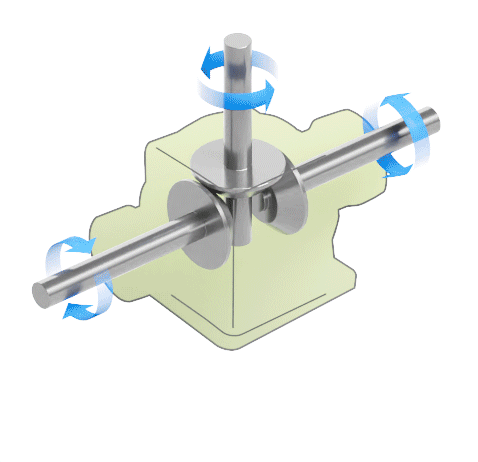

1-1-U-O  |

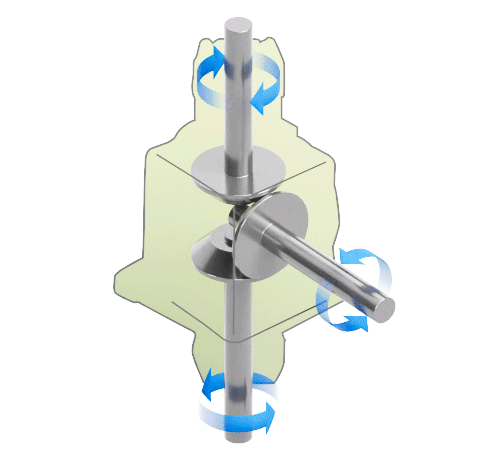

U-D-R-O  |
||

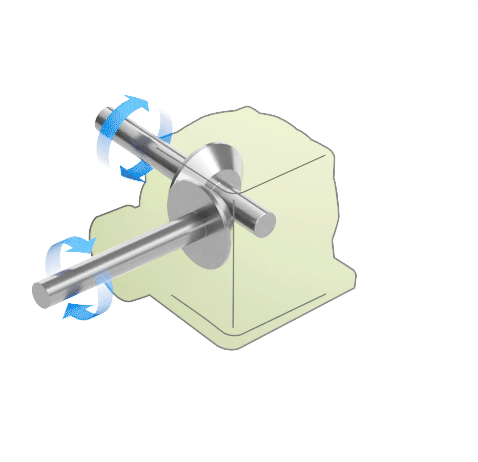

1-L  |

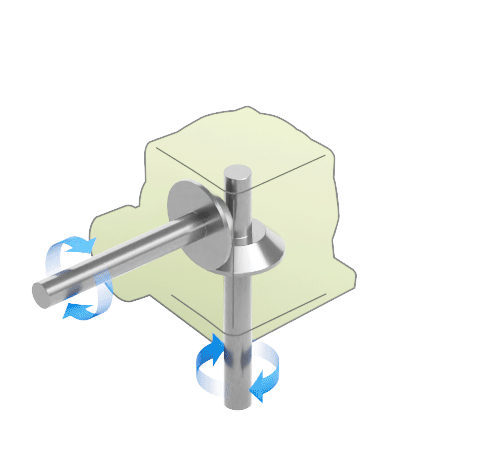

1-D  |

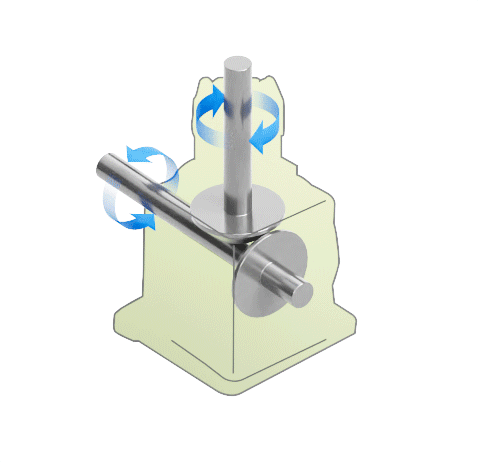

U-L  |

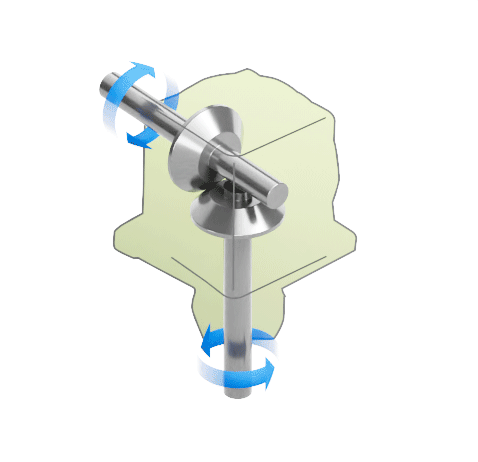

D-L  |

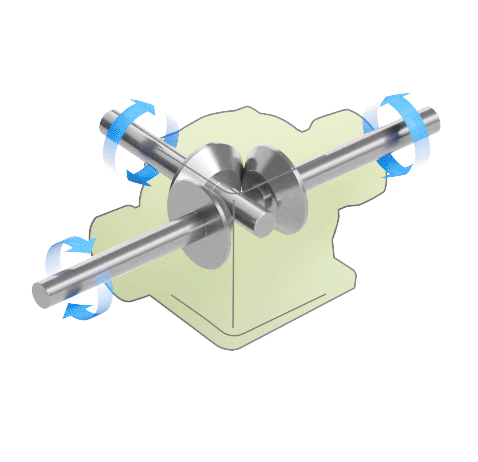

1-1-L  |

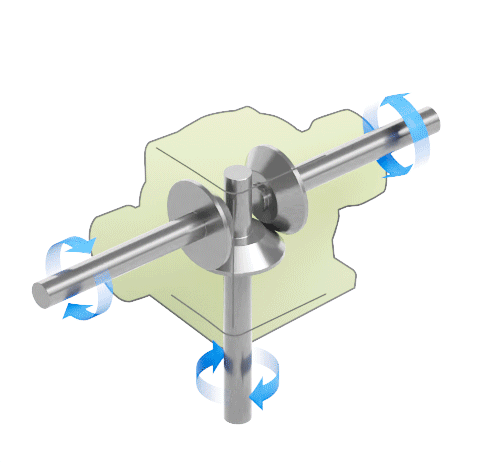

1-1-D  |

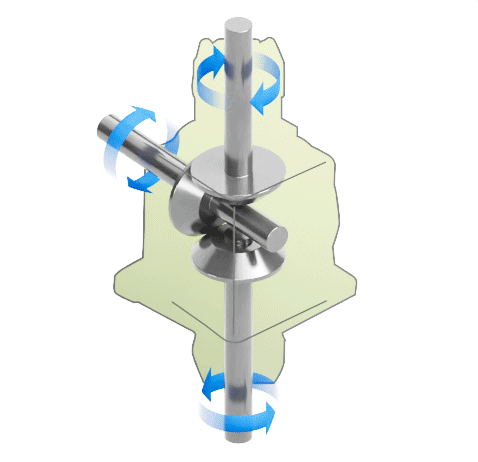

U-D-L  |
||

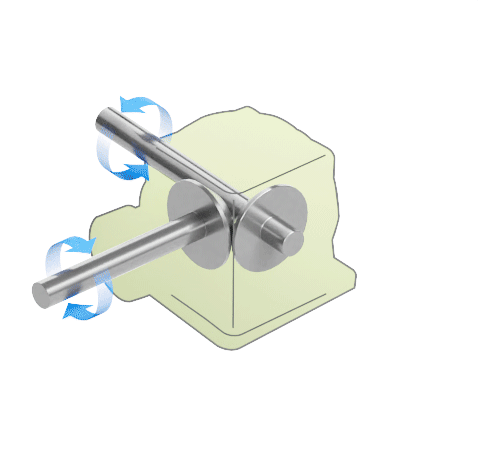

1-L-O  |

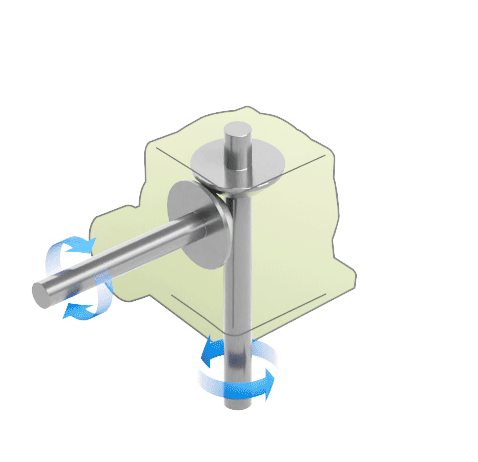

1-D-O  |

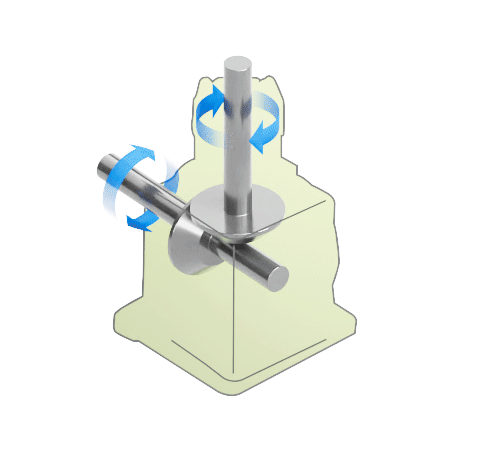

U-L-O  |

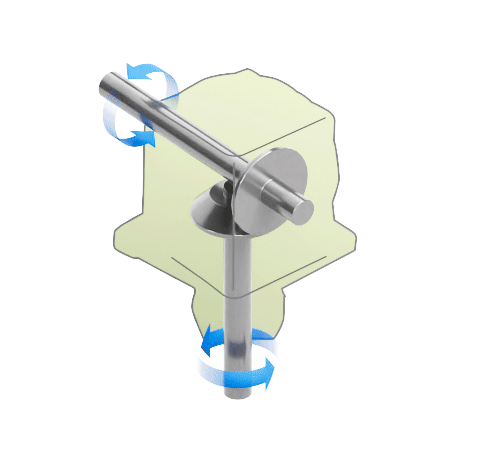

D-L-O  |

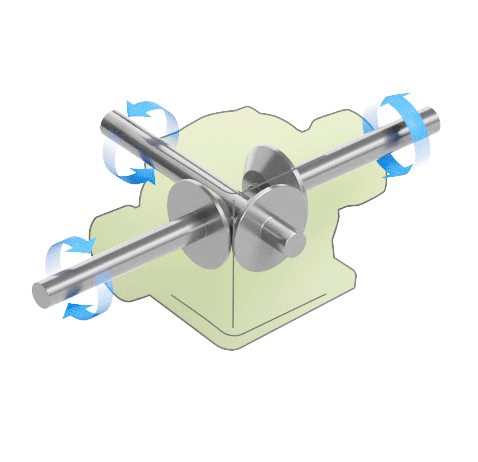

1-1-L-O  |

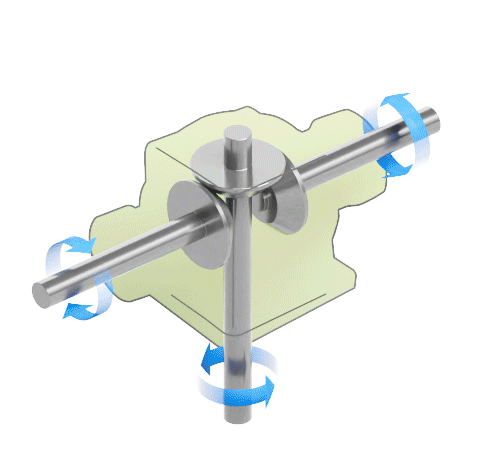

1-1-D-O  |

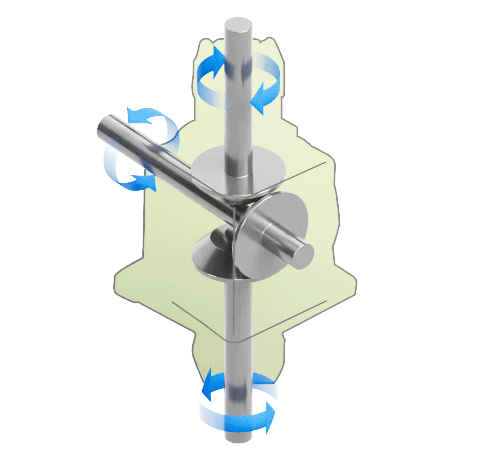

U-D-L-O  |
||
・The shaft arrangements below have the same rotational relationship. However, please note that the positions of the plug, oil gauge, and nameplate are different.
U-LR＝U-LR-O, UR＝ULO, UL＝URO, D-LR＝D-LR-O, DR＝DLO, DL＝DRO
1-1-LR=1-1-LR-O, 1-1-R=1-1-LO, 1-1-L=1-1-RO, UD-LR=UD-LR-O, UDR=UDLO, UDL=UDRO
